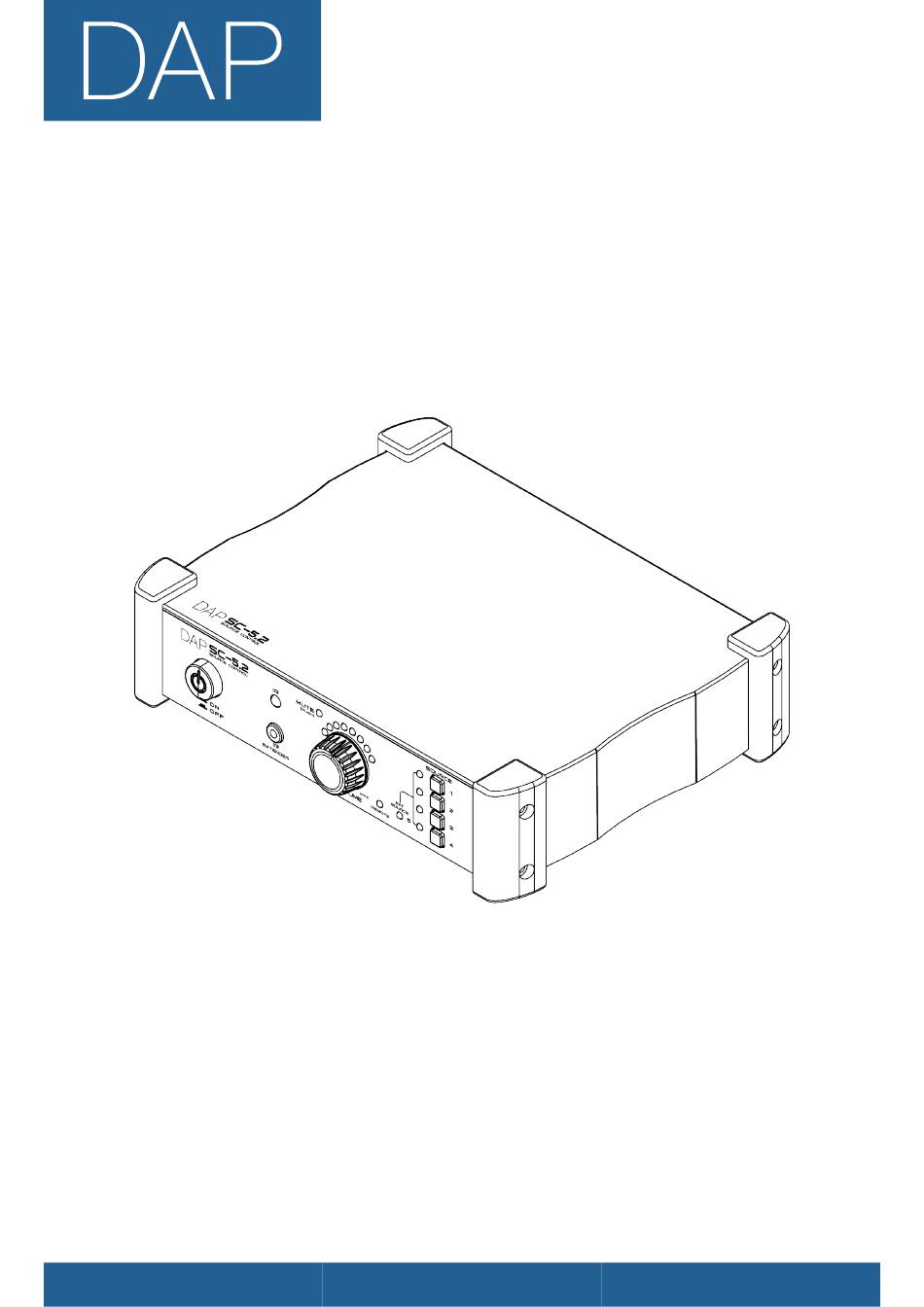

- Page 1 USER MANUAL ENGLISH V1.0 SC-5.2 Source Control Product code: D1540...
- Page 2 SC-5.2 Source Control Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
SC-5.2 Source Control Table of contents 1. Introduction ............................ -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • DAP SC-5.2 Source Control • • Screwless terminal block plugs (2 pairs) • •... -
Page 5: Symbols And Signal Words
SC-5.2 Source Control 1.4. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 6: Safety
SC-5.2 Source Control Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions... -
Page 7: Requirements For The User
SC-5.2 Source Control • • Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device. Attention General safety • • Do not shake the device. Avoid brute force when installing or operating the device. -
Page 8: Description Of The Device

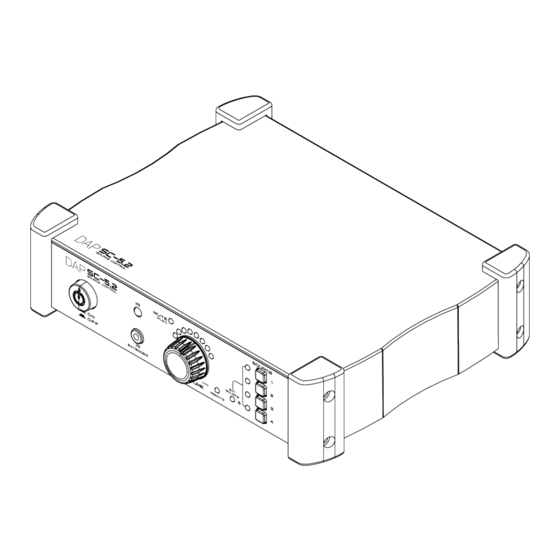

Description of the Device The SC-5.2 Source Control is a stereo audio input selector. The device can be operated manually, with the included IR remote control or with an optional wall panel (SC-WP1). The device is equipped with 3 unbalanced audio line inputs (with gold-plated RCA connectors), 1 balanced audio line input with a terminal plug (suitable for long cable runs) and a summed mono audio input for the wall panel (SC-WP1). -
Page 9: Product Specifications
SC-5.2 Source Control 3.3. Product Specifications Model: SC-5.2 Source Control Inputs: Stereo inputs 4 Stereo input connector RCA unbalanced 3,5 mm / Terminal block Balanced stereo input maximum level 15,5 dBu Stereo input impedance 300000 Ω Outputs: Main outputs 1 Main output connector... -
Page 10: Dimensions
SC-5.2 Source Control 3.5. Dimensions Figure 4 Figure 5 Product code: D1540... -
Page 11: Installation And Setup
SC-5.2 Source Control Installation and Setup 4.1. Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. 4.2. Ambient Conditions • • The device can be used only indoors. •... -
Page 12: Connecting Devices
SC-5.2 Source Control 4.4. Connecting Devices 4.4.1. Connecting Source Devices You can connect 4 stereo audio sources to the device: Source 1, Source 2, Source 3, and Source 4 through the input connections. Note: If you want to connect an external 5 source, you need to use a wall panel (see 4.4.3. -
Page 13: Connecting To Power Supply
SC-5.2 Source Control 4.5. Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 14: Control Modes
SC-5.2 Source Control 5.3. Control Modes The device can be controlled: • • manually (see 5.3.1. Manual Control) • • with the IR remote control (see 5.3.2. Remote Control), or • • with the optional wall panel (see the user manual of the wall panel). -
Page 15: Remote Control
SC-5.2 Source Control 5.3.2. Remote Control The device can be operated with an IR remote control. The remote control is included in the delivery. DANGER Do not ingest battery, chemical burn hazard. The remote control contains a coin cell battery. If the coin cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. -
Page 16: Troubleshooting
SC-5.2 Source Control Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 17: Basic Cleaning Instructions
SC-5.2 Source Control 7.2.1. Basic Cleaning Instructions To clean the device, follow the steps below: 01) Disconnect the device from the electrical power supply. 02) Allow the device to cool down for at least 5 minutes. 03) Clean the device with a soft, lint-free cloth. - Page 18 SC-5.2 Source Control Product code: D1540...
- Page 19 SC-5.2 Source Control Product code: D1540...
- Page 20 DAP is a brand of Highlite International B.V.
