Summary of Contents for DAPAudio D1255

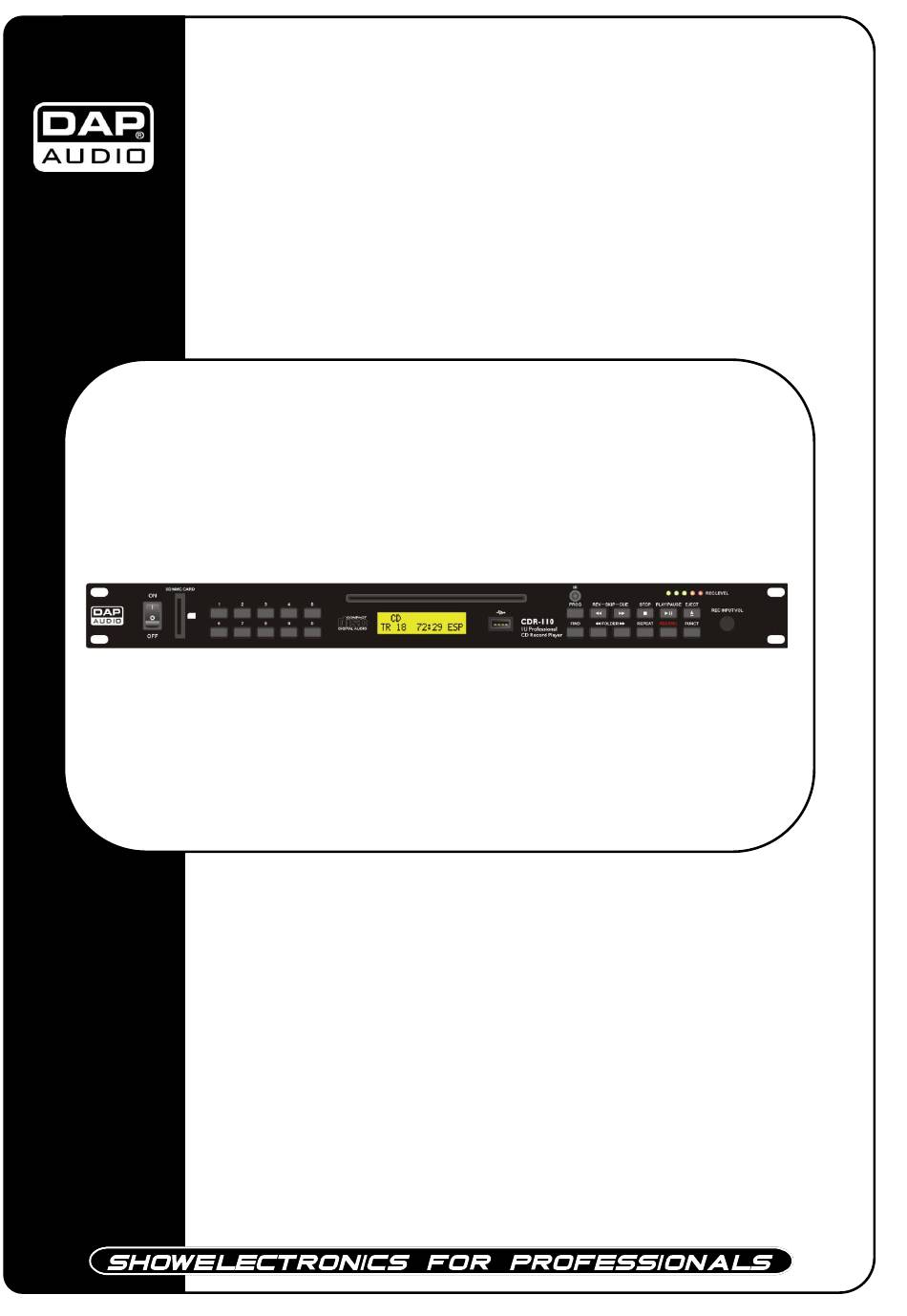

- Page 1 CDR-110 MKII ORDERCODE D1255 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio CDR-110 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
Dap Audio Dap Audio CDR-110™ Product Guide Warning.................…...……………..…………………………….………..… Unpacking Instructions………………………………………………………………………………………………...….. Safety-instructions………………………………………………………………………………………………………...… Operating Determinations.……………………………………………………………………………………………..Return Procedure..............................Claims..................................Description................…...………………………………………….………..… Features and Overview ………………………………...….……………….………….……….……….…………..…… Frontside…………………………………………………...…...….……………….…………………...….……………...… Backside…………………………………………………...…...….……………….…………………...….………..…….. Installation..................................Set Up and Operation..............................Names and functions..............................Operations..................................Play Modes................................Selecting tracks forward............................Selecting tracks backwards..........................Selecting folders forward............................ -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 5: Operating Determinations
Do not insert objects into air vents. Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description
Description of the device Features CDR-110 is a CD/SD/MMC/USB compatible MP3 Player/ Recorder from DAP Audio. You can use the CDR-110 to record directly to either USB or SD/MMC card. If both media are present, the USB stick has priority as recording destination. •... - Page 8 Remote Control Fig. 3 25) Direct Access Buttons 33) Stop Button 26) Folder Button 34) Prog (Program) Button 27) Folder Button 35) Find Button 28) Repeat Button 36) ESP Button 29) Display Button 37) Cue Skip Button 30) Eject Button 38) Rev (Reverse) Skip Button 31) Mute Button 39) Func (Function) Button...
-
Page 9: Installation
Installation CDR-110 Installation Remove all packing materials from the device. Check that all foam and plastic padding is removed. Screw the device in a 19“ Rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 10 13) LCD: When powering on the CDR-110 without a USB stick or a SD/MMC card inserted, the CDR-110 will start searching for a source, indicated by “USB” blinking in the display. If the CDR-110 does not detect a source within approximately 6 seconds, the display will show “No USB”. If you insert a USB stick or a SD/ MMC card, the display will look as shown in figure 4.
-
Page 11: Operations
Operations 1. Play Modes Three different play modes are available: REPEAT, REPEAT ALL, REPEAT ALBUM When you press the Repeat (18, 28) button, you can choose between the following play modes: 1.Repeat: Repeats a single track several times. 2.Repeat All: Plays the complete medium several times. 3.Repeat Album: Plays the complete album several times. -
Page 12: Starting Playback
• Press the Find (15, 35) button again to browse through your folders. The display will look as shown in figure 6. Fig. 6 • You can browse through your folders by using the Rev (6, 38) and Cue (7, 37) buttons. •... -
Page 13: Delete A Track
Fig. 9 • Press the Rec/Del (19, 39) button when you’re finished recording. The display will show REC OK as shown in figure 10. Fig. 10 Now your recording is finished. The first time you’re recording from the Aux In (23) input, the CDR-110 will automatically generate a folder on the medium you’re recording on named TMAUX. -
Page 14: Maintenance
Maintenance DAP Audio CDR-110 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean. -
Page 15: Product Specifications
Product Specifications Power supply: AC 230V - 50 Hz Power consumption: 50 Watt Input: USB memory stick, SD/MMC card slot RCA stereo audio signal Output: USB memory stick, SD/MMC card slot RCA stereo audio signal THD: 1kHz, < 0,3% S/N Ratio: >... - Page 16 2012 Dap Audio.
