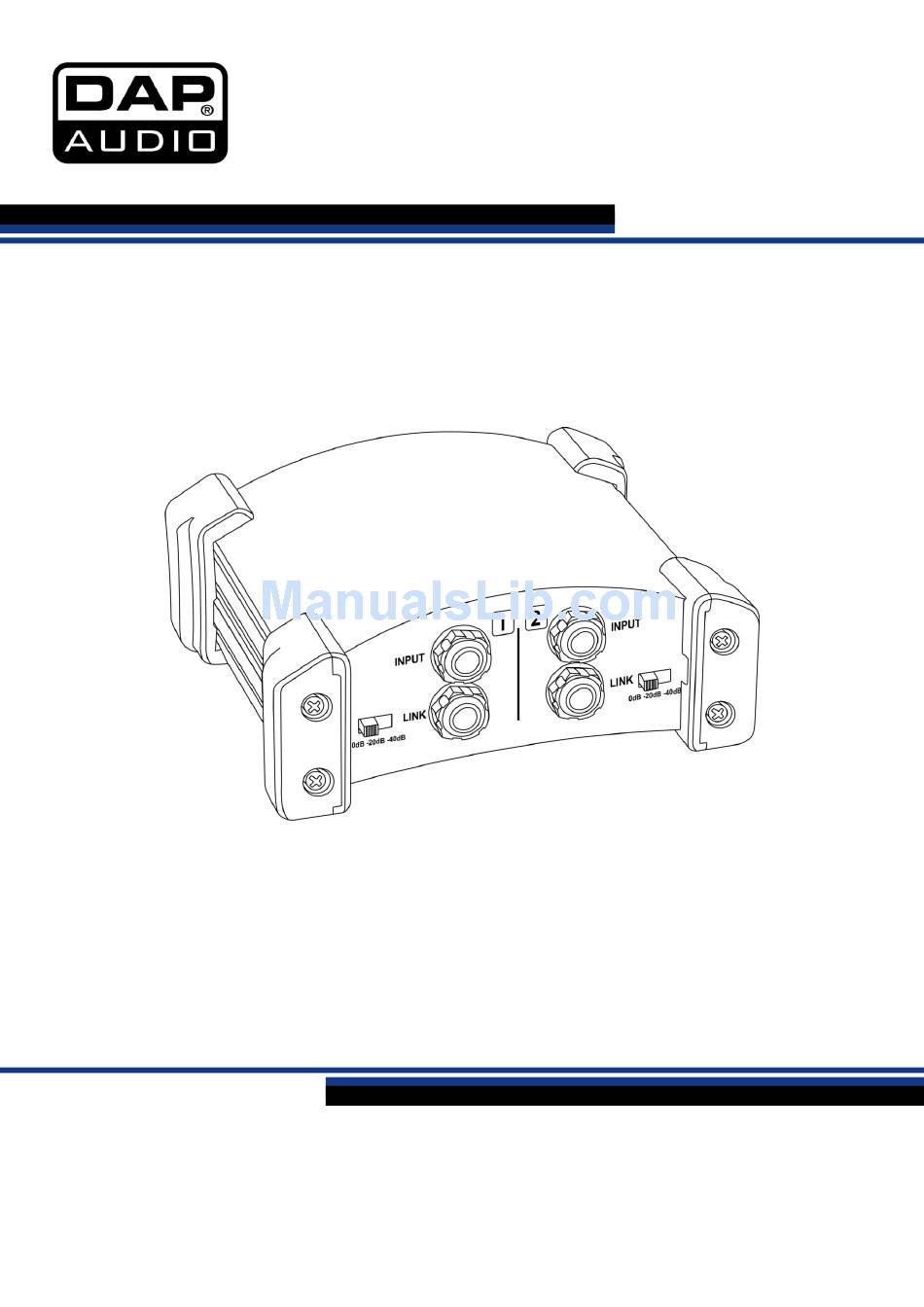

- Page 1 MANUAL ENGLISH PDI-200 Ordercode: D1944 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Return Procedure
PDI-200 Passive direct injection box Warning Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. -
Page 3: Description Of The Device
PDI-200 Passive direct injection box Description of the device Features The PDI-200 is a two-channel passive direct injection box. It converts your HI-Z signal into a LO-Z signal. You do not need a battery or phantom power for this box. ... - Page 4 Applications 01) Guitar pick-up feed The low level, high impedance signal of the guitar pickup is transformed by the PDI-200 into a high level, low impedance balanced signal required by the front of house mixer. Suggested attenuator setting: 0 dB.
-
Page 5: Specifications
PDI-200 Passive direct injection box Specifications Frequency response: 30 Hz-50.000 Hz (1dB) Distortion (THD): 0,003% at 400 Hz Input: 2x 6,3 mm Jack Link connection: 2x 6,3 mm Jack Output: 2x balanced 3-pin XLR Input impedance: 50.000 Ω Output impedance: 500 Ω... - Page 6 PDI-200 Passive direct injection box Notes D1944...
- Page 7 PDI-200 Passive direct injection box D1944...
- Page 8 ©2015 DAP Audio...
