Summary of Contents for DAPAudio DCP-24

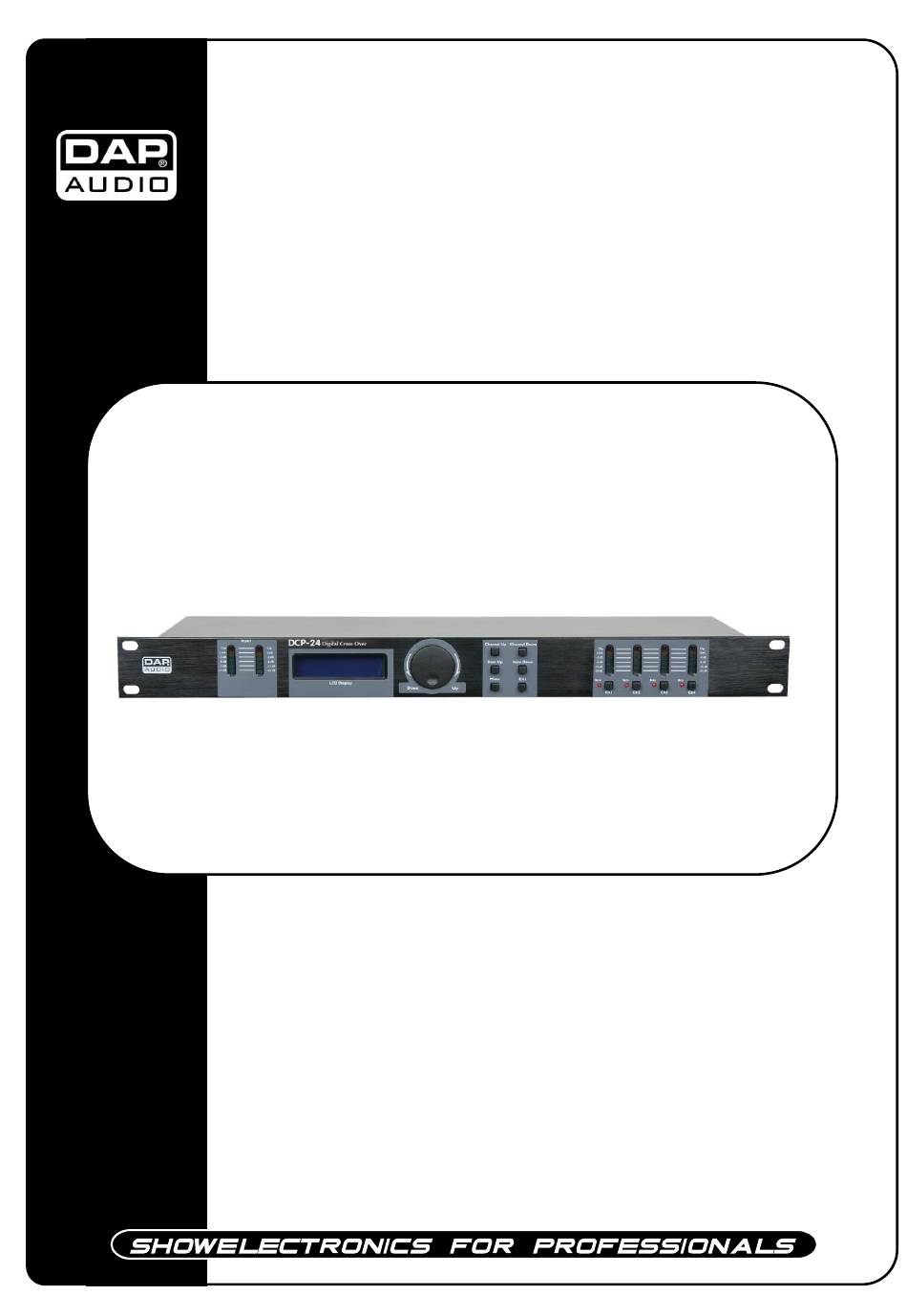

- Page 1 DCP-24 ORDERCODE D2080 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio DCP-24 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Digital Speaker Manager software Installation ....................14 Software installation ............................14 Connecting a single DCP-24 with your PC ..................... 19 Making a connection between your PC and DCP-24 ................. 19 Software Operation ..............................20 The Main menu ..............................20 The In A menu ............................... 22 The In B menu................................ -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP DCP-24 • All control edit software • USB cable (140cm) •... - Page 5 Do not insert objects into air vents. Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Only use system indoor, avoid contact with water or other liquids. ...
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 7: Description

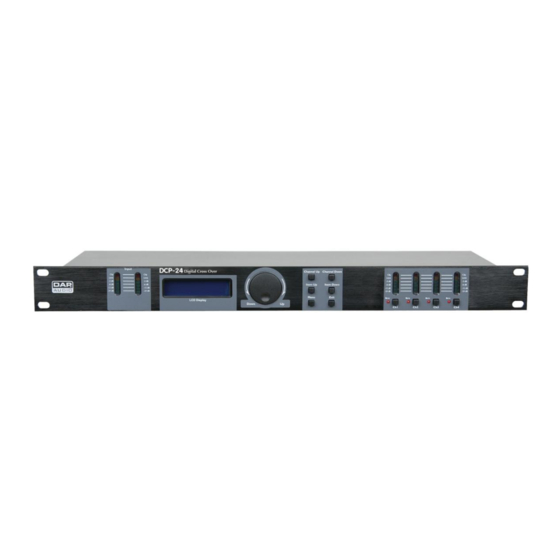

• Engineered and assembled in Europe The DCP-24 is a very complete 2 in- 4 output digital speaker manager. Even if you are not an audio engineer you can easily setup this unit with the included software that you can connect to a PC or Mac with the onboard USB interface. -
Page 8: Overview Back Side
5) Item down button Pressing the Item down button allows select a parameter for editing in reverse direction. Input channels: Link – Limiter – PEQ10 – PEQ9 – PEQ8 – PEQ7 – PEQ6 – PEQ5 – PEQ4 – PEQ3 – PEQ2 – PEQ1 – Highpass - Lowpass –... -
Page 9: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 240V power, or vice versa. Install this device on a flat surface, not bend or curved. Do not supply power before all components of the system are set up and connected properly. - Page 10 HighPass type: BES 24db Select the type by dialing the jogwheel (8). You can choose from: But(terworth) 6dB, Bes(sel) 6dB, 11,75dB_________ But(terworth) 12dB, Bes(sel) 12dB, L(inkwitz) R(iley)12dB, But(terworth) 18dB, Bes(sel) 18dB, But(terworth) 24dB and Bes(sel) 24dB. Once selected the correct filter type, click the jogwheel (8) to return to the _________ lowpass filter frequency (for (re)adjusting) or push the Item up button to proceed with the next item, in our example, the parametric EQ 1.
-
Page 11: Output Setup
Limiter Thr.: 0dbu Adjust the limiter threshold by dialing the jogwheel (8). Click the jogwheel (8) to proceed with the next 11,75dB_________ parameter. _________ Limiter rel.: 50 Adjust the limiter release time (in ms) by dialing the jogwheel (8). 11,75dB_________ IMPORTANT! _________ Enabling the limiter on a specific output also changes the way in which the level is... - Page 12 jogwheel (8). Push the Item Up (2) button to proceed with the Low Pass filter menu. Out 1 lowPass Freq: off Adjust the cut off frequency by dialling the jogwheel (8). Click the jogwheel (8) to proceed with the next 11,75dB_________ parameter.
- Page 13 Out 1 peq 1 type: BES 24db Switch the currently selected parametric EQ on or off by dialing the jogwheel. Click the jogwheel to 11,75dB_________ confirm and proceed to the next parameter. Or push the item up button (2) to proceed with the next item.
-
Page 14: Loading And Saving Files
Out 1 PEQ 1 type: bell Now you’ve completed setting up output channel 1, you have to use the channel up (3) button and set 11,75dB_________ up the other output channels by using the item up (2) button, the item down (5) button and jogwheel (8) as described for output channel 1. -
Page 15: Access Level
Access level menu Push the menu (9) button three times, to enter the access level menu. This menu allows you to protect your settings by a password. Access level: unlocked Rotate the jogwheel (8) to change the access level to locked. Confirm by clicking the jogwheel (8). 11,75dB_________ Set password: _________... -
Page 16: Digital Speaker Manager Software Installation
Digital Speaker Manager software installation Software Installation If the CD doesn’t start automatically, open the CD and double click the setup.exe icon. Now the setup window as shown in the figure below will pop up. Click the next button. Accept the terms by clicking the confirmation box. Now click the Next button. - Page 17 If you’re ok with the installation path (recommended), click the next button. Click the install button. Wait until the next screen pops up.
- Page 18 Make sure to check the confirmation box to install Microsoft VisualC++Runtime. Click the finish button in order to install the VisualC++Runtime program. Click the next button.
- Page 19 Check the confirmation box to accept the license terms. Click the Install button. Wait until the installation is finished.
- Page 20 Now you’ve successfully installed the DAP All control software which can be used to manage and edit - your sound s for the DAP DCP-24, DCP-26 and/or DCL-22.
