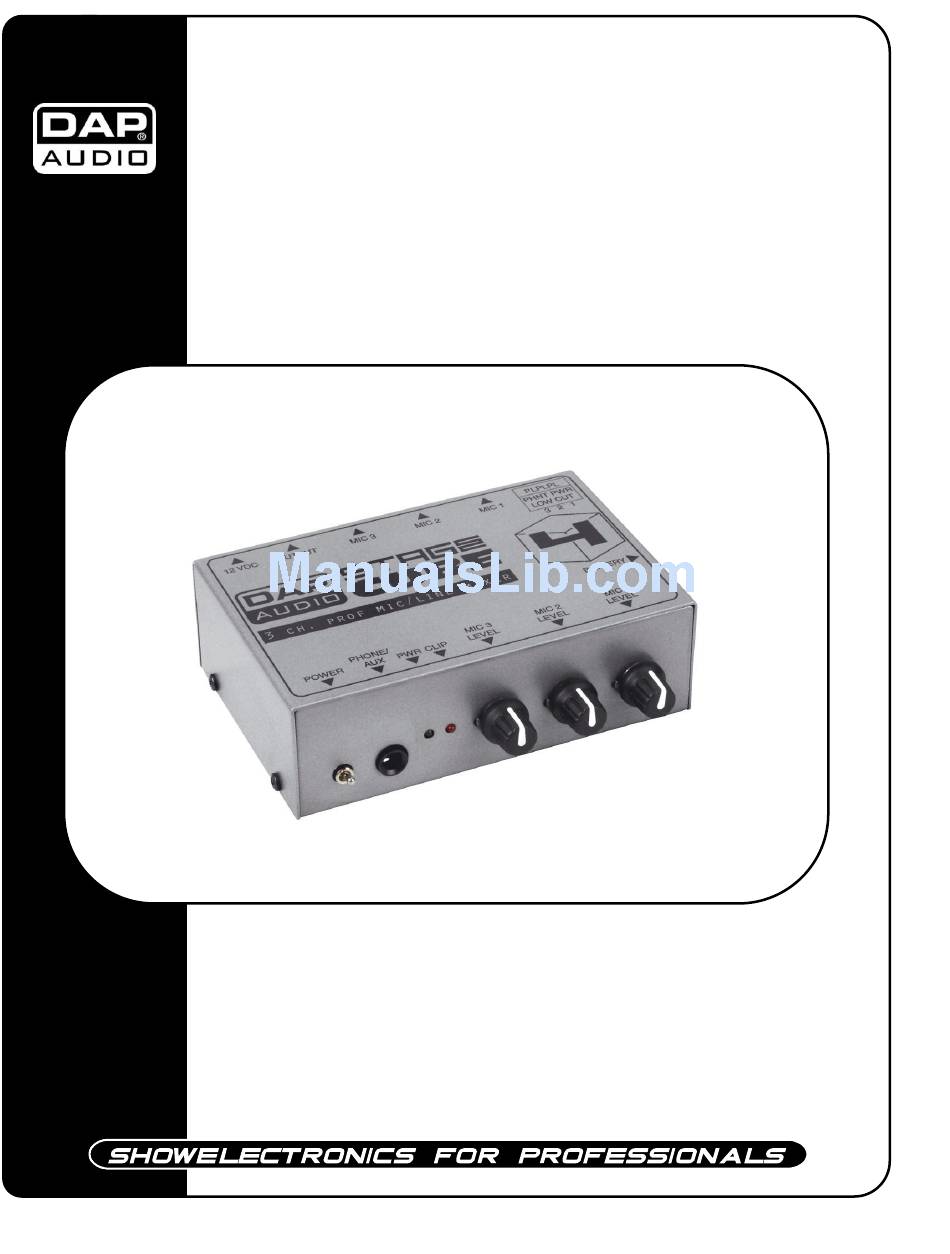

- Page 1 SC-4 ORDERCODE D1504...
- Page 2 Phone/Aux : 1/4" TRS jack which may be connected to a pair of headphones for personal monitoring, or to an unbalanced input of a signal-processor or amplifier. Clip LED : Indicates that clipping is about to occur or occurring in the SC-4 circuitry. This LED begins to light 3 dB below actual circuit-clipping.
- Page 3 Max Input Level : - 14dB Max Gain : +60dB Low Cut : 100Hz Current Draw : 20mA Phantom Power : +18 VDC Connectors : 3 Female XLR, 2 Male XLR, 1 1/4" TRS, DC Power Jack Size : 143 x 93 x 45 mm (LxWxH) Weight : 553 g.
- Page 4 2003 Dap Audio.
