Segway Ninebot MAX G30LD, MAX G30LE - Ninebot KickScooter Manual

At a glance

Your KickScooter is a recreational product with mobile app, allowing you to connect with other riders.

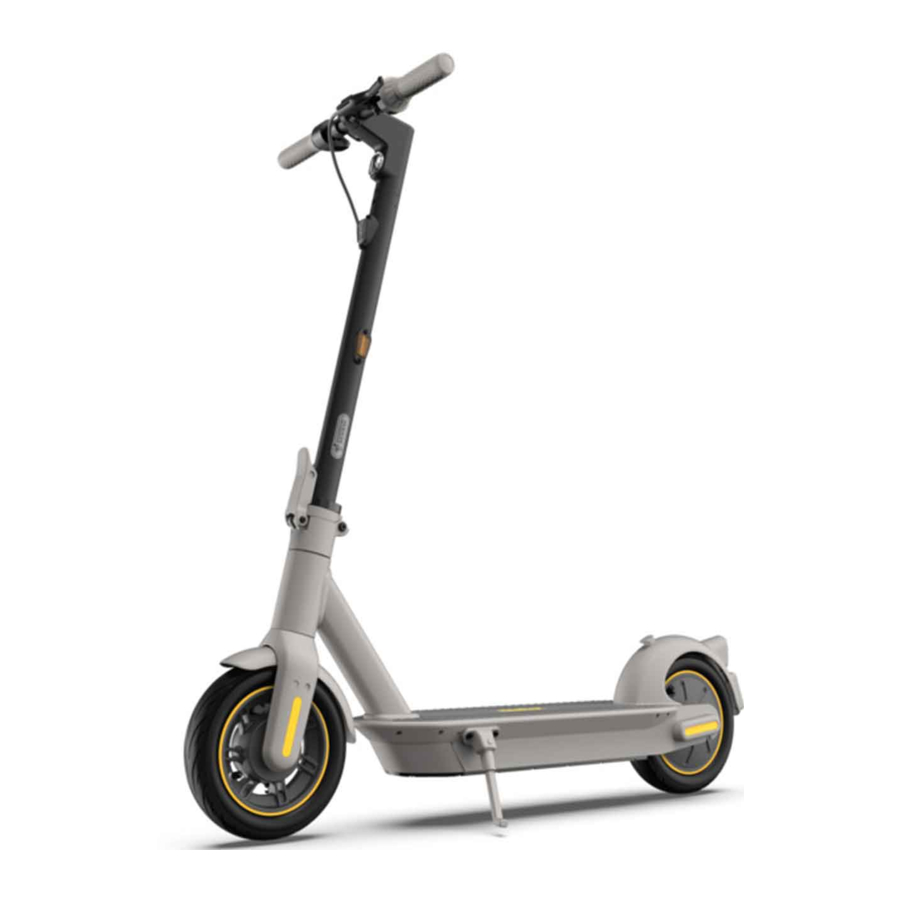

Product At a glance

* The pictures shown are for illustration purposes only. Actual product may vary.

Packing List

When unpacking your KickScooter, please verify that the above items are included in the package. If any components are missing, please contact your dealer/distributor or nearest service center (see Contact). After verifying that all components are present and in good condition, you can assemble your new KickScooter.
Please retain the box and packaging materials in case you need to ship your KickScooter in the future.
Remember to power off your KickScooter and unplug the charge cable before assembling, mounting accessories, or cleaning the mainframe.

Diagram

Product Diagram

Dashboard & Power Button

Dashboard & Power Button

Assembling Your Unit

  1. Unfold the stem and fasten it. Then unfold the kickstand to support the KickScooter.
  2. Slide the handle onto the stem. Be aware of the correct orientation.
    Assembling Your Unit - Step 1 - Slide the handle
  3. Install six screws (two on each side) with the included hex wrench.
    Assembling Your Unit - Step 2 - Install six screws
  4. Verify that your KickScooter can be powered on and off.

First Ride

warning There are safety risks when learning to ride the KickScooter. You must read the Riding Safety via the Segway-Ninebot App (hereinafter referred to as App) before your first ride.
For your safety, your new KickScooter is not activated and will beep occasionally after Power ON.
Until activated, the KickScooter maintains very low riding speed, and can not perform with full function. Install the App on your mobile device (with Bluetooth 4.1 or above), connect to the KickScooter with Bluetooth, and follow the App instructions to activate your KickScooter and enjoy the full performance.
Scan the QR code to download the App.

  1. Install the App and register/login.
    Installing the App Before the First Ride
  2. Power on the KickScooter. The Bluetooth icon off indicates the KickScooter is ready to connect.
  3. Click "Vehicle"→"Search vehicle" to connect to your KickScooter.
    The KickScooter will beep it has successfully connected. The Bluetooth icon will remain illuminated.
  4. Follow the App instructions to activate the KickScooter and learn how to ride safely. You can now start to use your KickScooter, check the status with the App, and interact with other users. Have fun!

Charging

Charging step


Open the charge port cover.


Insert the charge plug.


Close the charge port cover when finished.


Do not charge if the charge port or charge cable is wet.
Do not charge or use your battery if it is damaged or see trace of water.
Close the charge port cover when not charging.
Your KickScooter is fully charged when the LED on the charger changes from red (charging) to green (trickle charge).

Learning to Ride


Wear an approved helmet and other protective gear to minimize any possible injury.

  1. Power on the KickScooter and check the battery level. Charge the KickScooter if the battery level is low.
  2. Stand on the footrest with one foot and push off with another foot to start gliding.
  3. Put your other foot on the footrest to keep both feet stable. Press the electronic throttle to speed up when you are balanced.
    Note: For your safety, the motor will not engage until the KickScooter reaches 3.1 mph (5 km/h)
    Learning to Ride - Step 1 - Using the throttle
  4. Slow down by releasing the throttle; and brake by squeezing the brake lever.
    Learning to Ride - Step 2 - Using the brakes
  5. To turn, shift your body weight and turn the handle slightly.
    Learning to Ride - Step 3 - Turning


When hard braking, you risk serious injury due to loss of traction and falls.
Maintain a moderate speed and look out for potential hazards.

Folding and Carrying

Folding


Turn off your KickScooter. Turn the safety hook counterclockwise and open the quick release lever.

Folding the unit
Align the snap hook and the buckle and hook them.

Unfolding


Disengage the snap hook from the buckle. Fold the stem up, close the quick release lever and turn the safety hook clockwise.

Carrying

Carrying the unit
When your KickScooter is folded up, lift it by the stem to carry.

Maintenance

Cleaning and Storage

Use a soft, wet cloth to wipe the mainframe clean. Dirt hard to remove can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft, wet cloth.

NOTE
Do not wash your KickScooter with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the appearance and internal structure of your KickScooter. Do not wash your KickScooter with a power washer or hose.


Make sure the KickScooter is powered OFF, the charge cable is unplugged, and the rubber cap on the charge port is tightly sealed before cleaning; otherwise you may damage the electronic components.

Store your KickScooter in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and temperature extremes (both hot and cold) will accelerate the aging process of the plastic components and may reduce battery life.

Tire

Tires supplied with the product are to be mounted on the wheel by a professional repairer. Removing the wheels is complicated and incorrect assembly can lead to instability and malfunctions:

  • Please contact an authorized repairer if the product is still under manufacturer guarantee. You can ask for the list of the authorized repairers to the customer service available at www.segway.com.
  • If the product is no longer under guaranteed you can contact any specialized repairer of your choice.
  • Should you have questions, you can contact customer service available at www.segway.com.

Inflate tires to 32–37 psi. Inflate both tires equally.

Maintenance and removal of the battery

Do not remove the battery. Removing the battery is complicated and can alter the operation of the machine: You can contact an authorized repairer if the product is still guaranteed. If the product is not guaranteed, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any further question, you can contact the customer service available at www.segway.com. ;

Do not store or charge the battery at temperatures outside the stated limits (see Specifications). Do not puncture the battery.

A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining the battery completely. When used at room temperature (70°F [22°C]) the battery range and performance is at its best; whereas using it at temperatures below 32°F (0°C) can decrease range and performance. Typically, at -4°F (-20°C) range can be half that of the same battery at 70°F (22°C). Battery range will recover when temperature rises. More details are available in the App.

NOTE
Typically, a fully charged battery should retain power for 120–180 days. A low-power battery should retain power for 30–60 days. Remember to charge the battery after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery record the charge-discharge condition of the battery; damage caused by over-charging or under-charging will not be covered by the Limited Warranty.

burn hazardburn hazard
Do not attempt to disassemble the battery. Do not touch battery contacts. Do not dismantle or puncture the casing. Keep the battery contacts away from metal objects to prevent short circuit. Risk of fire. No user serviceable parts. Do not charge or use your battery if it is damaged or see trace of water.


Do not ride when the ambient temperature is outside the machine operation temperature (see Specifications) because low/high temperature will limit the maximum power/torque. Doing so could cause personal injury or property damage due to slips or falls.

Others

The external flexible cable of this transformer cannot be replaced; if the cord is damaged, the transformer must be discarded and replaced by a new one. Should you have questions, you can contact customer service available at www.segway.com.

In case of accident or breakdown: Please contact an authorized repairer if the product is still under guarantee. If not, you can contact any specialized repairer of your choice. You can ask for the list of the authorized repairers to the customer service available at www.segway.com. For any question, please contact customer service available at www.segway.com.

Efforts have been made to simplify wording in the user manual for users. Where an action appears too complicated for a user, he is advised to contact an authorized or a specialized repairer or customer service.

Specifications

Item G30LD G30LE
Dimensions Length x Width x Height Approx. 43.7 × 18.6 × 45.1 in (1109 × 472 × 1146 mm)
Folded: Length x Width x Height Approx. 43.7 × 18.6 × 21.0 in (1109 × 472 × 534 mm)
Weight Net Approx. 39.0 lbs (17.7 kg) Approx. 38.6 lbs (17.5 kg)
Rider Payload 66.1–220.5 lbs (30.0–100.0 kg)
Recommended Age 14–60 years
Required Height 3'11"–6'6" (120–200 cm)
Machine Parameters Max. Speed Approx. 12.4 mph (20 km/h) Approx. 15.5 mph (25 km/h)
Typical Range [1] Approx. 24.9 miles (40 km)
Max. Slope Approx. 20%
Traversable Terrain asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
Operating Temperature 14–104°F (-10–40°C)
Storage Temperature -4–122°F (-20–50°C)
IP Rating IPX5
Duration of Charging Approx. 6.5 h
Battery Nominal Voltage 36 V
Max. Charging Voltage 42 V
Charging Temperature 32–104°F (0–40°C)
Nominal Energy 367 Wh
Nominal Capacity 10200 mAh
Battery Management System Over-heating, short circuit, over-discharge, over-current and over-charge protection
Motor Nominal Power 350 W (0.35 kW)
Charger Output Power 71 W (0.071 kW)
Input Voltage 100–240 V ~
Output Voltage 42 V
Output Current 1.7 A
Features Brake Light LED rear light
Riding Modes Energy saving mode, Standard mode and Sport mode
Tire Tires Tubeless tire, Material: Natural carbon-black synthetic rubber, 60/70-6.5, Straight nozzle

[1] Typical Range: tested while riding under full power, 165.3 lbs (75.0 kg) load, 77°F (25°C), 60% of max. speed on average on pavement.
* Some of the factors that affect range include: speed, number of starts and stops, ambient temperature, etc.

Riding Safety

  1. The KickScooter is a recreational product. Before mastering riding skills, you need to practice. Neither Ninebot Inc., which means Ninebot (Beijing) Tech Co., Ltd. and its subsidiaries and affiliates, nor Segway Inc. is responsible for any injuries or damage caused by a rider's inexperience or failure to follow the instructions in this document.
  2. Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you cannot eliminate all the risks. Remember that whenever you ride the KickScooter you risk injury from loss of control, collisions, and falls. When entering into public spaces always comply with the local laws and regulations. As with other vehicles, faster speeds require longer braking distance. Sudden braking on low traction surfaces could lead to wheel slip, or falls. Be cautious and always keep a safe distance between you and other people or vehicles when riding. Be alert and slow down when entering unfamiliar areas.
  3. Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with the chin strap in place, and provides protection for the back of your head.
  4. Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or other obstacles and potential hazards.
  5. Respect pedestrians by always yielding the right of way. Pass on the left whenever possible. When approaching a pedestrian from the front, stay to the right and slow down. Avoid startling pedestrians. When approaching from behind, announce yourself and slow down to walking speed when passing. Please obey local traffic laws and regulations if situation is different.
  6. In places without laws comply with the safety guidelines outlined in this manual. Neither Ninebot Inc. nor Segway Inc. is responsible for any property damage, personal injury/death, accidents, or legal disputes caused by violations of the safety instructions.
  7. Do not allow anyone to ride your KickScooter on his/her own unless they have carefully read this manual and followed the Riding Safety in the App. The safety of new riders is your responsibility. Assist new riders until they are comfortable with the basic operation of the KickScooter. Make sure each new rider wears a helmet and other protective gear.
  8. Before each ride check for loose fasteners and damaged components. If the KickScooter makes abnormal sounds or signals an alarm, immediately stop riding. Diagnose your KickScooter via the Segway-Ninebot App and call your dealer/distributor for service.
  9. Be alert! Scan both far ahead and in front of your KickScooter — your eyes are your best tool for safely avoiding obstacles and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice).
  10. To reduce risk of injury, you must read and follow all "CAUTION" and "WARNING" notices in this document. Do not ride at an unsafe speed. Under no circumstance should you ride on roads with motor vehicles. The manufacturer recommends riders be 14+ years old. Always follow these safety instructions:
    1. People who should not ride the KickScooter include:
      1. Anyone under the influence of alcohol or drugs.
      2. Anyone who suffers from disease that puts them at risk if they engage in strenuous physical activity.
      3. Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain balance.
      4. Anyone whose weight is outside the stated limits (see Specifications).
      5. Pregnant women.
      6. Children under the age of 14 years old.
    2. Riders under the age of 18 years old should ride under adult supervision.
    3. Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
    4. To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.
    5. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, or that are slippery for any reason. Do not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and could cause a fall.
  11. Do not attempt to charge your KickScooter if, the charger or the power outlet, is wet.
  12. As with any electronic device, use a surge protector when charging to help protect your KickScooter from damage due to power surges and voltage spikes. Only use the Segway supplied charger. Do not use a charger from any other different product models.
  13. Use only Ninebot or Segway approved parts and accessories. Do not modify your KickScooter. Modifications to your KickScooter could interfere with the operation of the KickScooter, could result in serious injury and/or damage, and could void the Limited Warranty.
  14. Children should not play with the KickScooter or parts of it nor should cleaning or maintenance be done by children. The use of the machine results in the transmission of vibrations throughout the driver's body.
  15. Always place the KickScooter on its stand on a flat and stable surface. The KickScooter must be placed with the stand against the slope to prevent it from tipping over. Never place the KickScooter with the front facing down the slope, as the stand may close and tip the machine. Once the KickScooter is on its stand, check its stability to avoid any risk of falling (by slip, wind or slight jolt). Do not park the KickScooter in a busy area, but rather along a wall. If possible, always choose to park your KickScooter on flat ground.
  16. For a better driving experience, it is recommended to conduct a regular maintenance of the product. Please read the user manual before charging the battery.
  17. Do not touch the brake system, it could cause injuries.
  18. The A-weighted emission sound pressure level is less than 70 dB(A). The mechanical vibrations transmitted by the KickScooter are less than 2.5 m/s2.

Warnings


Failure to follow these instructions could lead to serious injury.


warning DO NOT ride the KickScooter in the rain. DO NOT get wet.

Warnings - Riding on bumpy roads
warning Keep your speed between 3.1–6.2 mph (5–10 km/h) when you ride through speed bumps, elevator door stills, bumpy roads or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces.


warning Watch your head when passing through doorways.

Warnings - Keeping the rear fender free
warning Do not keep your feet on the rear fender.

Warnings - Walking with the unit
warning DO NOT press the throttle when walking with the KickScooter.


warning Avoid contacting obstacles with the tire/wheel.


warning DO NOT carry heavy objects on the handlebar.


warning DO NOT ride the KickScooter with only one foot.


warning DO NOT ride on public roads, motorways, or highways.

Warnings - Riding at high speed
warning DO NOT rotate the handle violently while riding at high speed.


warning Do not ride through puddles or any other (water) obstacles. In such a case please lower your speed and bypass the obstacle.


warning The KickScooter is for one rider only. Do not carry any passengers. Do not carry a child. Do not ride when pregnant.

Warnings - Handling the hub motor after riding
warning DO NOT touch the hub motor after riding because it can get hot.


warning DO NOT take your hands off the handlebar while riding. Do not ride with one hand only.

Warnings - Riding up and down stairs
warning DO NOT ride up and down stairs or jump over obstacles.


warning Do not use mobile phone or wear earphones when operating the KickScooter.


Always keep both hands on the handlebar or you risk serious injury due to loss of balance and falls.

Contact

Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your KickScooter.

Europe, Middle East and Africa:
Segway Europe B.V.

Hogehilweg 8, 1101CC Amsterdam, The Netherlands
Website: www.segway.com

Have your KickScooter serial number on hand when contacting Segway.
You can find your serial number on the underside of your KickScooter or in the App under More Settings –> Basic Information.

The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the App to download the latest user materials. You must install the App, activate your KickScooter, and obtain the latest updates and safety instructions.

www.segway.com
