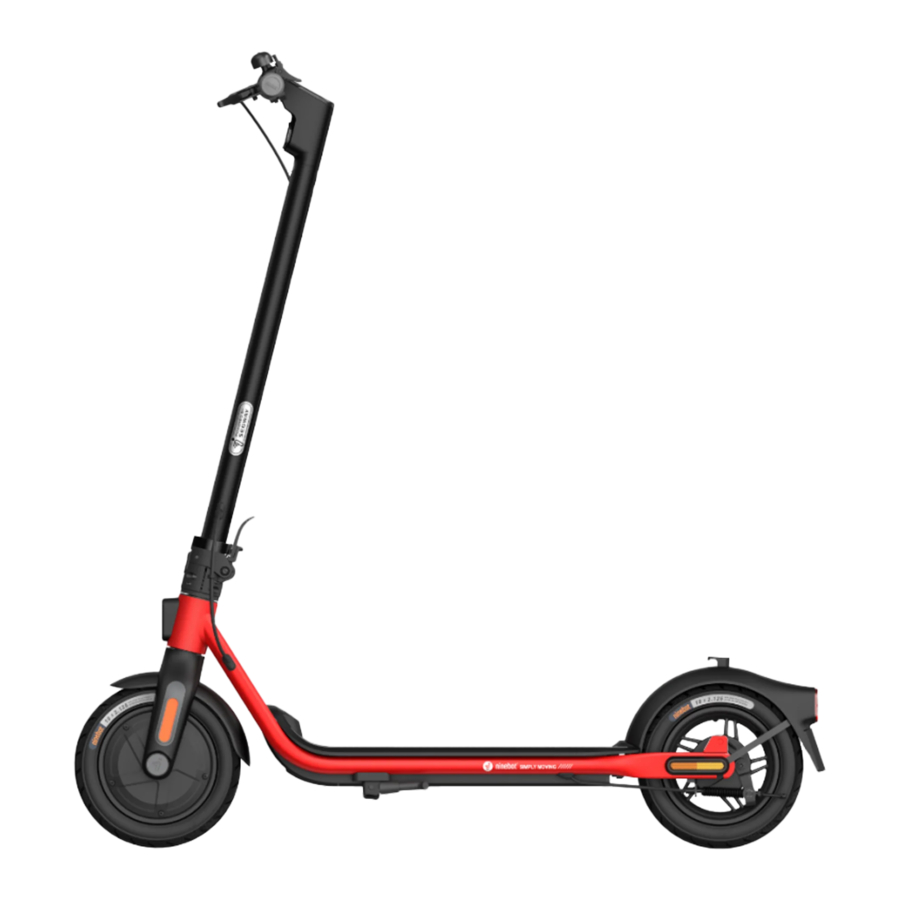

Segway Ninebot D18E/D28E/D28D/D38E/D38D - KickScooter Manual

Diagram

Dashboard & Power Button

Power Button: Press the button to turn on; press and hold the button for 3 seconds to turn off. When the KickScooter is on, press the button to turn on/off the headlight and the rear light, and press twice to switch between the speed modes.
Speedometer: It displays the current speed of the scooter, as well as error codes.
Walk Mode: Max. speed is 5 km/h (3.1 mph).
D18E / D28E / D38E: The headlight and rear light keep flashing and can't be turned off.
D28D / D38D: The headlight and rear light are always on and can't be turned off.
* How to enable it in the Segway-Ninebot app: Tap the sidebar menu > Settings > Walk Mode.
Speed Mode: There are three modes. The top speed is as follows:

Error Notification: It indicates that the scooter has detected an error.
Temperature Warning: It indicates that the battery temperature has reached 55°C (131°F) or is below 0°C (32°F).
* At this point, the vehicle cannot accelerate and may not be charged. Do not use until the temperature has reverted to the normal range.
Bluetooth: It indicates that the scooter has been successfully connected to the mobile device.
Battery Level: The total battery level equals 5 bars.
* The battery power is very low when the first battery bar is red. Please charge your KickScooter immediately.

Specifications

	Item	Parameter
Product	Name	Ninebot KickScooter
	Model	D18E	D28E	D28D	D38E	D38D
	Length × Width × Height	Approx. 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 in)
	Folded: Length × Width × Height	Approx. 1143 × 480 × 495 mm (45 × 18.9 × 19.5 in)
	Net Weight	Approx. 14.8 kg (32.6 lbs)	Approx. 15.3 kg (33.7 lbs)		Approx. 16.3 kg (35.9 lbs)
Rider	Payload	30–100 kg (66–220 lbs)	30–120 kg (66–265 lbs)
	Recommended Age	14–60 years
	Required Height	120–200 cm (3'11"–6'6")
Machine	Max. Speed	Approx. 25 km/h (15.5 mph)	Approx. 25 km/h (15.5 mph)	Approx. 20 km/h (12.4 mph)	Approx. 25 km/h (15.5 mph)	Approx. 20 km/h (12.4 mph)
	Typical Range[1]	Approx. 18 km (11.2 miles)	Approx. 28 km (17.4 miles)		Approx. 38 km (23.6 miles)
	Max. Slope	Approx. 10%	Approx. 15%		Approx. 20%
	Traversable Terrain	Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm)
	Operating Temperature	-10–40°C (14–104°F)
	Storage Temperature	-10–50°C (14–122°F)
	IP Rating	IPX5
	Duration of Charging	Approx. 3.5 h	Approx. 5 h		Approx. 6.5 h
Battery	Nominal Voltage	36 V
	Max. Charging Voltage	42 V
	Charging Ambient Temperature	0–40°C (32–104°F)
	Nominal Capacity	5100 mAh	7650 mAh		10.2 Ah
	Nominal Energy	183 Wh	275 Wh		367 Wh
	Battery Management System	Over-heating, short circuit, over-current, over-discharge and over-charge protection
Motor	Nominal Power	0.25 kW, 250 W	0.3 kW, 300 W		0.35 kW, 350 W
Charger	Output Power	0.07 kW, 70 W
	Input Voltage	100–240 V~
	Max. Output Voltage	42 V
	Rated Output	41 V 1.7 A
Features	Brake Light	LED Rear Light
	Speed Modes	Energy-saving mode, Standard mode and Sport mode
Tire	Tire Pressure	40–45 psi
	Tires	10-inch pneumatic tire

^[1] Typical Range: tested while riding with a full battery, 75 kg (165 lbs) load, 25°C (77°F), at the speed of 16 km/h on average on pavement.
* Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.
