Segway Ninebot KickScooter Max G2, 051501U Manual

Diagram

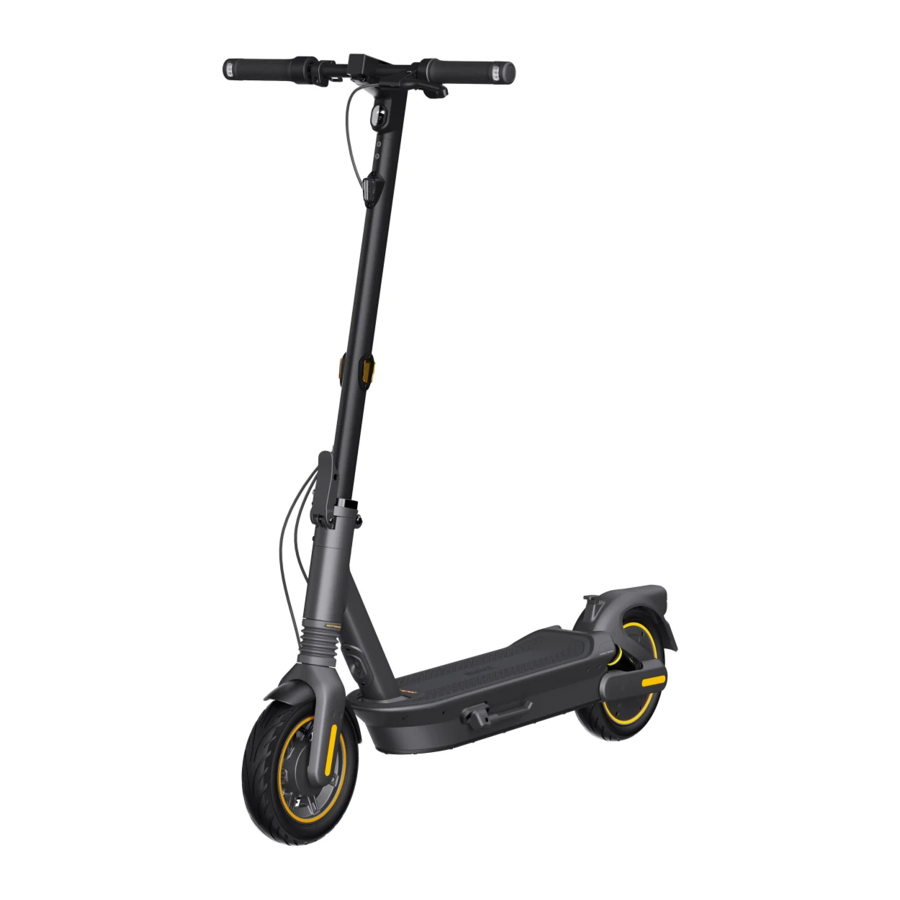

Overview

Dashboard & Power Button

Power Button: Press the button to power on; press and hold the button for 3 seconds to power off. When the KickScooter is on, press the button to turn on/off the headlight and the tail light; and press twice to switch between the speed modes.

Speedometer: It displays the current speed of the scooter, as well as error codes.
*After setting the starting speed to

Direction Indicator: When turning left or right, press the "←" (left) or "→" (right) switch on the direction indicator switch. Then the direction indicator will flash regularly which can be turned off by pressing the corresponding switch again.

Walk Mode: Max. speed is 3.1 mph (5 km/h).
The headlight and rear light are always on and can't be turned off.
* How to enable in the Segway-Ninebot app: Settings > Walk Mode.

Speed Mode: There are three modes available. The top speed is as follows:
*The top speed and the accelerated speed of Sport mode (S) can be adjusted in Segway-Ninebot APP. (Current battery level will influence the maximum speed.)

* Mode Item	Speed	Range*
ECO (Energy-saving mode)	10 mph (16 km/h)	43 miles (70 km)
D (Standard mode)	16 mph (25 km/h)	31 miles (50 km)
S (Sport mode)	20 mph (32 km/h) (Factory default condition)	28 miles (45 km)
	22 mph (35 km/h) (Enable Higher speed via the Segway-Ninebot APP.)	25 miles (40 km)

*Ranges of Speed Modes: Tested while riding with a full battery, 165 lbs (75 kg) load, 77°F (25°C), at the max. speed of each speed mode on average on pavement.

Cruise mode: The symbol indicates that the cruise mode is activated.
*Enable Cruise mode via Segway-Ninebot APP, and it will function when rider presses and holds the throttle for more than 5 seconds, with the buzzer ringing a long beep. (KickScooter can not enter Cruise mode when its speed is slower than 3.1 mph (5 km/h).

Bluetooth: It indicates that the scooter has been successfully connected to the mobile device. Battery Level: The total battery level equals 5 bars.
* The battery power is very low when the first battery bar is red. Please charge your KickScooter immediately.

Specifications

	Item	Parameter
Product	Name	Ninebot KickScooter Max G2
	Model	051501U
	Length × Width × Height	Approx. 47.6 × 22.4 × 49.8 in (1210 × 570 × 1264 mm)
	Folded: Length × Width × Height	Approx. 47.6 × 22.4 × 23.8 in (1210 × 570 × 605 mm)
	Net Weight	Approx. 53.5 lbs (24.25 kg)
Rider	Max. Payload	265 lbs (120 kg)
	Recommended Age	16+ years old
	Required Height	3'11"–6'6" (120-200 cm)
Machine	Max. Speed [1]	Approx. 20 mph (32 km/h) (Factory default condition) Approx. 22 mph (35 km/h) (Enable Higher speed via the Segway-Ninebot APP.)
	Theoretical Range [2]	Approx. 43 miles (70 km)
	Range at Max. Speed [3]	Approx. 28 miles (45 km) at speed of 20 mph (32 km/h) Approx. 25 miles (40 km) at speed of 22 mph (35 km/h)
	Max. Slope	Approx. 22%
	Traversable Terrain	Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm).
	Operating Temperature	14–104°F (-10–40°C)
	Storage Temperature	14–122°F (-10–50°C); recommended: 50–86°F (10~30°C)
	IP Rating	IPX5
	Duration of Charging	Approx. 6 h
Battery	Nominal Voltage	36 V
	Max. Charging Voltage	42 V
	Charging Ambient Temperature	32–104°F (0–40°C)
	Nominal Capacity	15.3 Ah
	Nominal Energy	551 Wh
	Battery Management System	Over-heating, short circuit, over-current, over-discharge and over-charge protection
Motor	Nominal Power	0.45 kW, 450 W
Motor	Max. Power	1 kW, 1000 W
Charger	Model	NB-42D0-02D9
	Type	Built-in
	Output Power	0.1218 kW, 121.8 W
	Input Voltage	100–240 V ~ 50–60 Hz, 2.0 A MAX.
	Max. Output Voltage	42 V
	Output Current	2.9 A
Tire	Tire Pressure	42-48 psi
Tire	Tires	10-inch Tubeless Self-sealing Tire

[1] Max. Speed: tested while riding with a full battery, 75 kg (165 lbs) load on pavement.

* Some of the factors that may affect the maximum speed include the rider's weight, remaining battery power, wind resistance, etc.

it is your legal duty to comply with your local traffic law and regulations when using this product. In the Unites States, in certain States, an electric kickscooter is not allowed to be used on public road (i.e., "on-road" ), if its maximum speed capacity, weight and/or other features do not comply with the mandatory requirements imposed by law. With respect to maximum speed capacity restriction, certain States require that an electric kickscooters' maximum speed capacity shall be capped at / limited to a specific miles per hour if it is for on-road use, and the cap / limit varies in different States. By way of examples, the States that impose such maximum speed capacity restriction include New York, Florida, Arizona, New Jersey etc. In the event you intend to use this product on-road in a State that imposes such maximum speed capacity restriction, you MUST select a proper lower speed mode of this Product to assure that the product' s maximum speed capacity under such speed mode complies with the law. In the event the maximum speed capacity of the lowest speed mode of this product nevertheless exceeds the maximum speed capacity restriction imposed by a State for on-road use, you shall not use this product on-road in that State. Furthermore, a State may have other law regulating on-road use of this product, such as maximum speed requirement and/or helmet requirement. In addition to State law, there may be further restrictions or prohibition on use of electric kickscooters by local law and/or regulations. For off-road use of this product, there may be other restrictions and/or limitations imposed by the property owner or others. The App of the product may provide additional useful information related to this matter.

Disclaimer: this is not a legal opinion or legal advice. The information provided herein (including in the app) is for your convenience and information purpose only. It is not intended to cover every piece of law and/or regulation that may be applicable to this product. Segway and Ninebot explicitly hereby disclaim any and all warranty and/or representation, express or implied, related to completeness, accuracy, up-to-date of such information. Segway and/or Ninebot reserves the right but not obligation to correct, implement and/or update the information. You shall use the information at your own risk. It is your sole responsibility to learn and understand any and all the law and/or regulation, requirements, prohibition, restriction and/or limitation imposed by either law, government authority, court, private party or the others that may apply to your use of this product.

[2] Theoretical Range: Tested while riding with a full battery, 165 lbs (75 kg) load, 77°F (25°C), at the speed of 9.9 mph (16 km/h) on average on pavement.

[3] Range at Max. Speed: Tested while riding with a full battery, 165 lbs (75 kg) load, 77°F (25°C), at the max. speed on average on pavement.

Recommended Maintenance Schedule

To ensure safe riding, day to day care and regular maintenance are essential. You, the owner, have control and knowledge of how often you use your scooter, how hard you use it and where you use it. It is the owner's responsibility to perform regular checks and bring your scooter to authorized service center for inspection and service. Please refer to the maintenance schedule below.

Note: This maintenance schedule charges a service fee.

Item	Component	Maintenance Method	Every 3 months	Every 6 months or every 310 miles (500 km)	Every 1 year or every 621 miles (1,000 km)	Every 3 years or every 6,214 miles (10,000 km)
Mainframe maintenance	Mainframe parts	Use a soft, wet cloth to wipe the mainframe clean.	√	√	√	√
	Tire pressure	Inflate tires to 42-48 psi	√	√	√	√
	Tire wear	Check if the tires are cracked, deformed, or significantly worn.		√	√	√
	Screws on the stem top	Tighten the screws fixed with the handlebar and the stem. The suggested torque is 5.5±0.5 N·m.	√	√	√	√
	Screws on the stem top	Tighten the screw on the throttle. The suggested torque is 0.9±0.06 N·m. Tighten the screws on the brake lever. The suggested torque is 6±1 N·m. Tighten the screws on the stem top. The suggested torque is 8.5±0.5 N·m.		√	√	√
	Screws on the folding mechanism	Tighten the fixing screws of the folding handle and the front fork, Two lateral screws at the side, the recommended torque is 15 ± 1N · m Fold and unfold, the upper vertical screw, the recommended torque is 15 ± 1N · m Fold the connecting rod, and fasten the connecting rod screws when rocking on the bike. The folding is smooth without shaking.		√	√	√
Function inspection	Hub motor	To accelerate and decelerate, check if the hub motor is stalled or has abnormal sounds.			√	√
	Front wheel maintenance	Check if the front wheel is stalled or gets shaky, or the axis shaft is unbalanced.			√	√
	Brake adjustment	Tighten brake: Turn the brake adjusting nut counterclockwise by 8 mm (5/16") open-end wrench to adjust the brake system, then turn the fixing nut clockwise by the open-end wrench. Loosen brake: Turn the fixing nut counterclockwise by 8 mm (5/16") open-end wrench, then turn the brake adjusting nut clockwise by the open-end wrench to adjust the brake system. Test standard: The braking distance is no longer than 6 m (19.7 ft) when braking at a speed of 20 km/h (12.4 mph).		√	√	√
	Drum brake	Front wheel can rotate normally without abnormal sound. Front wheel can be braked after squeezing the brake lever.		√	√	√
	Taillight	Squeeze the brake lever, the tail light works normally.		√	√	√
	Headlight	Check the headlight and see if it lights brightly.		√	√	√
	Direction indicators	Toggle the direction indicator button to the left/right respectively, check if the direction indicators on the left/right side flash normally.		√	√	√
	Dashboard	Power on the scooter, the dashboard works properly.		√	√	√
	Horn	Press the horn button and the sound is loud.		√	√	√
	Throttle	Press and hold the throttle then release it, checking for acceleration and deceleration. Note: Release it, check if the throttle will back to the position.		√	√	√
Function inspection	Fault detection	After connecting with the Segway-Ninebot app: Update the firmware to the latest version. Check if the notification of the corresponding error code and possible causes will prompt when the scooter detects an error		√	√	√
	Charging	Charge the scooter: Check if the current battery power displays on the dashboard. Check the LED indicator on the battery charger. Charging: red, Fully charged: green.		√	√	√
	Control buttons	Press or toggle the button 3 times without failure.		√	√	√
	Turning	Test with left turns and right turns (the steering angle is 60). No resistance or lag when turning.			√	√
Important parts	Battery assembly	The battery need to be replaced when it is charged and discharged for 500 times or the total mileage is more than 6,214 miles (10,000 km). Note: It is recommended to charge once every 60 days for long-term storage.				√
	Controller	After 3 years' or 6,214 miles' (10,000 km's) riding, the abnormal parts of the kickscooter have to be repleced immediately.
	Hub motor
Functional parts	Rear wheel assembly
	Throttle & Brake lever
	Front fork assembly
	Folding mechanism
	Drumbrake
	Dashboard Cover

The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the Segway-Ninebot app to download the latest user materials. You must install the app, activate your KickScooter, and obtain the latest updates and safety instructions.

The pictures shown are for illustration purposes only. The actual product may vary.
