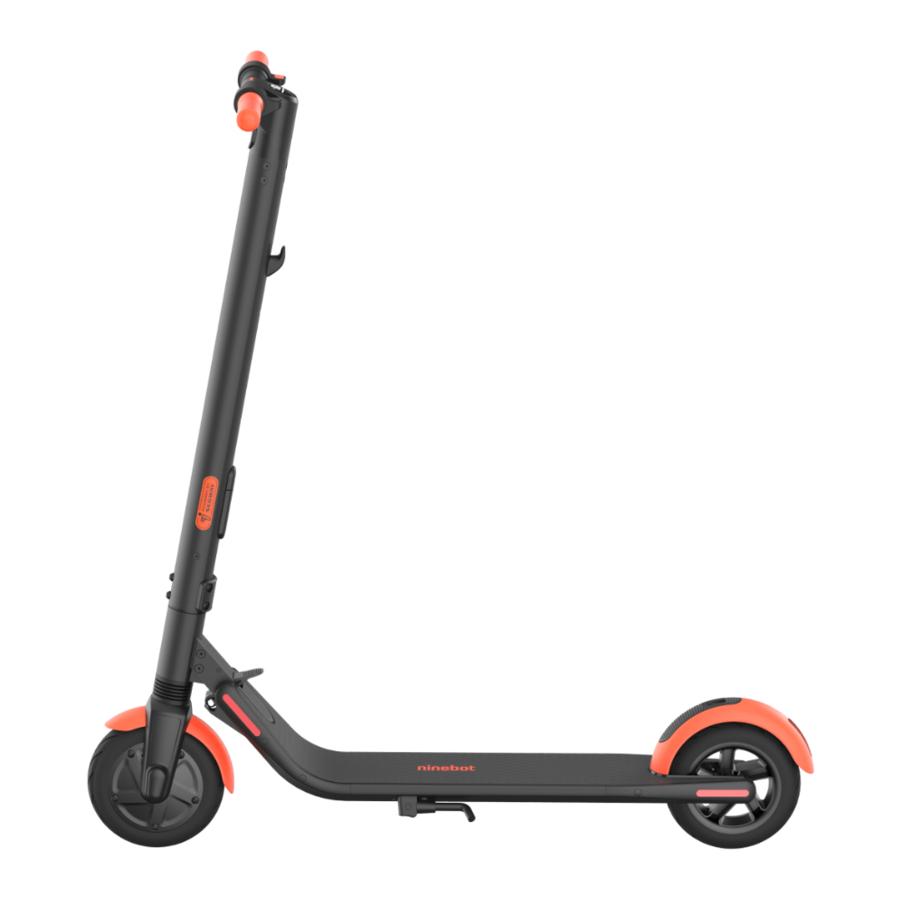

Segway Ninebot ES1L/ES1LD - KickScooter Manual

Packing List

Accessories

Assembly

1. Unfold the stem. Confirm that the latching axis is secured. Then unfold the kickstand.

2. Flip up the folding pedal (For ES1LD).

3. Firmly connect the wires inside the handlebar and the stem. Slide the handlebar onto the stem.

4. Install six screws in order (two on each side) with the included hex wrench.


How to Ride

1.
   Always wear a helmet, elbow pads and knee pads when riding.

2. Power on the KickScooter.

3. Stand on the footboard with one foot and push off with another foot to start gliding.

4. Put your other foot on the footboard to keep both feet stable. Press the throttle to speed up when you are balanced.

5. Slow down by releasing the throttle. Squeeze the electronic brake and/or stamp the rear fender to brake.

6. To turn, shift your body and turn the handlebar slightly.


Charging

Your KickScooter is fully charged when the LED on the charger changes from red (charging) to green (trickle charge).

Open the charge port cover.

Insert the charging plug.

Close the charge port cover when finished.

Warnings

Failure to follow these instructions could lead to serious injury.

DO NOT ride on public roads, motorways, or highways.

DO NOT use mobile phone or wear earphones when riding the KickScooter.

DO NOT brake rapidly. Use both brakes together when traveling at fast speed.

DO NOT carry any passengers.

DO NOT step on the folding pedal while riding.

DO NOT ride up and down stairs or jump over obstacles.

DO NOT ride the scooter in the rain. DO NOT ride through puddles or other obstacles.

DO NOT ride the scooter with only one foot or one hand.

DO NOT overtake.

Keep your speed between 3.1–6.2 mph (5–10 km/h) when you ride through speed bumps, or other uneven surfaces.

Watch your head when passing through doorways.

Avoid contacting obstacles with the tire/wheel.

DO NOT carry heavy objects on the handlebar.

DO NOT touch the hub motor after riding because it can get hot.

Folding

1. Flip down the folding pedal (For ES1LD).

2. Step on the folding pedal while pushing the handlebar forward slightly.

3. Fold the handlebar down until it locks into the rear fender.


Unfolding

1. Press the rear fender to disengage the hook.

2. Upright the stem until you hear a click. Ensure that the latching axis is secured correctly.

3. Flip up the folding pedal (For ES1LD).


Carrying

Lift by the stem to carry.

Screw Checking

Check the screw periodically and tighten with 2.5 mm hex wrench.
