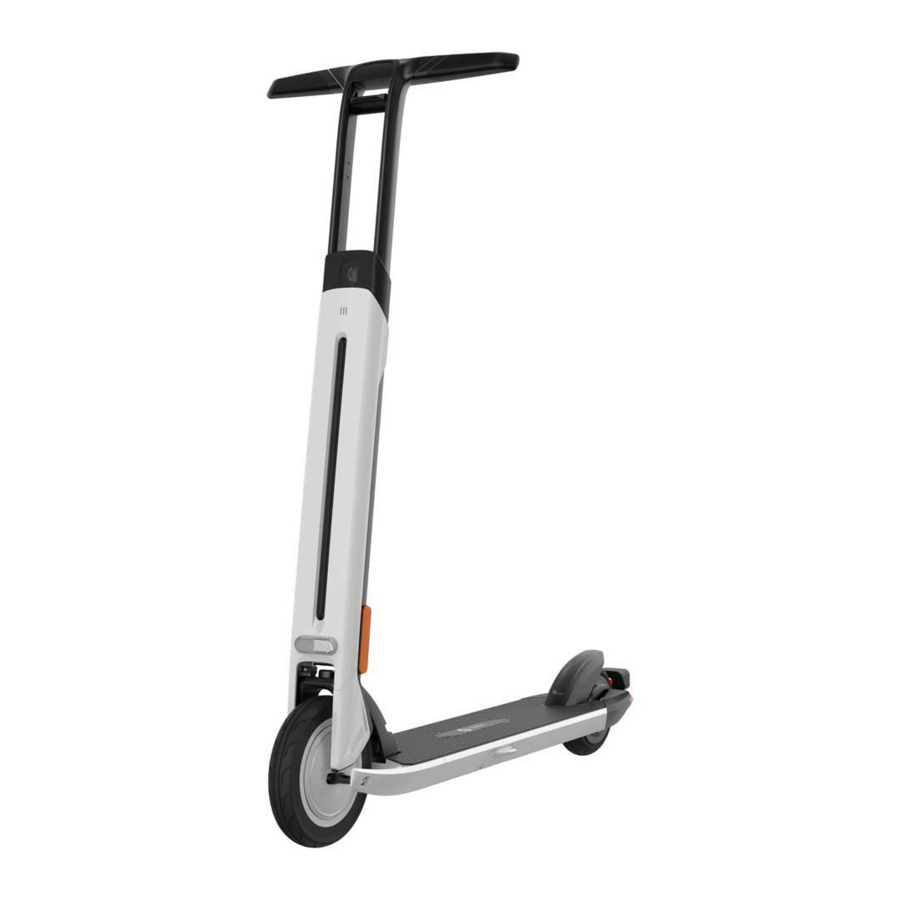

Segway Ninebot Air T15E - Kick Scooter Manual

Diagram

Power Switch / Fender Brake:

• Step on the Power Switch / Fender Brake to power on.
• When power-on and speed is less than 1.9 mph (3 km/h), step on to turn on/off the headlight and rear light.
• When power-on, step on twice to switch speed modes.
• Step on the Power Switch / Fender Brake 3 secs to power off.

The rear fender can be used as a brake when riding. It is recommended to use together with the electronic brake.

Ambient Light:
The color of ambient light can be customized via the Segway-Ninebot App.

Electric Honk:
Press the electronic throttle and electronic brake together to honk.

Dashboard

Speedometer: Display the current speed of the KickScooter, as well as error codes.
Speed Modes: Step on the Power Switch / Fender Brake twice to switch between the modes.

	Energy saving mode [Max speed is 6.2 mph (10 km/h) with smooth acceleration, suitable for beginners];
	Standard mode [Max speed is 9.3 mph (15 km/h)];
	Sport mode [Max speed is 12.4 mph (20 km/h), powerful, only recommended for skilled riders].

Pedestrian Mode: Max. speed is 3.7 mph (6 km/h) with flashing rear light.
* How to enable in App: Tap the slide menu > Settings > Pedestrian Mode.
Error Display: The lit wrench icon indicates the KickScooter error.
Cruise Control: Enabled when riding at a constant speed for 5 secs. Exit the mode by braking. * This feature is off by default. Please turn it on via the Segway-Ninebot App.
Temperature Indicator: The thermometer icon blinking indicates that the battery temperature has reached 122°F (50°C) or is below 32°F (0°C), or motor temperature has reached 194°F (90°C).
* At this point, the vehicle cannot accelerate normally and may not be charged.
Bluetooth: A solid Bluetooth icon indicates that the vehicle is connected to a mobile device.
Battery Level: The total battery level equals to 4 bars.
* The battery power is very low when the first battery bar is red. Please charge your KickScooter immediately.

Specifications

	Item	Parameter
Product	Name	Ninebot KickScooter
	Model	Air T15E
	Net Weight	Approx. 23.2 lbs (10.5 kg)
Dimensions	Length x Width x Height	Approx. 40.1 × 15.7 × 36.9 in (1019 × 398 × 936 mm)
	Folded: Length x Width x Height	Approx. 40.5 × 8.0 × 8.8 in (1028 × 202 × 223 mm)
Rider	Payload	66.1–220.5 lbs (30.0–100.0 kg)
	Recommended Age	14–60 years
	Required Height	4'3"–6'6" (130–200 cm)
Machine	Max. Speed	Approx. 12.4 mph (20 km/h)
	Typical Range [1]	Approx. 7.5 miles (12 km)
	Max. Slope	Approx. 15%
	Traversable Terrain	Asphalt/flat pavement
	Operating Temperature	14–104°F (-10–40°C)
	Storage Temperature	14–122°F (-10–50°C)
	IP Rating	IPX4
	Duration of Charging	Approx. 4 h
Battery	Nominal Voltage	36 V
	Max. Charging Voltage	42 V
	Charging Temperature	32–104°F (0–40°C)
	Nominal Capacity	4650 mAh
	Nominal Energy	167 Wh
	Battery Management System	Over-heating, short circuit, over-current, over-discharge, and over-charge protection
Motor	Nominal Power	0.25 kW, 250 W
Charger	Output Power	0.071 kW, 71 W
	Input Voltage	100–240 V ~
	Output Voltage	42 V
	Output Current	1.7 A
Features	Brake Light	LED rear light
	Riding Modes	Pedestrian mode, Energy saving mode, Standard mode and Sport mode
Tire	Front Tire	Hollow tires. Material: NR + SBR + SILICA+C.B. Size: 6 inches. Without nozzle.
	Rear Tire	Hollow tires. Material: NR + SBR + SILICA+C.B. Size: 7.5 inches. Without nozzle.

[1] Typical Range: tested while riding under full power, 165.3 lbs (75.0 kg) load, 77°F (25°C), 7.5 mph (12 km/h) on average on pavement.
03 * Some of the factors that affect range include: speed, number of starts and stops, ambient temperature, etc.
