Summary of Contents for Zycoo SL50

  • Page 2: Table Of Contents

    Contents 1. Preface ........................1 1.1 Audience ......................1 1.2 Revision History ....................1 2. Overview ........................2 2.1 Product Overview ....................2 2.2 Product Specifications ..................2 3. Login the Device ....................3 3.1 Accessing the Web GUI ..................3 3.2 Device Info ......................4 4.
  • Page 3 7.5 Test ......................... 25...
  • Page 4: Preface

    This manual is intended to provide clear operating instructions for those who will configure and manage the SL50 Network Column Speaker. By carefully reading and consulting this guide, users could solve the setting and deployment issues of the SL50 Network Column Speaker.
  • Page 5: Overview

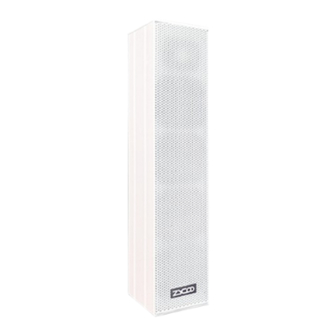

    SL50 Network Column Speaker is a high-performance SIP-enabled column speaker used for SIP paging, notification/tone broadcasting, and streamed high-definition music playback. SL50 is equipped with 4 woofer drive units and 1 tweeter drive unit. It has high sensitivity and capacity, giving clear and rich saturation, whether SIP-based propaganda broadcasting or background music playing.
  • Page 6: Login The Device

    3.1 Accessing the Web GUI SL50 obtains the IP address through DHCP by default, please ensure that there is an available DHCP server in your LAN (If DHCP fails to obtain an address, it will use a static IP address: 192.168.1.101), or press and hold the reset button for 5 seconds and then release it to listen to...
  • Page 7: Device Info

    SIP Status SIP Account:  Display the SIP number configured on this device.  SIP Server: Display the SIP server (Such as ZYCOO IP Audio Center or IP PBX) address.  Register Status: Display the SIP number registration status.
  • Page 8 SL50 Network Column Speaker User Guide Device Information  Device Model: Displays the model of the device. Hardware Version:  Displays the hardware version number of the device.  Software Version: Display the system version number of the device. ...
  • Page 9 SL50 Network Column Speaker User Guide Gateway:  The gateway address currently used by the device. Primary DNS:  The primary domain name server address used by the device.  Alternative DNS: The secondary domain name server address used by the device.
  • Page 10: Sip Settings

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed with various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘Enable Integration with ZYCOO IP Audio Center’ option.
  • Page 11 SL50 Network Column Speaker User Guide Secondary SIP 1 Account Secondary SIP 2 Account  SIP Server: Enter the IP address or domain name of the SIP server.
  • Page 12: P2P Account Settings

    STUN, TURN, and ICE modes are supported.  Enable Integration with ZYCOO IP Audio Center: This option is disabled by default. If you need to connect and use it with ZYCOO IP Audio Center, please enable this option. Only the main SIP account has this option.
  • Page 13 SL50 Network Column Speaker User Guide P2P Account User ID:  The User ID will be displayed as the outgoing number when calling out, or the number that another device needs to dial.  Auto Answer: Yes/No/Answer Delay, default in the Yes option.
  • Page 14: Audio Codecs

    SL50 Network Column Speaker User Guide 4.3 Audio Codecs SL50 supports 4 audio codecs: G.722 (wideband codec), G.711(Ulaw), G.711(Alaw), and Opus. To enable or disable an audio codec/codecs, please go to SIP Settings --> Audio Codecs page. Audio Codecs Please keep at least one codec enabled and supported by the SIP server, otherwise, SIP paging will not work.
  • Page 15 SL50 Network Column Speaker User Guide Advance SIP Settings  Local Port: This setting represents the port used to receive SIP packets.  RTP Start Port: This setting represents the starting RTP port that will use for media sessions.  RTP End Port: This setting represents the end RTP port that the system will use for media sessions.
  • Page 16: Advanced Settings

    SL50 Network Column Speaker User Guide 5. Advanced Settings 5.1 Volume Settings To set the volume of the SL50, please go to Advanced --> Volume page to configure. Volume Settings  Speaker Volume: The default speaker volume is 7, adjustable range is 0 ~ 9.
  • Page 17 SL50 Network Column Speaker User Guide Please go to Advanced --> API Settings page to enable API settings. Call Event URL Callback & Relay Event URL Callback When the call status changes, it will trigger an HTTP GET request to call a URL address.
  • Page 18: Multicast

    SL50 Network Column Speaker User Guide API Settings Using the API interface to realize features such as device linkage, call control, relay control, and play sound by the systems. Note: Authentication and encryption are not used in the API interface, so please pay attention to the security of the network environment when opening and using these API interfaces.
  • Page 19 SL50 Network Column Speaker User Guide Multicast  Priority: Priority from highest 9 to lowest 1.  Multicast Address: The multicast address range is 224.0.0.0 – 239.255.255.255.  Multicast Port: The multicast port range is 2000 – 65535.  Name: Customize the name of the multicast address.
  • Page 20: Prompt Language

    SL50 Network Column Speaker User Guide 5.4 Prompt Language The language of local voice prompts, like IP address announcements. Currently, only Chinese and English are provided. Please go to Advanced ---> Prompt Language page to set a voice prompt language.
  • Page 21: Onvif Settings

    If the user has installed a VMS that supports ONVIF, they can register ZYCOO network devices that support ONVIF on it for operation. Please go to Advanced ---> ONVIF Settings to configure the ONVIF settings. For detailed multi-platform configuration guide, please refer to the ONVIF Feature Guide document on the ZYCOO official website.
  • Page 22: System Settings

    6. System Settings 6.1 Network SL50 uses DHCP to dynamically obtain IP addresses by default. To change the IP assignment from DHCP to Static IP, please go to System--> Network page. Turn the DHCP switch button off to show the network parameter settings.
  • Page 23: Time

    Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be used. 6.2 Time SL50 obtains the time from the network time servers using NTP. To change the NTP settings, please go to System --> Time page. Time Settings ...
  • Page 24: Upgrade

    SL50 Network Column Speaker User Guide Web Password Settings  Old Password: This setting represents the current user password.  New Password: This setting represents the new password user would like to set 6.4 Upgrade To upgrade the device’s firmware, please go to System --> Upgrade page.
  • Page 25: Reboot & Reset

    10 seconds. After the restart is complete, refresh the page to log in again. If you need to restore the factory settings of the SL50, you can reset it through this page or you can press and hold the RST button for more than 10 seconds and release it. After hearing the broadcast voice, the device will enter the state of restoration.
  • Page 26 SL50 Network Column Speaker User Guide Reboot Schedule When the Reboot Schedule feature is Enabled, you can set up the automatic reboot daily, weekly, or monthly at a specified time.
  • Page 27: Maintenance

    SL50 Network Column Speaker User Guide 7. Maintenance 7.1 Diagnostic Ping is a network administration utility or tool used to test connectivity on an IP network. Input other devices' IP addresses and click on the submit button to trace the network route.
  • Page 28: Import/Export

    SL50 Network Column Speaker User Guide 7.3 Import/Export This page is used to import and export the current configuration of the device, and you may use this configuration file to backup and/or recover. Both YAML and JSON formats are supported.
  • Page 29 SL50 Network Column Speaker User Guide Auto Provisioning 7.5 Test The detection feature provides an option for the user to check whether the speaker, microphone and relay will work functionally before registering it to the server. Please go to Maintenance --> Test page to test whether the component is working properly.
