LawnMaster CLBL2406 - Cordless Sweeper Manual

warning Read all safety rules and instructions carefully before operating this tool.

PRODUCT SPECIFICATIONS

24V LITHIUM-ION CORDLESS SWEEPER

Type: Cordless, battery-powered

Battery: 24Vd.c., 2.0Ah Lithium-Ion

Max Air Volume: 135 CFM

Max Air Speed: 135 MPH

Weight: 2.43 lbs (1.10 kg) without battery

Charger

Model No: 24LSC01-ETL

Rated Input Voltage: 100-240VAC 50-60Hz

Rated Output Voltage: 24 V

Rated Output Current: 500 mA

Charging Time: approx. 3-5h

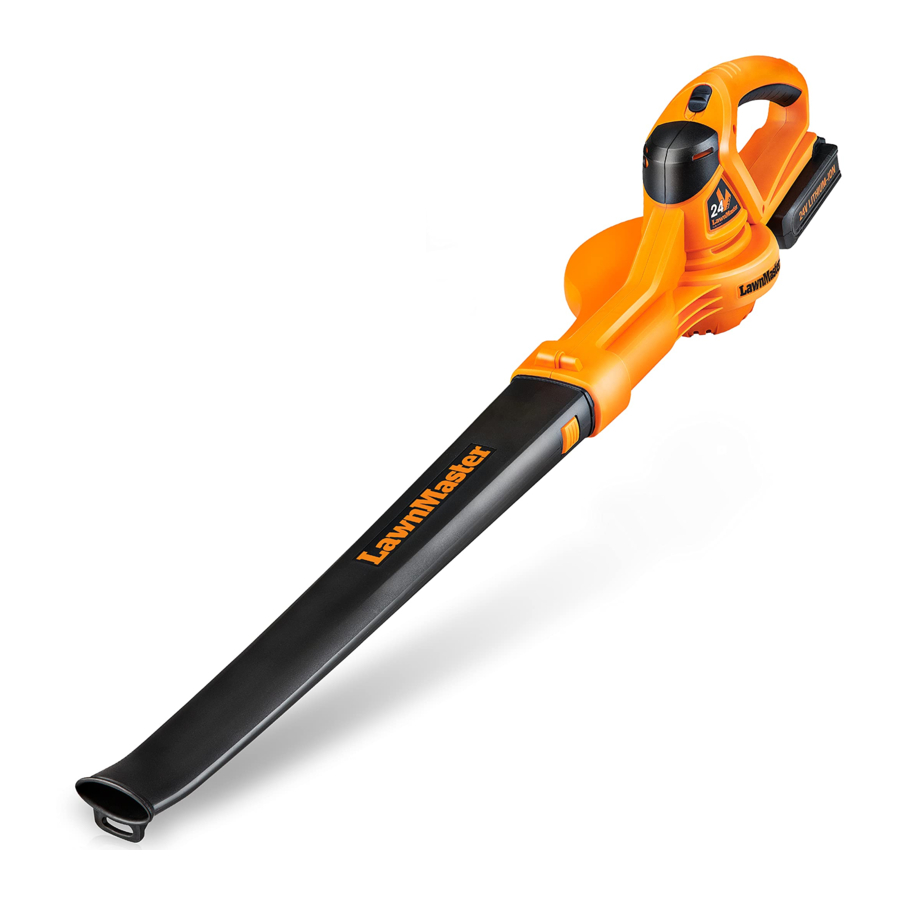

KNOW YOUR SWEEPER

KNOW YOUR SWEEPER

  1. Handle
  2. Power Switch
  3. Sweeper Tube
  4. High Velocity Tip
  5. Battery Charger
  6. 24V max*, 2.0 Ah Lithium-Ion Battery

The safe use of this product requires an understanding of the information on the product and in this operator's manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

CORDLESS SWEEPER

The cordless sweeper has an ultra-lightweight design which is great for extended use and creates less fatigue.

SWEEPER TUBE

The sweeper tube can be easily installed on the sweeper without any additional tools.

ASSEMBLY

BATTERY


The battery pack is not charged when it is purchased. Before using the sweeper for the first time, place the battery pack in the battery charge and charge for 3-5 hour. Make sure to read all safety precautions, and follow the instructions in the Battery and Charger section. With regular use, it will need shorter charging time. If storing for a prolonged period of time, remove the battery. When ready to use again, charge the battery pack for at least 3-5 hour again.

TO REMOVE (See Figure 2)

TO REMOVE

  • Press the release button on the battery pack and remove it from the product.
  • Grasp the sweeper firmly, and pull the battery pack out of the handle.

NOTE: The battery pack fits into the bottom of handle snugly in order to prevent accidental dislodging. It may require a strong pull to remove it.

TO INSTALL (See Figure 2)

  • Align the tongue of the battery pack with the cavity in the sweeper housing.
  • Grasp the sweeper firmly.
  • Push the battery pack into the handle until the latch locks into place.
  • Do not use force when inserting the battery pack. It should slide into position and "click".


Follow these instructions in order to avoid injury and to reduce the risk of electric shock or fire:

  • Replace the battery pack or the charger immediately if the battery case or charger cord is damaged.
  • Verify that the switch is in the OFF position before inserting or removing the battery pack.
  • Verify that the battery pack is removed and the switch is in the OFF position before inspecting, adjusting, or performing maintenance on any part of the sweeper.
  • Read, understand, and follow the instructions contained in the section entitled Battery Charging Procedure.

FOR BLOWING (See Figure 3)

FOR BLOWING

  • Align the widest end of the sweeper tube with the front opening on the sweeper.
  • Slide the nozzle over the sweeper outlet opening until the latch on the sweeper is inserted into the opening on the nozzle and snaps into place.

BATTERY AND CHARGER

BECOME FAMILIAR WITH THE CHARGER (See Figure 4)

BECOME FAMILIAR WITH THE CHARGER

Before attempting to use this charger, become familiar with all of its operating features and safety requirements.

This ISM device complies with Canadian ICES-003.

CHARGING THE BATTERY PACK (See Figure 5)

  • If any part of the charger is missing or damaged, do not operate it until the part is repaired or replaced. Failure to heed this warning could result in possible serious injury.
  • Check the voltage! The voltage must comply with the information on the rating label!

BATTERY CHARGING PROCEDURE:

CHARGING THE BATTERY PACK

  • Align the battery pack to the slots on the charger and slide it in until it locks in place.
  • Connect the charger to the power supply.
  • Allow sufficient charging time (3-5 hours), and then disconnect the charger from the power supply.
  • Press the release button on the battery pack and remove battery from charger.

NOTE: It is normal for the battery pack and charger to become warm (but not hot) during charging process. If the battery does not charge properly, check to make sure the electrical outlet is "live".

NOTE: Always charge the battery before storage! To reduce risk of fire, never leave the battery connected with the charger for more than 24 hours!

CHARGER INDICATORS

  • The lights on the charger indicate the charger status.
Symbol Indicator lights (22) Status
red, blinking technical defect
red, continuous charging
green, continuous fully charged

BATTERY LED INDICATORS (SEE FIGS. 6-7)

  • Check the battery pack capacity pressing the button.

BATTERY LED INDICATORS

LEDs on battery
(Continuous lighting)
Battery Capacity
4 LEDs (inc 2 green) Fully charged
3 LEDs (inc 1 green) > 50%
2 LEDs (orange & green) > 25%
1 LEDs (red only) < 25%
Recharge required

STARTING AND STOPPING

  • Make sure the on/off switch is in its off position.
  • Attach the battery pack to the product. Ensure it snaps in place.
  • Your product is now ready to be used.

OPERATION

STARTING/STOPPING THE SWEEPER (See Figure 8)

STARTING/STOPPING THE SWEEPER

  • To start the sweeper, place the power switch in the ON ( I ) position.
  • To stop the sweeper, place the power switch in the OFF (O) position.

USE THE SWEEPER (See Figure 9)

USE THE SWEEPER

  • Blow debris or grass clippings off of driveways, sidewalks, patios, parks, parking lots, etc.
  • Gather grass clippings, straw, or leaves into piles. Remove debris from comers, around joints, and between bricks.

NOTE: Your LawnMaster sweeper is designed to sweep and clean hard surfaces; such as patios, driveways, decks, garages and sidewalks.

MAINTENANCE


When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.
Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
To avoid serious personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance.

CLEANING

  • Remove the battery pack.
  • Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of obstructions, sawdust, and wood chips. Do not spray, wash, or immerse the air vents in water.
  • Wipe off the housing and the plastic components using a moist, soft cloth. Do not use strong solvents or detergents on the plastic housing or plastic components.
    Certain household cleaners may cause damage, and may cause a shock hazard.

BATTERY PACK

  • Store the battery pack fully charged.
  • Recharge the battery pack whenever there is a noticeable reduction in the performance. Do not allow the battery pack to become completely discharged.
  • Do not recharge a battery pack that is already fully charged. Overcharging shortens battery life.
  • Once the battery pack is fully charged, remove the battery from the charger and disconnect the charger from the outlet.
  • Do not store the battery pack on the tool or in the charger.
  • Recharge the battery at a temperature between 23°F and 122°F. If the battery pack is hot, allow it to cool down before recharging.

CHARGER MAINTENANCE

  • Keep the charger clean and clear of debris. Do not allow foreign material into the recessed cavity or on the contacts. Wipe with a dry cloth. Do not use solvents, water, or place in wet conditions.
  • Always unplug the charger when there is no battery pack in it.
  • Give the batteries a full charge before placing in storage. Do not recharge a fully charged battery pack. Overcharging shortens the battery life.
  • Recharge the battery pack whenever there is a noticeable reduction in the performance. Never let the batteries become completely discharged.
  • Keep the charger stored in normal room temperature. Do not store it in excessive heat. Do not use in direct sunlight.
  • Disconnect the charger from the AC power outlet when not in use and once battery has reached a full charge.

TROUBLESHOOTING

Suspected malfunctions, are often due to causes that the user can fix themselves.

Before check the product using this section. In most cases the problem can be solved quickly.


Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself!

PROBLEM POSSIBLE CAUSE SOLUTION
Motor fails to start when power switch is turned on. Battery is not secure. To secure the battery pack, make sure the latches on the top of the battery pack snap into place.
Battery is not charged. Charge the battery pack according to the instructions included with your model.
Unit will not start. Defective power switch. If within warranty period return product to retailer of purchase.
Unit will not blow. Blocked tube. Clear the blockage.

EXPLODED VIEW

CLBL2406 MANUAL EXPLODED VIEW
EXPLODED VIEW

PARTS LIST

CLBL2406 MANUAL EXPLODED VIEW PARTS LIST

ITEM NO. PART NO. DESCRIPTION QTY
1 TGDQ24.10.00 Connection assy 1
2 TGDQ30.15.00 PCB board 1
3 TODXL1.83.UL Cable 1
4 WODQ10.03.06 Switch 1
5 GF50DC.10.03 Switch push button 1
6 GF50DC.10.05 Motor anti-vibrating bar 1
7 GF50DC.10.30 Left motor housing 1
8 GF50DC.10.01 Left decorating cover 1
9 GF50DC.10.06 Rubber washer 1
10 GF50DC.00.01 Tube 1
11 GF50DC.10.50 Motor 1
12 GF50DC.10.04 Ring 1
13 GF50DC.A0.01 Right housing 1
13.1 GF50DC.10.40 Right housing 1
13.2 BOA2SD.39.16 Screw 12
14 GF50DC.10.02 Right decorating cover 1
15 FO1111.02.00.GF Charger 1
16 FG1401.01.00.D Battery 1

GENERAL SAFETY RULES


Read and understand all instructions before using this product. Failure to follow all instructions listed below may result in electric shock, fire, and / or serious personal injury.

  • Know your sweeper. Read operator's manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this sweeper. Following this rule will reduce the risk of electric shock, fire, or serious injury.
  • Do not leave sweeper unattended or running when turned on.
  • Do not allow to be used as a toy. Close attention is necessary when used by or near children.
  • Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one sweeper may create a risk of injury when used on another sweeper.
  • Do not handle battery or sweeper with wet hands.
  • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
  • Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
  • Turn off all controls before removing battery.
  • Use Right Appliance - Do not use appliance for any job except that for which it is intended.
  • Don't Force Appliance - It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
  • Use extra care when cleaning on stairs.
  • Do not operate sweepers in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Sweepers create sparks which may ignite the dust or fumes.
  • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
  • Keep children away - All visitors should be kept at a distance from work area.
  • A battery operated sweeper with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery.
  • For use only with Lawnmaster 24V Rechargeable Li-ion Batteries. Use of any other batteries may create a risk of fire.
  • Do not operate charger with a damaged cord or plug, which could cause shorting and electric shock. If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the Parts List of this manual.
  • Stay alert, watch what you are doing and use common sense when operating a sweeper. Do not use sweeper while tired, upset, or under the influence of drugs, alcohol, or medication. A moment of inattention while operating sweepers may result in serious personal injury.
  • Dress Properly - Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.
  • Secure long hair above shoulder level to prevent entanglement in moving parts.
  • Avoid accidental starting. Be sure switch is in the locked or off position before inserting battery pack. Carrying sweepers with your finger on the switch or inserting the battery pack into a sweeper with the switch on invites accidents.
  • Use safety equipment. Always wear eye protection. Dusk mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.
  • Do not wear loose clothing or jewelry. Contain long hair. Loose clothes, jewelry, or long hair can be drawn into air vents.
  • Do not use on a ladder, rooftop, tree, or other unstable support. Stable footing on a solid surface enables better control of the sweeper in unexpected situations.
  • Do not use sweeper if switch does not turn it on or off. A sweeper that cannot be controlled with the switch is dangerous and must be repaired.
  • For household use only.
  • Remove or disconnect battery before servicing, cleaning or removing material from the gardening appliance. Such preventive safety measures reduce the risk of starting the sweeper accidentally.
  • Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
  • Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the sweeper's operation. If damaged, have the sweeper serviced before using. Many accidents are caused by poorly maintained sweepers.
  • Keep the sweeper and its handle dry, clean and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong solvents to clean your sweeper. Following this rule will reduce the risk of loss of control and deterioration of the enclosure plastic.
  • Always wear safety glasses with side shields. Everyday glasses have only impact resistant lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury.
  • Always wear eye protection with side shields marked to comply with ANSI Z87.1 along with hearing protection when operating this equipment.
  • Use Safety Glasses - Always use face or dust mask if operation is dusty.
  • Battery sweepers do not have to be plugged into an electrical outlet; therefore, they are always in operation condition. Beware of possible hazards when not using your battery powered sweeper or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.
  • Do not place battery powered sweepers or their batteries near fire or heat. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions.
  • Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
  • Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.
  • Avoid Dangerous Environment - Don't use appliances in damp or wet locations. Don't use in rain.
  • Wear heavy long pants, long sleeves, boots, and gloves. Avoid loose garments or jewelry that could get caught in moving parts of the machine or its motor.
  • Do not operate the equipment while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve footing on slippery surfaces.
  • Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.
  • Do not charge sweeper battery in a damp or wet location. Following this rule will reduce the risk of electric shock.
  • Don't Overreach - Keep proper footing and balance at all times. Overreaching can result in loss of balance.
  • Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the machine.
  • Check Damaged Parts - Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.
  • Do not point the sweeper nozzle in the direction of people or pets.
  • Never run the unit without the proper equipment attached. Always ensure the sweeper tubes are installed.
  • Store Idle Appliances Indoors - When not in use, appliances should be stored indoors in dry, and high or locked-up place - out of reach of children.
  • Do not store outside or in vehicles.
  • Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.
  • Do not incinerate this sweeper even if it is severely damaged. The battery can explode in a fire.
  • Sweeper service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury.
  • When servicing a sweeper, use only identical replacement parts. Following instructions in the MAINTENANCE section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of shock or injury.
  • Never use any sweeper near fire or hot ashes. Use near fires or ashes can spread fires and result in serious injury and/or property damage.
  • Never use sweeper to spread chemicals, fertilizers, or any other toxic substances. Spreading these substances could result in serious injury to the operator or bystanders.
  • Never place sweeper on any surface, except a hard, clean surface when motor is running. Gravel, sand, and other debris can be picked up by the air inlet and thrown at the operator or bystanders, causing possible serious injuries.

CHILD SAFETY

Tragic accidents can occur if the operator is not aware of the presence of children.

  • Keep children out of the working area and under the watchful care of a responsible adult.
  • Do not allow children under the age of 14 to operate this hedger. Children who are 14 years of age and older must read and understand the operating instructions and safety rules in this manual and must be trained and supervised by a parent.
  • Stay alert, and turn the hedger off if a child or any other person enters the working area.
  • Look behind and down for small children before and while working backwards.
  • Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your view of a child who may run into the path of the hedger.


(PROPOSITION 65)

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

  • Lead from lead-based paints
  • Crystalline silica from bricks and cement and other masonry products, and
  • Arsenic and chromium from chemically treated lumber.

Your risk of exposure to these chemicals varies depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL & SIGNAL MEANING
Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in property damage.

SERVICE

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair. When servicing, use only identical replacement parts.


To avoid serious personal injury, do not attempt to use this product until you have read this Owner's Manual thoroughly and understand it completely. If you do not understand the warnings and instructions in this Owner's Manual, do not use this product. Call the Toll-free Helpline (866)-3848432 for assistance. The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before operating a power tool, always wear safety goggles, safety glasses with side shields, or a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection that is marked to comply with ANSI Z87.1.


The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.

SAVE THESE INSTRUCTIONS

Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download LawnMaster CLBL2406 - Cordless Sweeper Manual

Advertisement

Need help?

Need help?

Do you have a question about the CLBL2406 and is the answer not in the manual?

Questions and answers

Table of Contents
