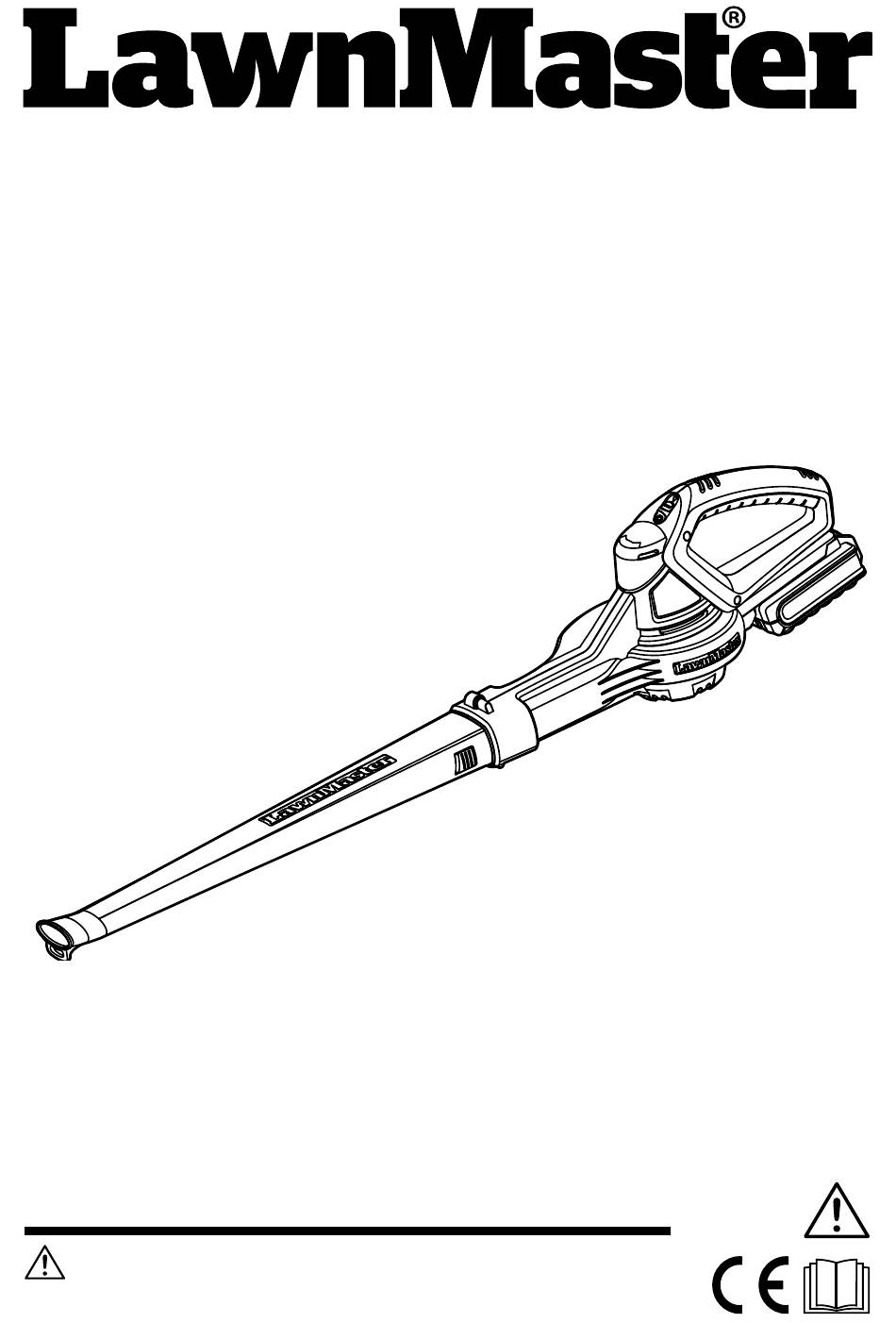

Instruction Manual

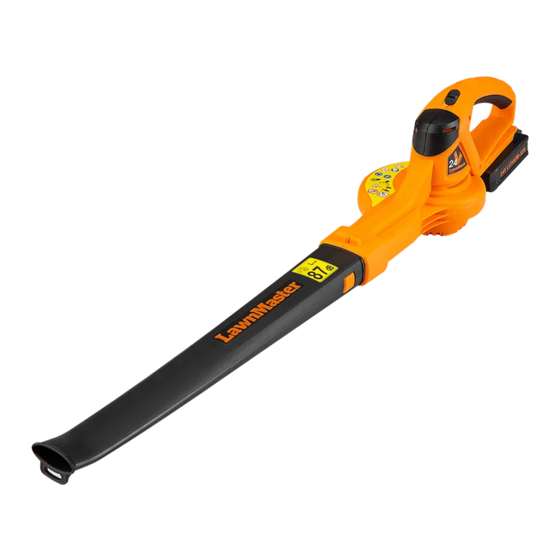

24V Lithium-Ion Cordless Blower CLBL2406-1
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.
Advertisement
Table of Contents
Related Manuals for LawnMaster CLBL2406-1
Summary of Contents for LawnMaster CLBL2406-1
- Page 1 Instruction Manual 24V Lithium-Ion Cordless Blower CLBL2406-1 Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Section Page Symbols Safety Information 7-13 In the Box Assembly Operation 15-16 Maintenance Troubleshooting Technical Data Recycling and Disposal... -
Page 5: Symbols
SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Wear eye protection. Wear hearing protection. Do not use as a step. Do not expose to rain. - Page 6 SYMBOLS SYMBOL DESIGNATION/EXPLANATION Do not dispose of battery packs in rivers or immerse in water. Do not dispose of battery packs in fire. Do not subject the battery to direct sunlight over long periods and do not leave it on or near a heat source (max. 60°C). Recycle electrical waste products in an environmentally safe way where facilities exist.
-
Page 7: Safety Information
SAFETY INFORMATION WARNING READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. Training ■ Read the instructions carefully. Be familiar with the controls and the correct use of the machine. ■ Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator. - Page 8 SAFETY INFORMATION where ejected material could cause injury. ■ Before using, always visually inspect to see, that the fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.
- Page 9 SAFETY INFORMATION blower. Make sure that all moving parts have come to a complete stop - whenever you leave the machine, - before checking, cleaning or working on the machine. ■ Handle the unit with care. Clean the ventilation slots regularly;...
- Page 10 SAFETY INFORMATION Battery Safety Information ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
- Page 11 SAFETY INFORMATION minutes, then seek immediate medical attention. ■ When the battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
- Page 12 SAFETY INFORMATION agent of the same or a fully qualified person in order to prevent hazards. ■ The plug of the charger must match the outlet. Never modify the plug in any way. Unmodified plugs and matching outlets will reduce the risk of electric shock. ■...
-
Page 13: In The Box
SAFETY INFORMATION considered unauthorised use and relieves the manufacturer from his or her legal liability. IN THE BOX 1. Handle 7. Release Button 2. Blower Tube 8. Battery Charger with VDE plug (included in 3. High Velocity Tip mainland EU products only) 4. -
Page 14: Assembly
ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. Blower Assembly (See Fig. 1) ■ Align the widest end of the blower tube with the front opening on the blower. ■... -
Page 15: Operation
Battery Pack Operation WARNING Use only with 24V Lawnmaster® HYCH0132400500B or HYCH0132400500G battery charger. The battery charger supplied is specifically designed for the lithium-ion battery used in this garden appliance and may cause risk of fire if used with a non-compatible battery pack. - Page 16 OPERATION ■ Charger LED ( 1 ) • If the battery is not connected to the charger, a continuous green LED light indicates that the plug is plugged into an outlet socket and the battery charger is ready for operation. •...
-
Page 17: Maintenance
MAINTENANCE WARNING When servicing, use only recommended replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING To avoid serious personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance. General Maintenance ■... -
Page 18: Troubleshooting
TROUBLESHOOTING WARNING ONLY PERFORM THE STEPS DESCRIBED WITHIN THESE INSTRUCTIONS! WARNING REMOVE THE BATTERY PACK BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION To secure the battery pack, Make sure the latches on the The battery is not secure. bottom of the battery pack snap into place. -
Page 19: Technical Data
TECHNICAL DATA 24V Cordless Blower Type Cordless, Battery-powered Voltage Max air volume 2.8m /min Max air speed 53m/s Sound Pressure Level (L 74dB(A) K=3dB Sound Power Level (L ) Guaranteed 96dB(A) Sound Power Level (L ) Measured 85.1dB(A) K=2dB Vibration (a ≤2.5m/s Weight (Without 2.0Ah Battery) 1.11kg... -
Page 20: Recycling And Disposal
RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes throughout the EU. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly. - Page 22 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5...
- Page 24 CLBL2406-1 Suzhou Cleva Electric Appliance Co. Ltd 8 Ting Rong Street, Suzhou Industrial District 215122 Suzhou, Jiangsu Province, P.R.C www.cleva-europe.com...
