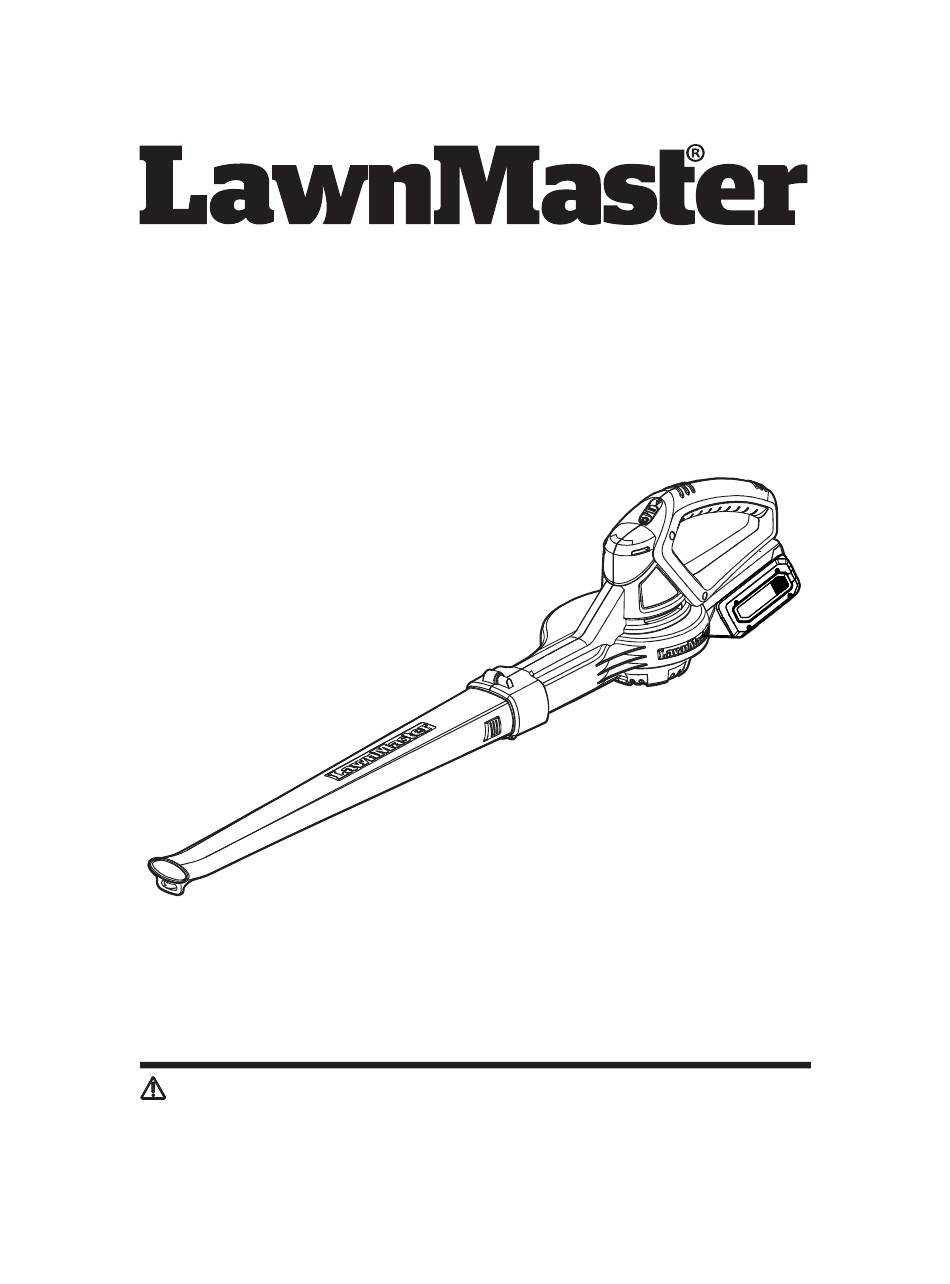

Operator's Manual

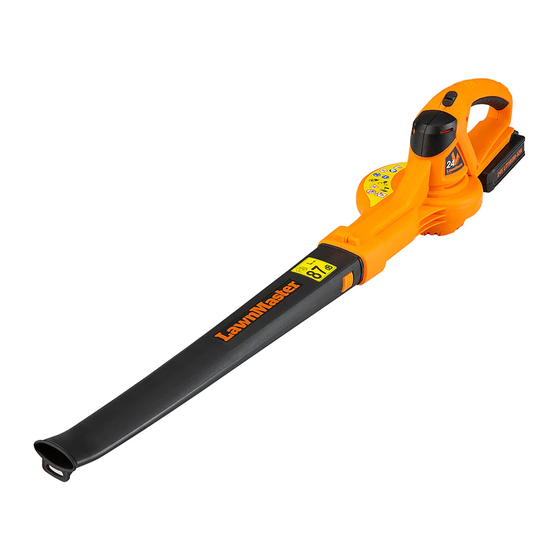

24V MAX* Lithium-ion Cordless Blower CLBL2406
Save this manual for future reference
* Maximum initial battery workload voltage (measured without a workload) is 24 volts.
Nominal voltage is 21.6 volts.
Battery Model Number is 24LB4005-CN
Charger Model Number is 24LFC14-ETL
Read all safety rules and instructions carefully before operating this tool.
Distributed By: Suzhou Cleva Electric Appliance Co., Ltd.
NO.8 Ting Rong Street 215122 Suzhou - China
Advertisement
Table of Contents
Related Manuals for LawnMaster CLBL2406
Summary of Contents for LawnMaster CLBL2406
- Page 1 Operator's Manual 24V MAX* Lithium-ion Cordless Blower CLBL2406 Save this manual for future reference * Maximum initial battery workload voltage (measured without a workload) is 24 volts. Nominal voltage is 21.6 volts. Battery Model Number is 24LB4005-CN Charger Model Number is 24LFC14-ETL Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Page TABLE OF CONTENTS SPECIFICATIONS IMPORTANT SAFETY INSTRUCTIONS SYMBOLS KNOW YOUR BLOWER 10-11 ASSEMBLY 12-14 BATTERY PACK AND CHARGER 15-17 OPERATION MAINTENANCE 19-20 ENVIRONMENTALLY SAFE BATTERY DISPOSAL TROUBLESHOOTING ® LAWNMASTER WARRANTY EXPLODED VIEW PARTS LIST NOTES... -
Page 3: Specifications
SPECIFICATIONS 24V MAX* CORDLESS BLOWER Type Cordless, Battery-powered Max Air Volume 135 CFM Max Air Speed 135 MPH Weight with Battery 2.43 lbs (1.10 kg) BATTERY PACK Model Number 24LB4005-CN Rated Voltage of Battery 24 V Max* D.C Capacity of Battery 4.0 Ah Battery Type Lithium-ion... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. injury: Accessories that may be suitable for one blower may create a risk of injury when used with another blower. water, do not try to operate and take it to a service center. parts. - Page 5 IMPORTANT SAFETY INSTRUCTIONS accidents. or storing blower. Such preventive safety measures reduce the risk of starting the blower accidentally. be used for appropriate conditions. enables better control of the blower in unexpected situations. switch is dangerous and must be repaired. preventive safety measures reduce the risk of starting the blower accidentally.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS ® 24LB4005-CN, 24LB4005-C, 24LB1304, 24LB2004, 24LB2605, or 24LB4005 lithium-ion batteries. BATTERY PACK ® 24LFC14-ETL, 24LFC02-ETL or 24LSC01- ETL chargers. pack. shock. explosion and possibly injury. eyes or skin. It may be toxic if swallowed. from the battery may cause irritation or burns. dropped or received a sharp blow.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the Parts List of this manual. the risk of electric shock. If the charger cord is damaged, replace the charger with an identical model as listed in this manual.
-
Page 8: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Watt... - Page 9 SYMBOLS SYMBOL NAME DESIGNATION/EXPLANATION Do not expose battery packs to heat in excess of Heat Alert 140°F (60°C). This product uses lithium-ion batteries. Local, state, or federal laws may prohibit disposal of batteries in Recycle Symbol ordinary trash. Consult your local waste authority disposal options.
-
Page 10: Know Your Blower
KNOW YOUR BLOWER... - Page 11 KNOW YOUR BLOWER Components 1. Handle 2. Power Switch 3. Blower Tube 4. High Velocity Tip 5. Battery Release Button 6. Battery Pack (X2) 7. Battery Charger KNOW YOUR BLOWER this product, familiarize yourself with all operating features and safety rules. CORDLESS BLOWER This cordless blower has a lightweight design that is great for reducing user fatigue in extended use.
-
Page 12: Assembly
ASSEMBLY UNPACKING the packing list are included. the product. 8432). PACKING LIST (1) Blower (1) Blower Tube (2) 24V 4.0Ah Lithium-ion Battery Packs (shared with mower) (1) 24V 2.5A Battery Charger (shared with mower) (1) Operator's Manual WARNING are damaged or missing, do not operate this product until the parts are replaced. Failure to heed this warning so could result in serious personal injury. - Page 13 ASSEMBLY ATTACHING THE BLOWER TUBE 1. Align the widest end of the blower tube with the front opening on the blower. 2. Slide the blower tube over the opening until it snaps onto the latch and the blower tube is secure in place.
- Page 14 ASSEMBLY Release Button Fig. 2 WARNING adjusting, or performing maintenance on any part of the blower.
-
Page 15: Battery Pack And Charger
BATTERY PACK AND CHARGER BATTERY CHARGING ® 1. Use only with 24V LawnMaster designed for the lithium-ion battery used in this tool. 2. Check the power voltage! Battery chargers operate on 120V. 3. The battery is charged between 40°F (4°C) and 104°F (40°C). This ensures an optimum battery service life. - Page 16 BATTERY PACK AND CHARGER the battery pack. If the LED status repeats a second time, try to charge another identical battery. If the battery charges normally, dispose of the defective battery pack (see Environmental Safe Battery Disposal section). normal), the charger may be defective. Replace with a new one. 6.
- Page 17 BATTERY PACK AND CHARGER WARNING If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new one. Failure to heed this warning could result in possible serious injury. Check the voltage! The voltage must comply with the information on the rating label. 1.
-
Page 18: Operation
2. Gather grass clippings, straw, or leaves into piles. Remove debris from comers, around joints, and between bricks. ® NOTE: Your Lawnmaster blower is designed to blow and clean hard surfaces, such as patios, driveways, decks, garages, and sidewalks. Fig. 5... -
Page 19: Maintenance
MAINTENANCE WARNING When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. - Page 20 MAINTENANCE CHARGER MAINTENANCE 1. Keep the charger clean and clear of debris. Do not allow foreign material into the recessed cavity or on the contacts. Wipe with a dry cloth. Do not use solvents, water, or place in wet conditions. 2.
-
Page 21: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this battery pack: lithium-ion, a toxic material. WARNING environment. Before disposing of damaged or worn-out lithium-ion battery packs, contact your local instructions. WARNING If the battery pack cracks or breaks, with or without leaks, do not recharge it and do not use. Dispose of it and replace with a new battery pack. -
Page 22: Troubleshooting
TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service center PROBLEM POSSIBLE CAUSE SOLUTION To secure the battery pack, make sure The battery is not secure. the latches on the bottom of the battery pack snap into place. -
Page 23: Lawnmaster ® Warranty
LAWNMASTER ® WARRANTY... -
Page 24: Exploded View
EXPLODED VIEW... -
Page 25: Parts List
PARTS LIST Key Number Part Number Description Quantity Motor Housing Assembly 211079108 Blower Tube Micro Switch Switch Push Button Motor Assembly 241003111 Charger 211070122 Battery Replacement parts highlighted in grey are available for after sales purchase. Replacement of repair or service dealer or Customer Service at 866-384-8432. -
Page 26: Notes
NOTES...
