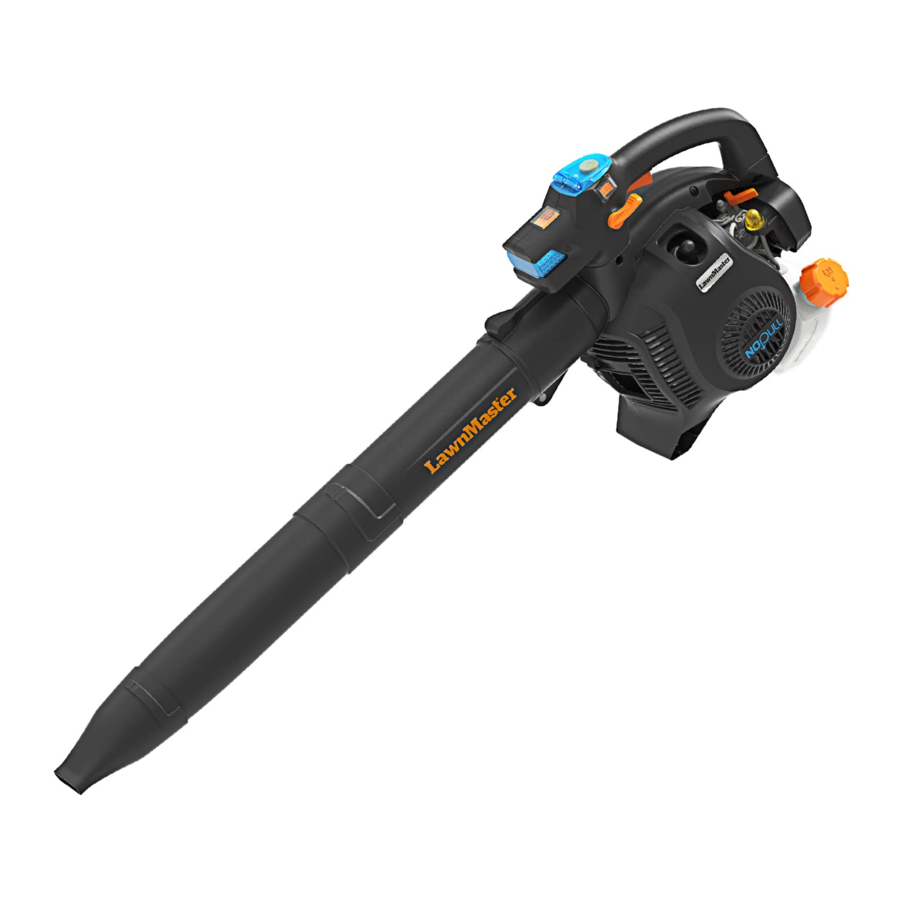

LawnMaster NPTBL26A - Leaf Blower Manual

NOTICE: Only use unleaded gasoline containing up to 10% ethanol. Do not use E15 or E85 fuel in this blower. It will violate the federal law, damage the blower and void your warranty.

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL	MEANING
	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
NOTICE	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

KNOW YOUR BLOWER

The safe use of this product requires an understanding of the information on the product and in this Operator's Manual, as well as knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

Components

1. Stop Switch
2. Handle
3. Cruise Control Lever
4. Choke Lever
5. Primer Bulb
6. Air Filter Cover
7. Fuel Tank Cap
8. Fuel Tank

9. Spark Plug Cap
10. Muffler with Spark Arrestor
11. Rear Blower Tube
12. Front Blower Tube
13. Concentrator Nozzle
14. Battery Pack
15. Charging Port
16. Battery Release Button

17. Start Button
18. Battery Indicator
19. Throttle Lever
20. Start Button Cover
21. Engine Housing
22. Air Filter Knob
23. Charger
24. Charging Connector

ASSEMBLY

This product requires assembly.

• Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
• If any parts are damaged or missing, please return the product from place of purchase and exchange for a new one or call the service center.

PACKING LIST

(1) Blower
(1) Front Blower Tube
(1) Rear Blower Tube
(1) Concentrator Nozzle
(1) Operator's Manual
(1) 7.2V Lithium-Ion 2.0Ah Battery Pack
(1) Battery Charger
(1) Spanner
(1) Socket Wrench

If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the product when assembling parts.

ASSEMBLING THE BLOWER TUBES

• The nut on the screw securing the front opening on the blower shall be sufficiently loose to insert the blower tube into the front opening on the blower. Turn the nut counter clockwise using the spanner provided to loosen it (Fig. 1).


• Insert the rear blower tube into the front opening on the blower. Pay attention that the notch on the blower tube aligns with the middle of the upper part of the front opening. Make sure the raised tab on lower part of the blower tube aligns with the slot on the lower part of the front opening. Insert the rear blower tube into place and secure the nut tight using the spanner (Fig. 2 & 3).


• Install the widest end of the front blower tube onto the rear blower tube. Align the indexing tabs with correct sized index channels; once achieved, turn clockwise to lock into place (Fig. 4).

• Install the concentrator nozzle onto the front blower tube. Align the indexing tabs with correct sized index channels; once achieved, turn clockwise to lock into place. Make sure the blower tubes and the concentrator nozzle are assembled securely into place. (Fig. 5 & 6).


NOTE: The concentrator nozzle is optional. Assemble it when high air speed is required.

• To remove the concentrator nozzle and front blower tube, rotate the concentrator nozzle and front blower tube counter clockwise to unlock them and remove.
• To remove the rear blower tube, loosen the nut and remove the rear blower tube from the front opening on the blower.

INSTALLING AND REMOVING THE BATTERY PACK

To install the battery pack:

• Align the battery pack with the battery slot.
• Insert the battery pack into the battery slot until the battery pack secures into place. Make sure the battery inserted in the correct direction (Fig. 7).

• Do not use force when inserting the battery pack. It should slide into position and "click".

To remove the battery pack:

• Locate the battery release button, press and hold the button up (Fig. 8).
• Slide the battery pack off the battery slot.

BATTERY PACK AND CHARGER

BATTERY CHARGING

• Use only with 8.4V LawnMaster ® YLS0042-T084045 battery charger. The battery charger supplied is specifically designed for the lithium-ion battery used in this tool.
• Check the power voltage! Battery chargers operate on 100-240V AC.
• Charge the battery between 40°F (4°C) and 100°F (38°C) to ensure an optimum battery service life.
• Protect the battery from heat, from continuous exposure to sun, and keep away from radiation or other heat sources. Do not leave the battery in the tool in direct sunlight over long periods.
• The battery is supplied uncharged. Fully charge the battery before using the tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not affect the battery.

CHARGER LEDS

• If the battery is not connected to the charger, a continuous green LED light indicates that the plug is plugged into an outlet socket and the battery charger is ready for operation.
• Charging: a continuous red LED on the charger indicates that the battery is charging normally.
• Charged: a continuous green LED on the charger indicates that the battery is ready for use.

INDICATOR LIGHTS	STATUS
Green, continuous	Fully charged / Connected to power supply (Standby)
Red, continuous	Charging

• After continuous or repeated charging cycles without interruption, the charger may warm up. This is normal and does not indicate a technical defect of the battery charger.

CHARGING THE BATTERY PACK

If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new one. Failure to heed this warning could result in possible serious injury. Check the voltage! The voltage must comply with the information on the rating label.

• Insert the charging connector into the charging port on the battery (Fig. 9).

• Connect the charger to the power supply.
• Allow sufficient charging time (see Specifications), and then disconnect the charger from the power supply.
• Remove the charging connector from the charging port (Fig. 10).


NOTE: It is normal for the battery pack and the charger to become warm (but not hot) during the charging process. If the battery does not charge properly, check to make sure the electrical outlet is operational. Always charge the battery before storage!

OPERATION

Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with head protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

Do not use any attachments or accessories not recommended by the manufacturer or retailer of this product. The use of attachments or accessories not recommended can result in serious personal injury. Before each use, inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.

HANDLING THE FUEL

The fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result.

• Mix and store in a container approved for storing fuel.
• DO NOT smoke when handling or close to fuel.
• DO NOT allow flames or sparks near the fuel.
• Maintain the pressure in the fuel tank; always loosen the fuel tank cap slowly allowing the pressure to equalize. NEVER refuel a blower when the engine is HOT or RUNNING!
• DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks outdoors over bare ground.
• DO NOT overfill the fuel tank and clean up spills immediately.
• Securely tighten the fuel tank cap and close the fuel container after refueling.
• Check for fuel leakages. If a fuel leakage is present, remove the battery and do not use the blower until the leakage is repaired.
• Move at least 10 ft. (3 m) from refueling location before starting the engine.

FUEL MIXTURE

This blower is powered by a 2-cycle engine; the operator is required to use premixed gasoline and 2-cycle lubricant. Prepare a mixture of unleaded gasoline and 2-cycle engine lubricant in a clean container approved for storing gasoline. Only prepare quantities that can be used up within a few days. DO NOT prepare quantities that will need to be stored for more than 30 days.

Recommended Fuel

This engine is certified to operate on unleaded gasoline intended for automotive use. U.S. EPA regulations make it illegal to use gasoline containing higher than 10% ethanol content in outdoor power equipment like your LawnMaster ® power equipment and doing so can void your LawnMaster ® Limited Warranty.

If the proper precautions are taken, however, gasoline containing a 10% quantity of ethanol can safely be used in your LawnMaster ® products.
Much of the gasoline sold throughout the United States contains ethanol. The maximum ethanol content allowed by law for use in outdoor power equipment is limited to 10% (E10). Most small power equipment engines are designed to use no more than a 10% ethanol gasoline blend. If you are not sure of the ethanol content in the gasoline you are purchasing, ask the retailer. If they are unsure, purchase your fuel from another retailer that offers gasoline with no more than 10% ethanol.

NOTE: We recommend you use a high-quality synthetic 2-cycle lubricant in this product. Recommended specification: JASO-FC or above. Mix at 3.2 oz. per gallon (US). Do not use automotive lubricant or 2-cycle outboard lubricant.

Gasoline to Lubricant Mix - 40: 1 Ratio
	GASOLINE	LUBRICANT
	1.0 gal. (US) (3.8 liter)	3.2 oz. (95 ml)
	2.5 gal. (US) (9.5 liter)	8.0 oz. (236 ml)

Mixing Tips

• Always start by filling an approved fuel container with half of the required amount of gasoline.
• Then add the entire amount of 2-cycle lubricant. Close the container and shake to mix the lubricant with the gasoline.
• Add the remaining amount of gasoline, close the fuel container, and shake again.
• Ensure that the fuel is well mixed by shaking the container before filling the fuel tank (Fig. 11).


FILLING THE FUEL TANK

NOTICE: Before each use, ALWAYS shake the fuel container thoroughly to ensure that the fuel is mixed completely.

• Place the tool on a flat, level surface, outdoors.
• Clean the area around the fuel tank and cap to prevent any contamination.
• Loosen the fuel tank cap by turning it counter clockwise and remove (Fig. 12).


• Carefully pour the fuel into the fuel tank, avoiding any spillage.
• DO NOT leave the fuel tank unsealed while it contains fuel. Replace the cap immediately after filling and inspecting the tank. Check that the cap is sealed tightly and wipe clean any spillage that may have occurred.

NOTICE: It is normal for smoke to be emitted from a new engine after first use.

The operation of this tool requires gasoline, an extremely flammable liquid. Always turn off the engine and allow it to cool completely before fueling. Never remove the fuel tank cap or add the fuel to the tool while it is running or the engine is still hot. Make sure to fuel the tool outdoors on a flat, level surface. After fueling, immediately replace the fuel tank cap and tighten it securely. DO NOT fill the fuel tank on the work site; fueling must occur at least 10 ft. from where the operator intends to start the engine. Keep the tool away from smoke, open flames and sparks! Failure to follow these instructions could result in an explosion, fire and cause serious personal injury.

STARTING AND STOPPING THE BLOWER

For cold start:

• Make sure that the battery pack is securely in place.
• Place the blower on a level surface, outdoors.
• Press the primer bulb 5 times.
• Turn the choke lever to the CHOKE position (Fig. 13).


• Lift the start button cover and press the start button until the engine starts (Fig. 14 & 15).

  Then engage the throttle lever to start the blower (Fig. 16). The choke lever will automatically switch to RUN position.


NOTE: If the engine does not start, repeat step 5 until the engine starts.

• If the blower fails to start, check the Troubleshooting section in the manual.

NOTE: This 2-cycle blower is equipped with an automatic choke reset. The user must switch the choke lever to CHOKE position for cold starts. As soon as the throttle lever is engaged, the choke lever will automatically switch to the RUN position.

NOTE: After the engine starts and runs, release the throttle lever and allow the blower to warm up at idle for several minutes.

For warm start:

• Make sure that the battery pack is securely in place.

• Place the blower on a level surface, outdoors.
• Press the primer bulb 5 times.
• Make sure the choke lever in the RUN position.
• Lift the start button cover and press the start button until the engine starts. Then engage the throttle lever to start the blower.

To stop the blower: Press the STOP switch to the stop position "O" until the blower stops (Fig. 17).

BATTERY INDICATOR

A battery indicator is located above the start button, and can be used to indicate the battery status (Fig. 18).

When pushing the start button to start the engine, a green light indicates a fully charged battery; a red light indicates the battery needs to be charged.

CRUISE CONTROL LEVER

The cruise control lever can be used to operate the blower without holding the throttle lever.

• To engage, operate the throttle lever toward the suitable speed position for blowing, and then press down the cruise control lever (Fig. 19).

• To release, lift the cruise control lever up.

USING THE CONCENTRATOR NOZZLE

Use the concentrator nozzle when high air speed is required (Fig. 20).

USING THE BLOWER

Never run the blower without the blower tubes installed. Use of an improperly assembled blower could result in serious personal injury.

Always hold the blower away from your body when operating, keeping clearance between your body and the product. The muffler side of the blower should be away from your body. Any contact with the housing can result in burns and/or other serious personal injury.

Never place blower on top of or near loose debris or gravel. Debris may be sucked into blower intake vent resulting in possible damage to the unit and could result in serious personal injury.

• Start the blower. Refer to Starting and Stopping the Blower section in this manual.
• Hold the blower firmly with one hand. Make sure the air stream can work close to the ground (Fig. 21).

• Blow debris or grass clippings off of driveways, sidewalks, patios, etc.
• Gather grass clippings, or leaves into piles. Blow debris from corners, around joints, and between bricks.

MAINTENANCE

Normal maintenance, replacement or repair of emission control devices and systems may be performed by an authorized service center or qualified individual that uses identical parts. Warranty repairs must be performed by an authorized service center; please contact your service dealer for assistance or Customer Service (Toll Free Number 866-384-8432).

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

Before inspecting, cleaning, or servicing the machine, shut off the engine, wait for all moving parts to stop, and remove the battery pack. Wait until the surfaces cool down. Failure to follow these instructions can result in serious personal injury or property damage.

NOTICE: Occasionally inspect the tool for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Do not operate this tool if parts are damaged or missing. Secure all fasteners and caps prior to using the tool. Please contact your service dealer for assistance or Customer Service (Toll Free Number 866-384-8432).

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean, dry cloths to remove dirt, dust, oil, grease, etc.

Keep all safety devices, air vents, and the motor housing free of dirt and dust. Regularly clean the ventilation slot in your blower using a soft brush or dry cloth.

• Rotate the air filter knob counter clockwise and gently pull off the air filter cover (Fig. 22).

• Remove the air filter (Fig. 23).


NOTE: Inspect the filter for damage and replace with a new filter if necessary.

• Clean the foam filter with warm soapy water and rinse. Air dry the filter.
• Place the air filter back, ensuring that it properly seated onto the base. Installing the filter correctly will decrease the chances of engine wear caused by dirt entering the engine (Fig. 24).
• Replace the air filter cover ensuring the air filter is completely covered (Fig. 25).

• Turn the air filter knob clockwise to secure the air filter cover.

FUEL TANK CAP, TANK AND LINES

Fuel is EXTREMELY flammable. Be very cautious and use care when mixing storing or handling. Failure to follow this instruction may lead to serious personal injury.

Check for fuel leaks. Do not use the blower in the presence of a leak as it is a fire hazard. Loose or damaged tank caps, or leaking tanks must be replaced immediately. Failure to follow this instruction may lead to serious personal injury.

Use a clean cloth to remove loose dirt from around the fuel tank cap and empty the fuel tank. The fuel tank cap contains a check valve. If the performance improves when the fuel tank cap is loosened, the check valve may be faulty. Replace the fuel tank cap if required. A clogged fuel filter will cause poor engine performance. Replace the fuel filter if required as it is a nonserviceable part. Please contact your nearest service center for replacing this fuel filter.

SPARK PLUG REPLACEMENT

The spark plug for this engine may be replaced using an identical or equivalent spark plug as provided with the tool. The spark plug gap should be set at 0.026 in. (0.65 mm). Replace annually with a recommended or equivalent replacement part.

• Remove the spark plug cap. Fully cover the spark plug using the provided socket wrench. Rotate the wrench counter clockwise to remove the spark plug (Fig. 26 & 27).
• Check the spark plug for fouling, worn and rounded center electrode. Clean the plug or replace with a new one. DO NOT use a blowing tool to clean as the movement of dirt may damage the engine.
• Adjust spark plug gap by bending outer electrode (Fig. 28).

• Reinstall the cleaned or new spark plug by turning it clockwise into place (Fig. 29).


• Reinstall the spark plug cap into place.

NOTICE: Be careful not to cross-thread the spark plug. Cross-threading will seriously damage the product.

STORAGE

Clean the blower of any debris and store indoors in a dry, well-ventilated area that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts. Abide by all ISO and local regulations for the safe storage and handling of gasoline.

Storing for 30 days or longer:
Drain all the fuel from the tank into a container approved for storing gasoline. Press the primer bulb 3 - 4 times to remove the remaining fuel from the carburetor. Run the engine until it stops.

HIGH ALTITUDE ENGINE OPERATION

Initially your engine is configured for operation below 2000 ft. altitude. If the blower is being used above 2000 ft. altitude, the engine must be re-configured accordingly. Operating the engine with the wrong engine configuration at a given altitude may increase its emissions, drop fuel efficiency, reduce performance and cause irreparable damage. Engines configured for high altitude operation will need to be reconfigured for use in standard altitude conditions. Your authorized service center should ensure that your engine is properly configured for your location.

THIS PRODUCT WAS MANUFACTURED WITH A CATALYST MUFFLER
Congratulations! You have made an investment toward protecting the environment. In order to maintain this product's original emission level, please refer to the maintenance section below.

MAINTENANCE SCHEDULE

Maintenance Part		Inspect For Damage Before Each Use	Clean Every 5 Hours	Replace Every 25 Hours or Yearly	Replace Every 50 Hours
* CATALYTIC MUFFLER ASSEMBLY					Y
SPARK SCREEN					Y
* AIR FILTER ASSEMBLY Includes: Air Filter			Y
* CARBURETOR ASSEMBLY Includes: Gaskets		Y
* FUEL TANK ASSEMBLY Includes:	Fuel Lines & Fuel Tank Cap	Y
	Fuel Filter			Y
* IGNITION ASSEMBLY Includes: Spark Plug				Y

* NOTICE: THE USE OF EMISSION CONTROL COMPONENTS OTHER THAN THOSE DESIGNED FOR THIS UNIT IS A VIOLATION OF FEDERAL LAW.

TROUBLESHOOTING

If your blower does not appear to operate properly, follow the instructions below. If this does not solve the problem, please contact your local repair agent.

Before proceeding, shut off the engine, wait for all moving parts to stop, and remove the battery pack. Wait until the surfaces cool down. Failure to follow these instructions can result in serious personal injury or property damage.

EXPLODED VIEW

NPTBL26A EXPLODED VIEW

NPTBL26A MANUAL PARTS LIST

Key Number	Part Number	Description	Quantity
1		Air Inlet Cover	1
2		Engine Housing Assembly	1
3		Washer Assembly	1
4		Impeller	1
5		Bearing Assembly	1
6		Cleva 26cc 2-Cycle Engine	1
7		Handle Assembly	1
7.1		Upper Handle Assembly	1
7.2		Starter Set	1
7.3		Battery Release Button	1
7.4		Cruise Control Lever	1
7.5		Stop Switch	1
7.6		PCB Assembly	1
7.7		Anti-Vibration Pad	1
7.8	301001115	Throttle Lever	1
8	321001114	7.2V Lithium-Ion Battery	1
9	301001116	Rear Blower Tube	1
10	301001117	Front Blower Tube	1
11	301001118	Concentrator Nozzle	1
12	321001127	Charger	1

Replacement parts highlighted in grey are available for after sales purchase. Replacement of repair or internal parts should be done by a qualified service professional. Please contact your authorized service dealer or Customer Service at 866-384-8432.

EXPLODED VIEW 26CC 2-CYCLE ENGINE

26CC 2-CYCLE ENGINE PART LIST

Key Number	Part Number	Description	Quantity
1		Logo	1
2	301001119	Engine Cover	1
3		Crankcase Assembly	1
4		Flywheel	1
5		Fuel Tank Assembly	1
6	301001123	Fuel Cap Assembly	1
7	301001124	Air Filter Base	1
8		Carburetor Assembly	1
9		Carburetor Mount Assembly	1
10		Electric Starter Assembly	1
11		Engine Mount Assembly	1
12		Crankshaft Piston Shank	1
13		Cylinder Assembly	1
14	321001139	Spark Plug	1
15		Positive Stop Switch Cable	1
16	321001138	Muffler Insulation Sheet	1
17	301001132	Muffler	1
18		Ignition Coil Assembly	1
19		Throttle Lever	1
20		Screw	2
21	301001135	Air Filter	1
22	301001136	Air Filter Cover	1
23	321001150	Rotary Knob	1
24		Pawl Assembly	1
25	301001138	Choke lever	1

Replacement parts highlighted in grey are available for after sales purchase. Replacement of repair or internal parts should be done by a qualified service professional. Please contact your authorized service dealer or Customer Service at 866-384-8432.

SPECIFICATIONS

26cc-2 CYCLE LEAF BLOWER
Engine Size	2-Stroke / Full Crank
Engine Displacement	26 cc
Power / Speed	0.65 kW / 7500 RPM
Idle Speed	3000 RPM
Max Torque / Speed	0.9 Nm / 6000 RPM
Fuel Tank Capacity	400 ml
Fuel / Oil Ratio	40: 1
Max Air Speed	200 MPH
Max Air Volume	350 CFM
Net Weight	11.3 lbs (5.1 kg)
Battery Model No.	07LB2001-S
Battery Type	7.2 VDC Lithium-Ion, 2.0 Ah
Charger Model No.	YLS0042-T084045
Charger Input	100-240 V ~ 50/60 Hz 0.3 A Max
Charger Output	8.4 V 450 mA
Charging Period (Battery Fully Discharged)	4-6 Hours

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS AND SAVE THESE INSTRUCTIONS. Read the Operator's Manual and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

• Do not allow children or persons unfamiliar with the product and these instructions to use the blower.
• Use the blower only for clearing or removing leaves, grass, lawn clippings, paper, dust, and other debris off the ground.
• Clear the work area of large and dangerous objects before each use. Remove all objects such as rocks, broken glass, nails, wire, or string, which can be thrown or become entangled in the blower.
• To reduce the risk of hearing loss associated with sound levels, hearing protection is required.
• To reduce the risk of injury associated with thrown objects, always wear eye protection. Eye protection should meet the requirements of ANSI Z87.1.
• To reduce the risk of injury associated with the inhalation of dust, use a face filter mask in dusty conditions.
• Do not operate this blower when you are tired, ill, or under the influence of alcohol, drugs, or medication.
• Always wear heavy, long pants, boots, gloves, and a long-sleeve shirt. To reduce the risk of injury associated with objects being drawn into rotating parts, do not wear loose clothing, scarves, jewelry, etc. Secure hair so it is above shoulder level.
• Inspect the blower before each use. Replace damaged parts. Check for fuel leaks. Make sure all visible fasteners are in place and secure. Make sure attachments are properly installed and securely fastened. Be sure accessories are properly attached and in the position recommended by the manufacturer.
• Maintain a firm grip while using this blower. Hold the handle in one hand with thumb and fingers encircling the handle to prevent the blower from dropping.
• Keep firm footing and balance. Do not overreach. Keep all parts of your body away from hot surfaces.
• Never start or run the blower inside a closed room or building; breathing exhaust fumes can cause serious personal injury or death.
• Mix and pour fuel outdoors where there are no sparks or flames. Slowly remove the fuel cap only after stopping the engine and letting it cool completely. Do not smoke while fueling or mixing fuel. Wipe spilled fuel from the blower. Move at least 10 ft. (3 m) away from the fueling source and site before starting the engine. Always store gasoline in a container approved for flammable liquids.
• Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 50 ft. (15 m) radius; outside the 50 ft. (15 m) zone, there is still a risk of injury from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the engine.
• Maintain stable footing on a solid surface at all times when using the blower in order to have better control of the blower. Do not use the blower whilst on a ladder, roof, tree or other unstable support. Working from ladders or high places could result in severe injury.
• Before transporting the blower in a vehicle, allow the engine to cool completely and empty the fuel tank. Always secure the blower to avoid movement during transportation.

• Empty the fuel tank and clean the blower before long-term storage. Empty the fuel tank following the city or neighborhood regulations on disposal of fuel.
• Store the blower in an area that children and unapproved persons cannot access.
• To reduce the risk of injury associated with contacting rotating parts, stop the engine before installing or removing attachments. Do not operate without tubes in place. Always disconnect the spark plug before performing maintenance or accessing movable parts.
• Operate the blower only at reasonable hours, not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances.
• To reduce sound levels, limit the number of pieces of equipment used at any one time.
• To keep sound levels down, operate blowers at the lowest possible engine speed.
• Use rakes and brooms to loosen debris that may be packed down, before blowing.
• In dusty conditions, slightly dampen surfaces when water is available.
• Conserve water by using blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens.
• Avoid blowing debris towards people, pets, open windows, or cars.
• Use the full blower nozzle extension when blowing.
• Clear and dispose of debris in trash bins or bags after using blowers and other equipment. Do not allow debris to settle on the street where it can wash down a drain.
• Make sure that the blower is in good condition before operation; check the muffler, air intake and air filter in particular.
• Do not touch the engine or the muffler when the engine is on and avoid contact after it has been used; wait until the surfaces cool down. Contact with hot surfaces could result in serious burns.
• Do not operate the blower in poor lighting.
• Do not place any objects inside the blower tubes. Make sure the tubes are clear before using.
• Never use the blower near fires, fireplaces, fire pits, hot ashes, outdoor cooking grills, etc., which may cause the fire to spread.
• Never place the blower on any surface, except a hard, clean surface when the engine is running. Gravel, sand, and other debris can be picked up by the air inlet and thrown at the operator or bystanders, causing possible serious injuries.
• Before fueling or storing the blower, stop the engine and allow it to cool completely.
• Only use replacement parts or accessories provided or listed in this Operator's Manual.
• This blower is not intended for extended use. Extended periods of operation can cause circulatory problems in the user's hands due to the vibration caused by the tool. Take regular breaks from operating the tool.
• Always take your blower to an authorized service center for repair. Service performed by inexperienced or unqualified persons may damage the blower, create unsafe conditions, increase the risk of personal injury, and/or void your warranty.

BATTERY PACK

• The battery pack is only compatible with the YLS0042-T084045 charger.
• Charge the battery only with the charger specified by the manufacturer and listed in this manual. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Do not place battery powered tools or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury.
• Do not open or mutilate the battery pack. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download LawnMaster NPTBL26A - Leaf Blower Manual
