MikroTik PowerBox Pro Manual

PowerBox Pro
PowerBox Pro (RB960PGS-PB)
The PowerBox is an outdoor device with five Gigabit Ethernet ports that supporting PoE power output to ports 2-5 (1 A maximum per port, 2 A total
maximum).

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and damage to the system.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.

First use

Connect your WAN cable to port 1, and the other devices to ports 2-5.
Set client device IP configuration to automatic (DHCP).
The default IP address from ports 2-5 (LAN) is 192.168.88.1.
The username is admin, there is no password
Use the WinBox configuration tool if the IP address is not available and connect through MAC Address.

Powering

The power consumption of this device without attachments is 6 W, Max power consumption is 54 W. The device accepts power from the power jack or
from the first Ethernet port (Passive PoE):
Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 12-57 V DC.
The ether1 port accepts Passive PoE input 12-57 V DC.

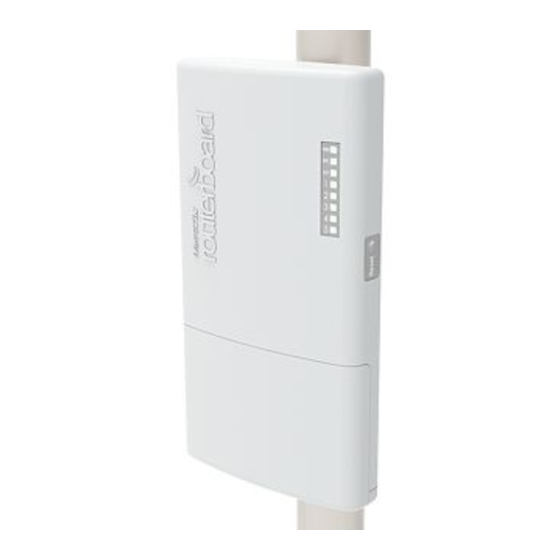

Mounting

It is possible to attach the device to a DIN rail, using provided DIN rail bracket and screws. Since the device has a weatherproof outdoor case, you can
mount it on a pole, with provided two zip ties or a steel clamp. The ground cable needs to be attached to a specially designed screw on the backside of the
unit.
(or, for some models, check user and wireless passwords on the sticker) .
