MikroTik RB4011iGS+5HacQ2HnD-IN Quick Start Manual

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v7.10 or the latest stable version, to ensure compliance with local authority regulations!
It is the end users responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions.

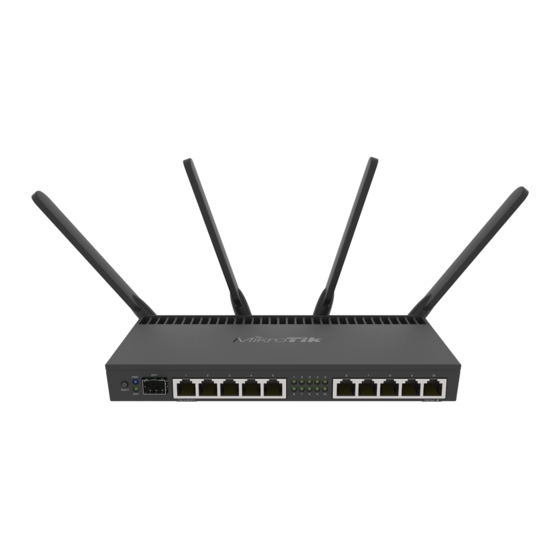

This Quick Guide covers models: RB4011iGS+5HacQ2HnD-IN
This is a wireless network device. You can find the product model name on the case label (ID).
Please visit the user manual page on
The most important technical specifications for this product can be found on the last page of this Quick Guide.
Technical specifications, brochures, and more info about products at
Configuration manual for software in your language with additional information can be found
If you need help with configuration, please seek a
First steps:
Ensure your Internet Service Provider (ISP) allows hardware changes and automatically assigns an IP address
Connect the ISP cable to the Ethernet1
Connect the device to the power source;
Connect to the device through any of the ports, excluding Ethernet1, or the wireless network "MikroTik-..." (ensure to check the wireless passwords on the
sticker);
Establish a connection using a mobile
Start configuration within the chosen tool, using the default IP address 192.168.88.1. If the IP address is unavailable, use Winbox and choose the "Neighbors"
tab to find the device;
Proceed to connect using the MAC address. The username is "admin," and there is no password (or, for some models, check user and wireless passwords on
the sticker);
Click the "Check for updates" button and update RouterOS to the latest
For a manual update of the device, visit the products page
the "Support&Downloads" menu;
Upload downloaded packages to the WebFig or Winbox "Files" menu and reboot the device;
By upgrading your RouterOS software to the latest version, you can ensure optimal performance, stability, and security updates;
In the "QuickSet" menu set up the following: Choose your country, to apply country regulation settings;
Set up your wireless network password in the left field;
Set up your router password in the bottom field.
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
This is a Class A product. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate
measures
Exposure to Radio Frequency Radiation:
environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general public.
Manufacturer: Mikrotikls SIA,Unijas 2,Riga, Latvia, LV1039.
BG - Български. Бързо ръководство
https://mt.lv/um for the full up to date user manual. Or scan the QR code with your mobile phone.
https://mikrotik.com/products
consultant https://mikrotik.com/consultants
port;
application. Alternatively, use Webfig in a web browser or the "WinBox" configuration tool at
at https://mikrotik.com/products
This MikroTik equipment complies with the European Union radiation exposure limits set forth for an uncontrolled
at https://mt.lv/help
version;
to find your product. The required packages are accessible under
;
https://mt.lv/winbox ;
