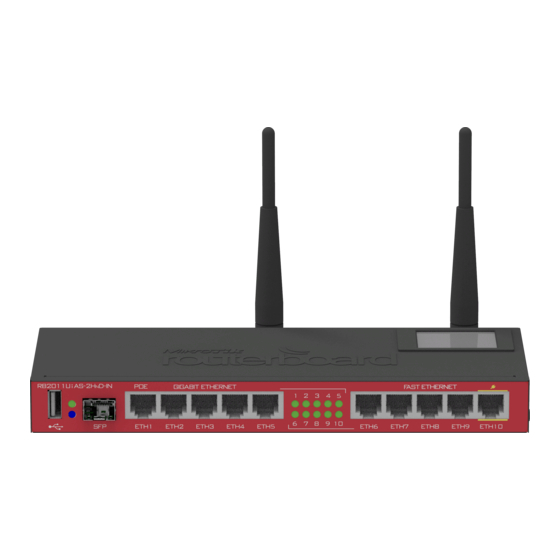

MikroTik RB2011 Series Quick Start Manual

MikroTik RB2011 Series Quick Start Manual

Advertisement

Quick Links

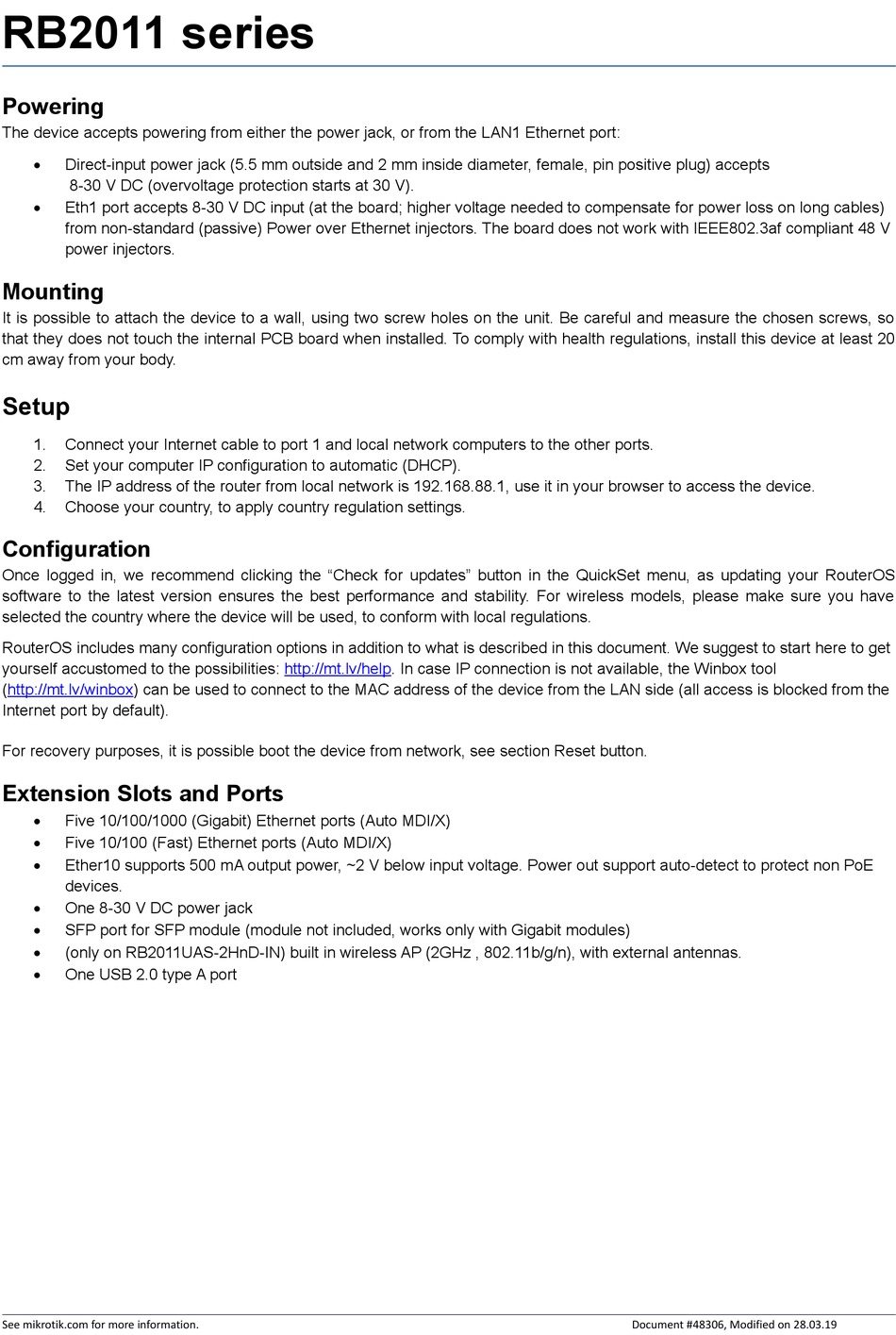

RB2011 series

Powering

The device accepts powering from either the power jack, or from the LAN1 Ethernet port:
Direct-input power jack (5.5 mm outside and 2 mm inside diameter, female, pin positive plug) accepts
8-30 V DC (overvoltage protection starts at 30 V).
Eth1 port accepts 8-30 V DC input (at the board; higher voltage needed to compensate for power loss on long cables)
from non-standard (passive) Power over Ethernet injectors. The board does not work with IEEE802.3af compliant 48 V
power injectors.

Mounting

It is possible to attach the device to a wall, using two screw holes on the unit. Be careful and measure the chosen screws, so
that they does not touch the internal PCB board when installed. To comply with health regulations, install this device at least 20
cm away from your body.

Setup

1.
Connect your Internet cable to port 1 and local network computers to the other ports.
2.
Set your computer IP configuration to automatic (DHCP).
3.
The IP address of the router from local network is 192.168.88.1, use it in your browser to access the device.
4.
Choose your country, to apply country regulation settings.

Configuration

Once logged in, we recommend clicking the "Check for updates" button in the QuickSet menu, as updating your RouterOS
software to the latest version ensures the best performance and stability. For wireless models, please make sure you have
selected the country where the device will be used, to conform with local regulations.
RouterOS includes many configuration options in addition to what is described in this document. We suggest to start here to get
yourself accustomed to the possibilities: http://mt.lv/help. In case IP connection is not available, the Winbox tool
(http://mt.lv/winbox) can be used to connect to the MAC address of the device from the LAN side (all access is blocked from the
Internet port by default).
For recovery purposes, it is possible boot the device from network, see section Reset button.

Extension Slots and Ports

Five 10/100/1000 (Gigabit) Ethernet ports (Auto MDI/X)
Five 10/100 (Fast) Ethernet ports (Auto MDI/X)
Ether10 supports 500 mA output power, ~2 V below input voltage. Power out support auto-detect to protect non PoE
devices.
One 8-30 V DC power jack
SFP port for SFP module (module not included, works only with Gigabit modules)
(only on RB2011UAS-2HnD-IN) built in wireless AP (2GHz , 802.11b/g/n), with external antennas.
One USB 2.0 type A port
See mikrotik.com for more information.
Document #48306, Modified on 28.03.19
