Product Codes
09508 White, 09507 Black
Install Dispenser Bracket
Installation
Enclosed
(x4)
For available spare parts contact your sales representative.
IMPORTANT! For secure mounting, follow these
instructions thoroughly. Ensure that the proper
mounting hardware is used for the appropriate wall
type.
1. Assess wall surface material to determine if
screw anchors are required.
2. Mount the dispenser with the bottom edge
approximately 15-48" from the floor and
7-9" from the front edge of the toilet to the
centerline of the dispenser. In the presence
of a grab bar rail, mount dispenser so that
the outlet is no greater than 12" above the
bar, or so that the top of the dispenser is no
less than 1.5" below the bar.
3. Use 4 mounting screws as a minimum to
attach the dispenser to a wall.

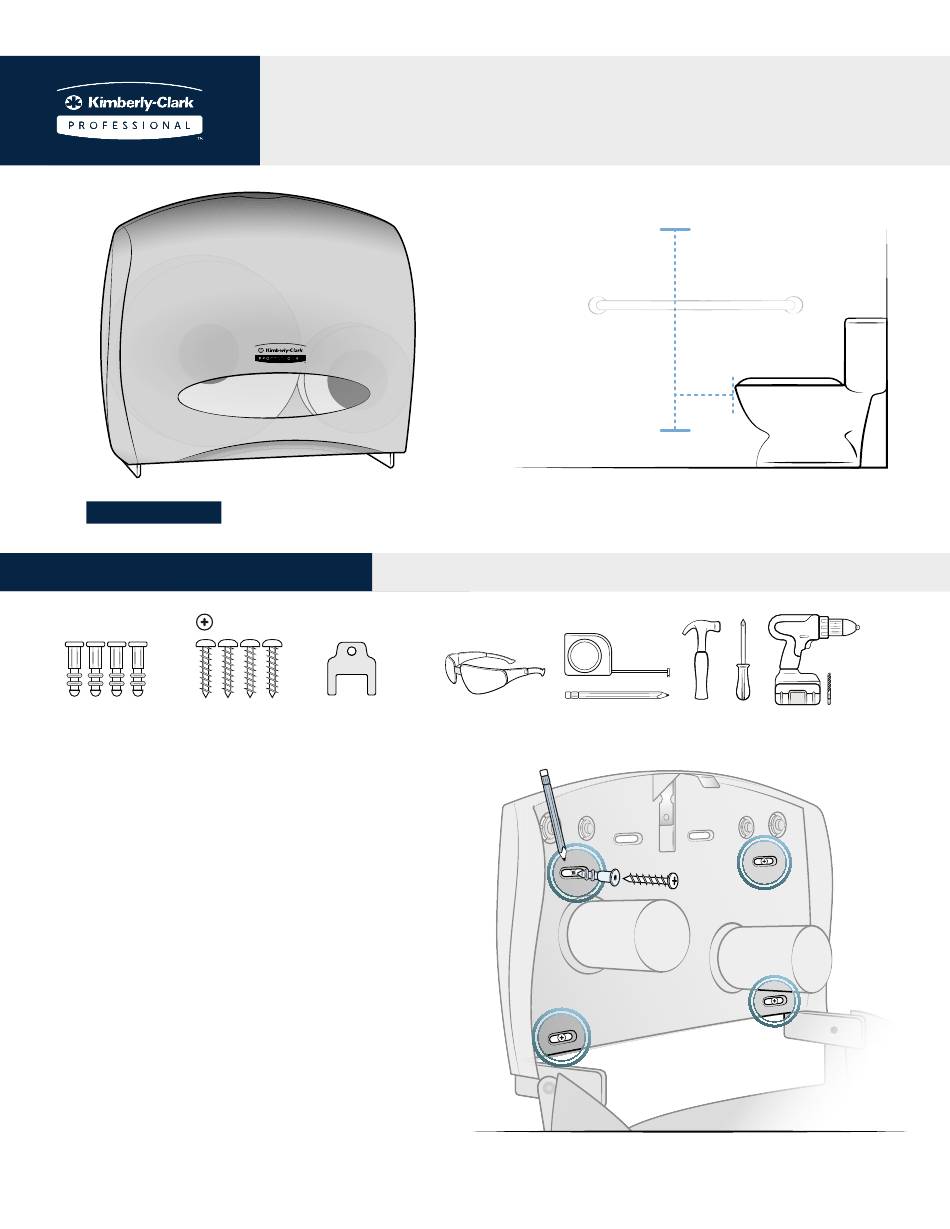

KIMBERLY-CLARK PROFESSIONAL™ JUMBO ROLL TOILET
PAPER DISPENSER
DISTRIBUTRICE DE PAPIER HYGIÉNIQUE EN ROULEAU GÉANT KIMBERLY-CLARK
PROFESSIONAL™
Tools Required:
(x4)
(x1)
*Check for ADA regional
& local installing/
mounting requirements.
7 - 9"
Use correct
drill bit for
anchor size
Form 034162
