Code 4913 Double Jumbo Roll Dispenser

diagram

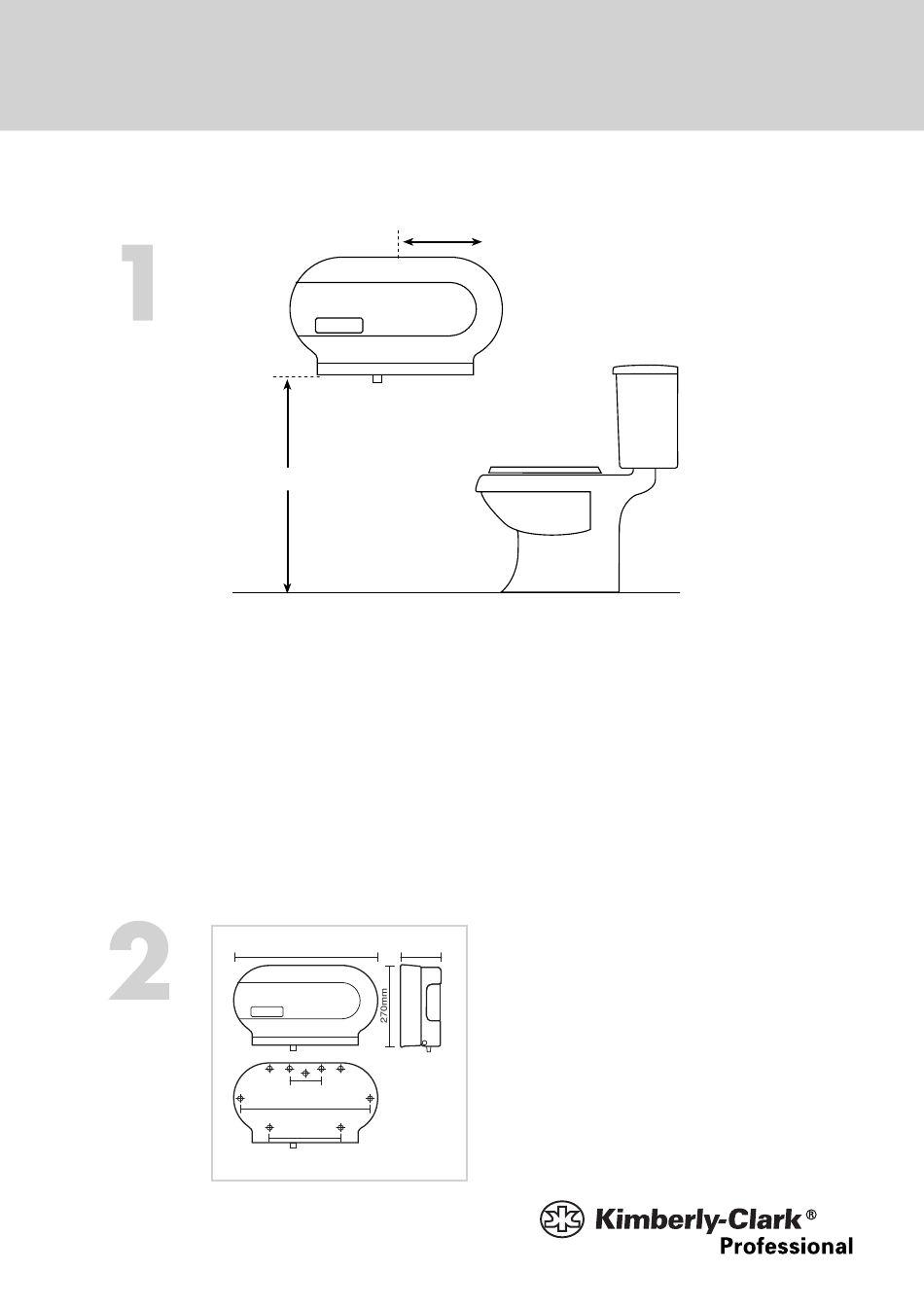

1. 3 screws and 3 plugs are enclosed.

2. Open dispenser using key provided and mark wall with

mounting holes making sure dispenser is square. Mount

dispenser with bottom edge approximately 80cm from

floor, and with centreline of dispenser 45cm from front

edge of toilet (see diagram 1).

3. Use all mounting screws provided with dispenser as a

minimum to attach dispenser to wall.

Code: 4913 Double Jumbo Roll Dispenser

diagram

Suits KLEENEX

Installation Guide -

45cm

80cm

480mm

132mm

95mm

445mm

250mm

code 5749, SCOTT

code 5748.

Need help?

Do you have a question about the 4913 and is the answer not in the manual?

Page 1 Installation Guide - Code 4913 Double Jumbo Roll Dispenser 45cm diagram 80cm 1. 3 screws and 3 plugs are enclosed. 2. Open dispenser using key provided and mark wall with mounting holes making sure dispenser is square. Mount dispenser with bottom edge approximately 80cm from floor, and with centreline of dispenser 45cm from front edge of toilet (see diagram 1).
Page 2 Usage Guide - Jumbo Toilet Roll Double Dispenser to Load TOILET > 1. Use key to unlock dispenser 2. Remove empty core from left and lower front lid. spindle and replace with right hand roll. 3. For best results load dispenser with roll tails closest to the toilet pan.
