Kimberly-Clark 4959 Installation Manual

Code 4959 Optimum Towel Dispenser
diagram
125cm
1. 4 screws and 4 plugs are enclosed.
2. Use an appropriate 6mm drill bit in conjunction with the enclosed
wall plugs for masonry walls.
3. If plugs are not to be used then choose an appropriate size drill bit.

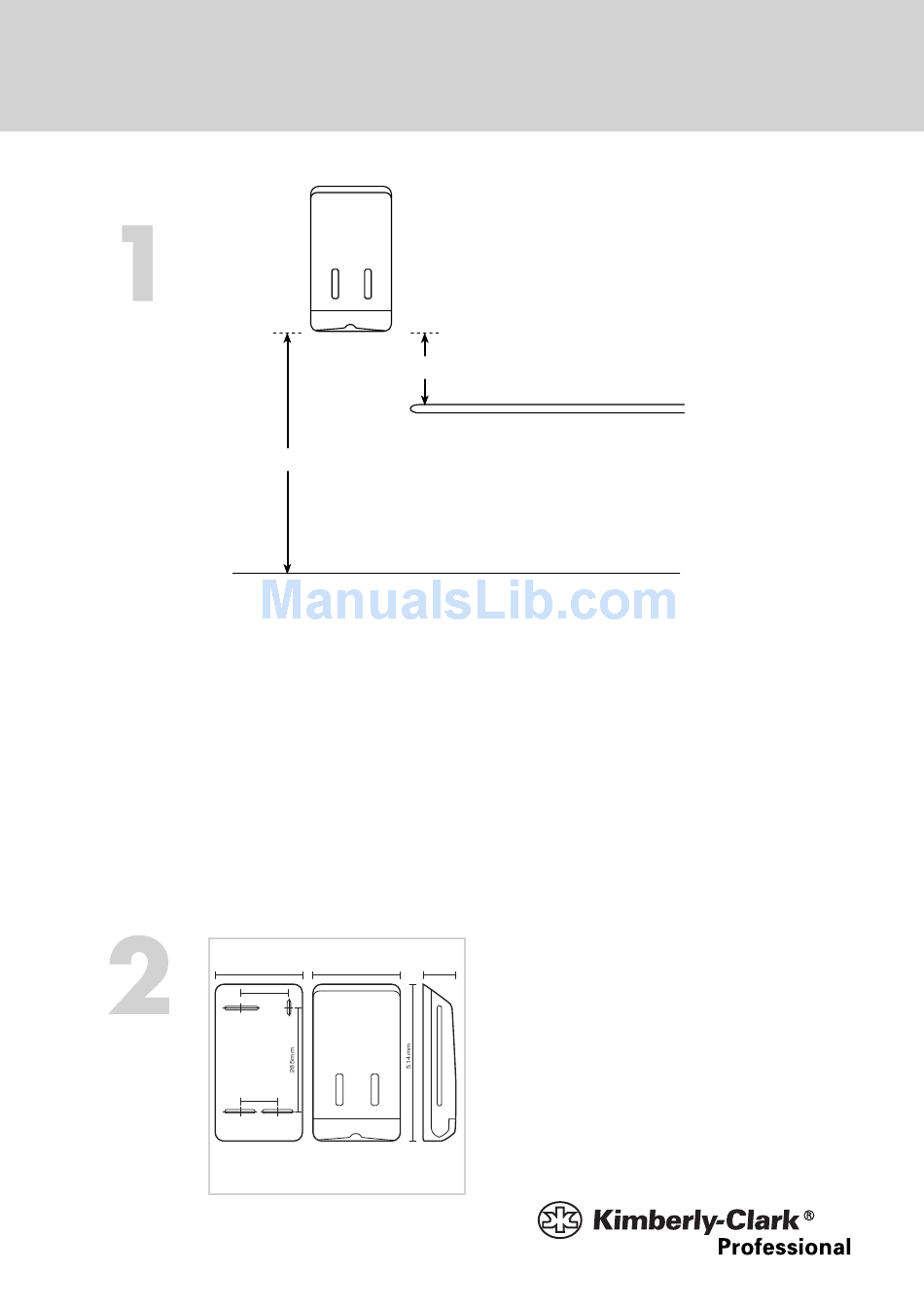

4. Using mounting template on box, mount the dispenser with bottom
edge approximately 125cm from the floor or 50cm above a bench
(see diagram).
Use all mounting screws provided with dispenser as a
5.
minimum to attach dispenser to wall
6. If no mounting template available open dispenser with key and hold
squarely against wall while you mark drilling holes (or see diagram
2 for measurements).
Code: 4959 Optimum Towel Dispenser
282mm
diagram
165mm
120mm
Suits SCOTT
Installation Guide -
50cm
282mm 104mm
codes 4455, 4456, 4457.
®
.
