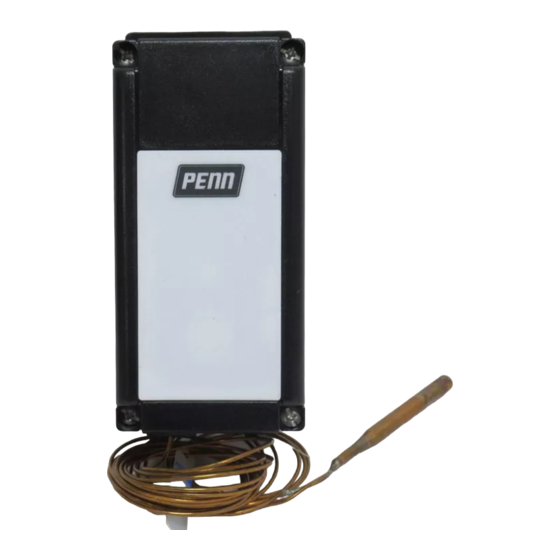

Penn A19QSC Series Installation Manual

Applications
Important: Use this A19QSC Series Temperature
Control only as an operating control. Where failure
or malfunction of the temperature control could
lead to personal injury or property damage to the
controlled equipment or other property, additional
precautions must be designed into the control
system. Incorporate and maintain other devices,
such as supervisory or alarm systems or safety or
limit controls, intended to warn of or protect against
failure or malfunction of the temperature control.
Important: Utiliser ce A19QSC Series Temperature
Control uniquement en tant que dispositif de
contrôle de fonctionnement. Lorsqu'une défaillance
ou un dysfonctionnement du temperature
control risque de provoquer des blessures ou
d'endommager l'équipement contrôlé ou un
autre équipement, la conception du système de
contrôle doit intégrer des dispositifs de protection
supplémentaires. Veiller dans ce cas à intégrer
de façon permanente d'autres dispositifs, tels
que des systèmes de supervision ou d'alarme, ou
des dispositifs de sécurité ou de limitation, ayant
une fonction d'avertissement ou de protection en
cas de défaillance ou de dysfonctionnement du
temperature control.
You can use the A19QSC Series Temperature Controls
for many agricultural applications. For installations
that require compliance with Article 547 of the National
Electrical Code (NEC), use an A19P or T19P series control.
The A19QSC Controls use polycarbonate enclosures
and are UL listed as Type 4X. For more information, see
Dimensions and Technical
The A19QSC Controls include internal setpoint adjustment
dials and range scales.
A19QSC Series Temperature Controls with Type
specifications.
4X Enclosures Installation Guide
Dimensions
See the following figure for the dimensions of the A19QSC
controls:
Figure 1: Dimensions for A19QSC Temperature Controls
with Type 4X Enclosures, in. (mm)
Callout Description
A 3 in. x 1/2 in. conduit knockout
B Four 0.20 in. (5 mm) mounting holes
C 0.06 in. (1.5 mm) OD, length varies by
model
Mounting
Risk of Environmental and Property Damage.
Avoid sharp bends in the capillary tubes. Sharp bends
can weaken or kink capillary tubes, which may result
in refrigerant leaks or restrictions of flow.
24-7664-2667 Rev D
2022-12-01
CAUTION
A19QSC
