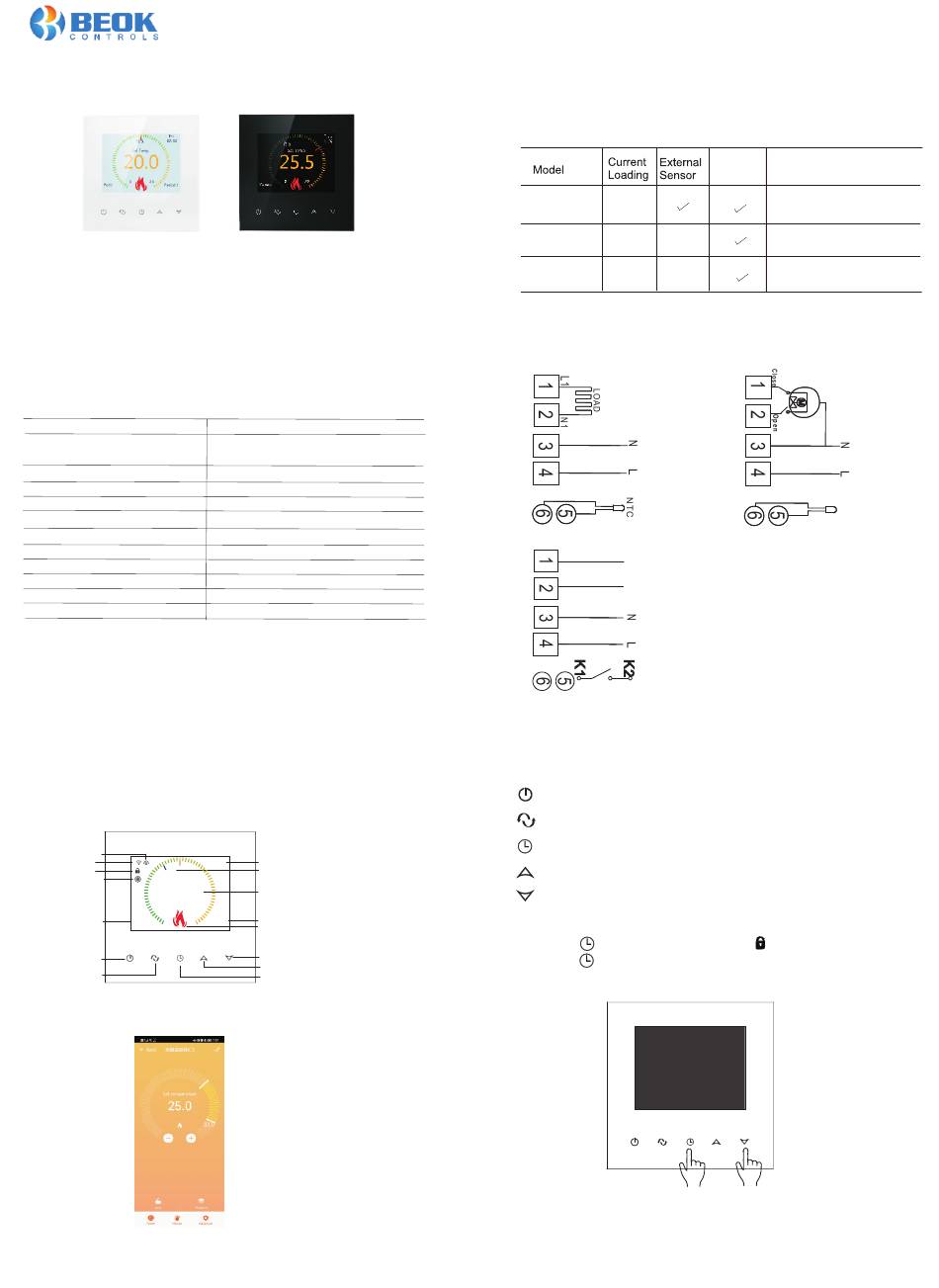

Beok Controls EP Series Manual

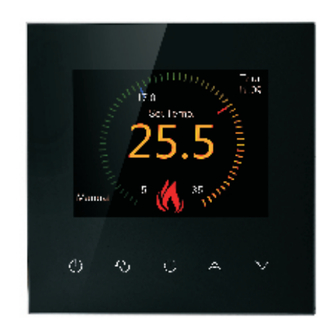

COLOR TFT-LCD HEATING THERMOSTAT
I. Product Summary:
Color TFT-LCD Heating Thermostat is WIFI touch screen thermostat with
phone control. It is applied to temperature control of industrial,
commercial and domestic room, and start of control heating appliances,
especially floor heating systems. It can be controlled by phone. Phone
systems are IOS and Andriod system
II. Technical Parameter:
Power Supply
Current Load
Power Consumption
External Material
Sensing Element
Set Temp. Range
Floor Set Temp. Range
Accuracy
Dimension
Ambient Temp.
Storage Temp.
Timing Error
III.Main Functions and Characteristics
1. WIFI for Andriod & Apple iOS
2. Large screen display and touch button
3. Power-off memory function
4. Real-time data save function
. 5 5+2 or 6+1or 7days six periods program schedule
6. Anti-freezing function
7. 3 sensor modes can be setting
8. Selectable 80mmx80mm European hidden box.
9. With child lock function
IV. User Interface Explanation
Server
WIFI
17 .0
Lock
Set Temp.
Anti-frozen
20 0 .
Manual 5 35
Auto
/Auto
Power
on/off
Menu
V. User Interface Explanation
optional.
200 ~ 240V 50 ~60Hz
≤3A（water heating)
≤16A(electric heating)
<0.3W
PC+ABS (flame retardant）
NTC
5-60℃
5-99℃
±1℃
86x86x13.3mm
0-45℃,5-95％RH(Non-condensing）
℃
-5~55
<1％
(Thermostat Port)
Time
Wed
22:55
Room temp.
Set temp .
Period
Period 6
Heating
Down
Up
Time setting
(Phone Port)
VI. Model Spec
XXX-EP
16A
XXX-WP
3A
XXX-WPB
3A
VII.Wiring Digram
XXX-EP
Close
Open
XXX-WPB
VIII. Thermostat Operation Instruction
1. Main key instruction
ON/OFF key;
Mode Key: Switch between Manual mode, Auto mode, Temporary
manual mode. Long press to enter period setting
Time key: Hour, minute and week setting.
Up key: To increase temperature.
Down key: To reduce temperature.
2. Set up child locks
Long press to enter into child lock mode,
Long press again, the child lock will be disappeared.
3. Turn off the backlight mode by turning off the lights
Set Temp.
20 0 .
When turning on or off, press the time button and down button
simultaneously to enter the green light energy-saving mode. The
thermostat is working normally, but there will be a faint display.
Week
Controlled Objects
Program
For electric heating appliances
For water heating appliances
For gas boiler
XXX-WP
will display.
Wed
22:55
