Beok Controls TGR86WIFI-EP Quick Start Manual

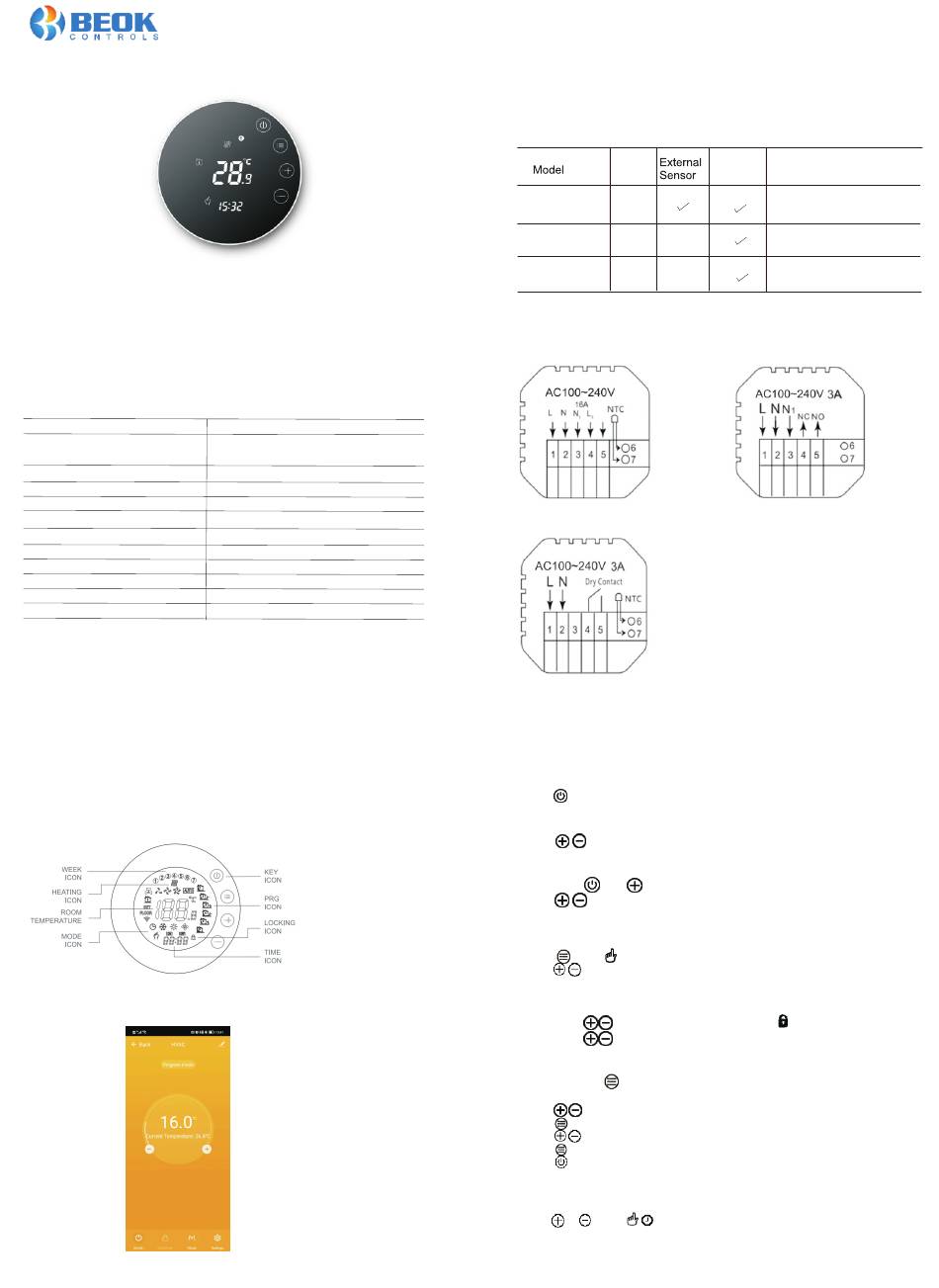

TGR86 WIFI HEATING THERMOSTAT
I. Product Summary:

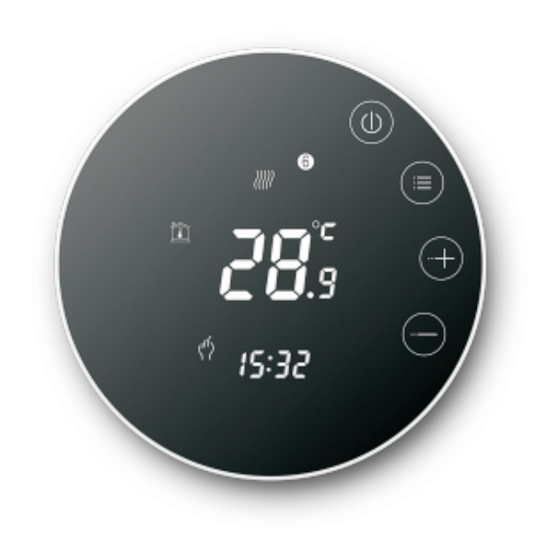

TGR86 WiFi Heating Thermostat is WiFi touch screen thermostat with
phone control. It is applied to temperature control of industrial,
commercial and domestic room, and start of control heating appliances,
especially floor heating systems. It can be controlled by phone. Phone
systems are IOS and Android system
II. Technical Parameter:
Power Supply
Current Load
Power Consumption
External Material
Sensing Element
Set Temp. Range
Floor Set Temp. Range
Accuracy
Dimension
Ambient Temp.
Storage Temp.
Timing Error
III.Main Functions and Characteristics
1. WIFI for Android & Apple iOS
2. Large screen display and touch button
3. Power-off memory function
4. Real-time data save function
. 5 5+2 or 6+1or 7days six periods program schedule
6. Anti-freezing function
7. 3 sensor modes can be setting
8. Selectable 80mmx80mm European hidden box.
9. With child lock function
IV. User Interface Explanation
V. User Interface Explanation
optional.
100 ~ 240V
≤3A（water heating/gas boiler)
≤16A(electric heating)
<1W
PC+ABS (flame retardant）
NTC
5-95℃
5-60℃
±1℃
86x90x14mm
0-45℃,5-95％RH(Non-condensing）
℃
-5~55
<1％
(Phone Port)
VI. Model Spec
Current
Loading
16A
TGR86WIFI-EP
TGR86WIFI-WP 3A
3A
TGR86WIFI-WPB
VII.Wiring Digram
TGR86WIFI-EP
TGR86WIFI-WPB
VIII. Thermostat Operation Instruction
1. Setting Power on/off
Press to turn on/off the power.
2. Setting Temperature
Press to set the temperature.
3. Setting the Clock
Long press and to set minute, hour and week.
Press for adjusting.
4. Setting the Manual Mode.
Manual mode means non-programmable mode.
Press then
will display in the screen, it is in manual mode.
Press to set the temperature.
5. Setting the Child Lock
Long press to enter into child lock mode,
Long press again, the child lock will be disappeared.
6. Setting the Programmable Mode.
Press and hold into programmable mode. 12345 and time will display.
12345 display in the position of week means 5+2;
Press to change the time.
Press to do the temperature adjustment.
Press to change the temperature;
Press to do the next period adjustment.
Press to exit and save.
If you want to make temporary adjustment in any period,
press or , then will display. When finish the setting, all will
confirm automatically.
Week
Controlled Objects
Program
For electric heating appliances
For water heating appliances
For gas boiler
TGR86WIFI-WP
will display.
