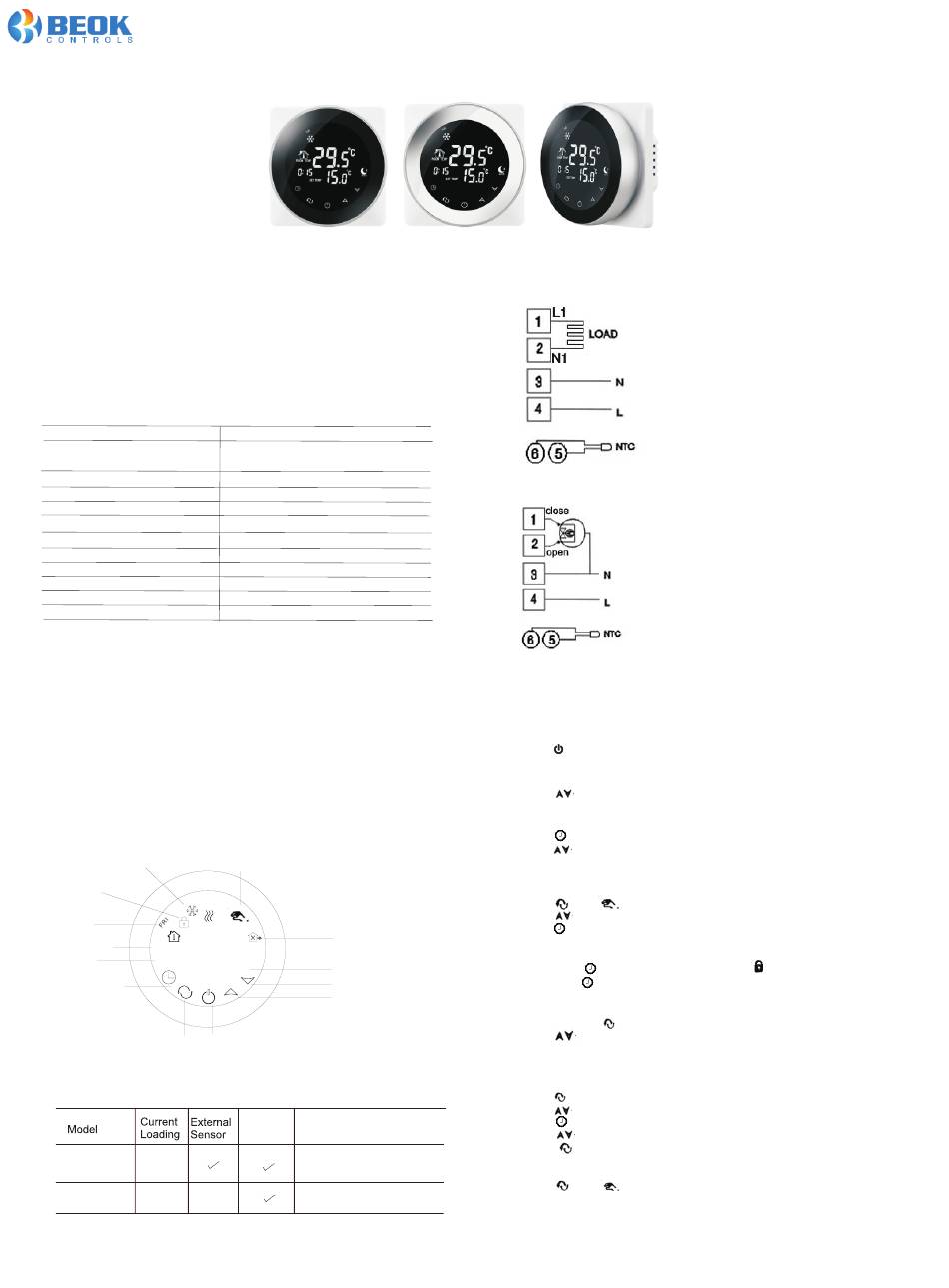

ROUND TOUCH SCREEN THERMOSTAT
I. Product Summary:
TGR87 series Heating Thermostat is touch screen thermostat with
Round shape.
It is applied to temperature control of industrial, commercial and domestic
room, and start of control heating appliances, especially floor heating systems.
It can be controlled by phone.
II. Technical Parameter:
Power Supply
Current Load
Power Consumption
External Material
Sensing Element
Set Temp. Range
Floor Set Temp. Range
Accuracy
Dimension
Ambient Temp.
Storage Temp.
Timing Error
III.Main Functions and Characteristics
1. Round curved screen.
2. WIFI for Andriod & Apple iOS.
3. Large screen display and touch button.
4. Power-off memory function.
5. Real-time data save function.
6. 5+2 or 6+1or 7days six periods program schedule.
7. Anti-freezing function.
8. 3 sensor modes can be setting.
9. With child lock function.
10. Selectable 80mmx80mm European hidden box.
IV. User Interface Explanation
Anti-freeze
Key Lock
Week
20
Room Temp
ROOM TEMP
Clock
12:00
SET TEMP
Time setting
Power on/off
Mode
VI. Model Spec
TGR87-EP
16A
TGR87-WP
3A
200 ~ 240V 50 ~60Hz
≤3A(water heating)
≤16A(electric heating)
<0.3W
PC+ABS (flame retardant)
NTC
5-60℃
5-99℃
±1℃
86x86x13.3mm
0-45℃,5-95%RH(Non-condensing)
℃
-5~55
<1%
(Thermostat Port)
Manual
℃
6 period
℃
26
Set Temp
Down
Up
Week
Controlled Objects
Program
For electric heating appliances
For water heating appliances
VII.Wiring Digram
TGR87-EP
TGR87-WP
VIII. Thermostat Operation Instruction
1. Setting Power on/off
Press
to turn on/off the power.
2. Setting Temperature
Press
to set the temperature.
3. Setting the Clock
Press
to set minute, hour and week.
Press
for adjusting.
4. Setting the Manual Mode.
Manual mode means non-programmable mode.
Press
then
will display in the screen, it is in manual mode.
Press
to set the temperature.
Press
to set minute, hour and week.
5. Setting the Child Lock
Long press
to enter into child lock mode,
Long press
again, the child lock will be disappeared.
6. Setting the Programmable Mode.
Press and hold
into programmable mode. LOOP and 12345 will display.
Press
to select the control way: 5+2 or 6+1 or 7 days programmable.
12345 display in the position of week means 5+2;
123456 display in the position of week means 6+1;
1234567 display in the position of week means 7 days programmable.
Press
to select the periods.
Press
to change the temperature;
Press
to do time adjustment.
Press
to change the time;
Press
again to select the weekend's temp.
If you want to make temporary adjustment in any period,
press
then
will flash. When finish the setting, all will confirm
automatically.
will display.
