User Manual

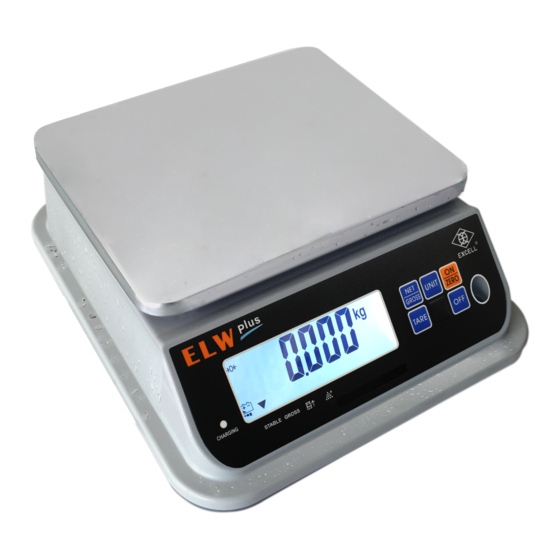

Waterproof Weighing Scale
ELW Plus / ESW Plus
ELW AirCharge /
ESW AirCharge
© Excell Precision Limited. All rights reserved Worldwide.
The information contained herein is the property of Excell Precision Limited and is supplied
without liability for errors or omissions. No part may be reproduced or used except as
authorized by contract or other written permission. The copyright and the foregoing restriction
on reproduction and use extend to all media in which the information may be embodied.
V23.0215
Advertisement
Table of Contents
Related Manuals for Excell ELW Plus
Summary of Contents for Excell ELW Plus
- Page 1 ESW AirCharge © Excell Precision Limited. All rights reserved Worldwide. The information contained herein is the property of Excell Precision Limited and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.
-
Page 2: Table Of Contents
Table of Content INSTRUCTION FOR USE ............................1 PREPARING TO USE THE SCALE ..........................1 CHAPTER 1 INTRODUCTION ............................. 2 1-1 Features and Specifications ........................... 2 1-2 Power Supply ..............................2 1-3 Panel and Keyboard Introduction ........................4 1-4 Self-Test Mode ............................... 6 1-5 Error Messages .............................. -
Page 3: Instruction For Use
EXCELL PRECISION CO., LTD. Thank you for purchasing waterproof weighing scale. In order to use the scale properly, please read this instruction carefully before use. If you have a problem concerning the scale, please contact your supplier. Instruction for Use 1. -
Page 4: Chapter 1 Introduction
Surrounded by waterproof grade sheeting to ensure the water free. 1/3,000~1/6,000 display resolution available. ESW Plus and ESW AirCharge adopt stainless steel housing while ELW Plus and ELW AirCharge adopt plastic ABS housing. High speed of 24bits AD fast reacts and shortens the weighing operation duration. - Page 5 EXCELL PRECISION CO., LTD. a) Anode(+) of battery should be connected with Anode of product battery (usually red cable) b) Cathode(-) of battery should be connected with Cathode of product battery (usually brown cable or black cable) Brown cable(or black cable)
-
Page 6: Panel And Keyboard Introduction
EXCELL PRECISION CO., LTD. Raise the scale and aim the point Position hole is located near the center. Slide the charging Plug in wireless adapter the bottom of the scale plate and attach to the position hole This side up... - Page 7 EXCELL PRECISION CO., LTD. Icon Introduction STABLE : The weight is stable. GROSS : The scale is in the gross mode. The display shows the goods and any container weight. This Gross status indication is on when the TARE function is used.
-
Page 8: Self-Test Mode
EXCELL PRECISION CO., LTD. switch between the “Net value” and the “Gross value”. When the GROSS icon is on, the weight value on the display is the total amount of the tare value and net value. At the Gross status, only OFF and NET/GROSS keys are functional. -
Page 9: Error Messages
EXCELL PRECISION CO., LTD. INTERNAL VALUE MODE (must hook up Load Cell to test) Press to enter, and the display shows internal value TARE Please check whether the internal value has changed obviously with weight changing. Please check the backlight. -
Page 10: Chapter 2 Advanced Functions
EXCELL PRECISION CO., LTD. Chapter 2 Advanced Functions In the weighing mode, press the keys at the same time to NET/GROSS ON/ZERO enter the Advanced Function setting mode. The LCD shows 01 FnC. 01 FnC General Function setting mode 02 EC ... -
Page 11: Fnc 02 Automatic Power-Off Timer Setting
EXCELL PRECISION CO., LTD. 2-1-2 FnC 02 Automatic Power-off Timer Setting Automatic power-off timer setting key to key in parameter ON/ZERO UNITS 0 No auto power-off 1 When the scale is idle for 1 minute, the scale Press... -
Page 12: Fnc 04 Restore To The Default Setting
EXCELL PRECISION CO., LTD. 2-1-4 FnC 04 Restore to the Default Setting Use ON/ZERO or UNITS keys to select “return” or “format” Return (Cancel the restoration) Restore to the default setting Press TARE The default setting includes the following:... -
Page 13: Fnc 07 Auto Unit Weight Averaging Setting
EXCELL PRECISION CO., LTD. hoLd 0 = Hold function disabled hoLd 1 = “Peak hold” mode Keep displaying the maximum weight when the weight is continually changing. To exit this mode, press any key hoLd 2 = “Stable hold 1” mode When the weight is stable, the LCD shows the current weight value. -
Page 14: Ec Weight Calibration
EXCELL PRECISION CO., LTD. 2-2 02 EC Weight Calibration Press TARE The LCD displays the calibration weight value (the maximum capacity of 1 unit) and the unit. The digit on the right side keeps flashing. When the digit on the right flashes, ensure that the weigh pan is empty. -
Page 15: Appendix 1 Command Mode &Output Data Format
EXCELL PRECISION CO., LTD. Appendix 1 Command Mode &Output data format only work with models have WIFI card or BLE card installed inside Command Mode Command Format A Host Command Slave Command Zero Switch to the first weighing unit... - Page 16 EXCELL PRECISION CO., LTD. 00 The first weighing unit WS00HI001000＜CR＞＜LF＞ Write HIGH values WS00HI001000＜CR＞＜LF＞ ANS: Command Format D Host Data Slave Position of decimal Value (e.g. Price) point When the Slave receives this data format, it will transfer the data and display it on its LCD.
-
Page 17: Appendix 2 7-Segment Display Characters
EXCELL PRECISION CO., LTD. Appendix 2 7-Segment Display Characters 020261XX/020264XX/020268XX ZSMT300000351 020311XX/020314XX/020318XX... - Page 18 EXCELL PRECISION CO., LTD. 020261XX/020264XX/020268XX ZSMT300000351 020311XX/020314XX/020318XX...
- Page 19 EXCELL PRECISION CO., LTD. 020261XX/020264XX/020268XX ZSMT300000351 020311XX/020314XX/020318XX...
- Page 20 EXCELL PRECISION CO., LTD. 020261XX/020264XX/020268XX ZSMT300000351 020311XX/020314XX/020318XX...
