INSTALLATION GUIDE
INDUSTRIAL ELECTRIC AXIAL FANS
VKM 100/125/150/200/250/305
VKMS 200/305
VKM AR (Antiradon)100/125/150/200/250/305
Pencil
MOUNTING
The fans are designed for vertical or horizontal mounting.
Air motion in the system must be in compliance with the direction of the arrow on the fan casing.
Install a hood on the intake spigot side in case of the vertical fan installation.
An air duct at least 40 inches (1 meter) long should be connected to an inlet pipe in case of horizontal fan mounting in conditions of maximum permissible humidity level. The.
Vents-US
400 Murray Road, Cincinnati, OH 45217, USA
Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597
E-mail: support@ventsus.com
www.vents-us.com
Drill (Ø 8 mm))
40 inch
40 inch
Tools required
Screwdriver
Dowel NTW 8/45 (4 pcs.)
Screws 5x45 mm (4 pcs.)
MIU_17EN-01
Advertisement
Table of Contents
Related Manuals for Vents-us VKM 100
Summary of Contents for Vents-us VKM 100

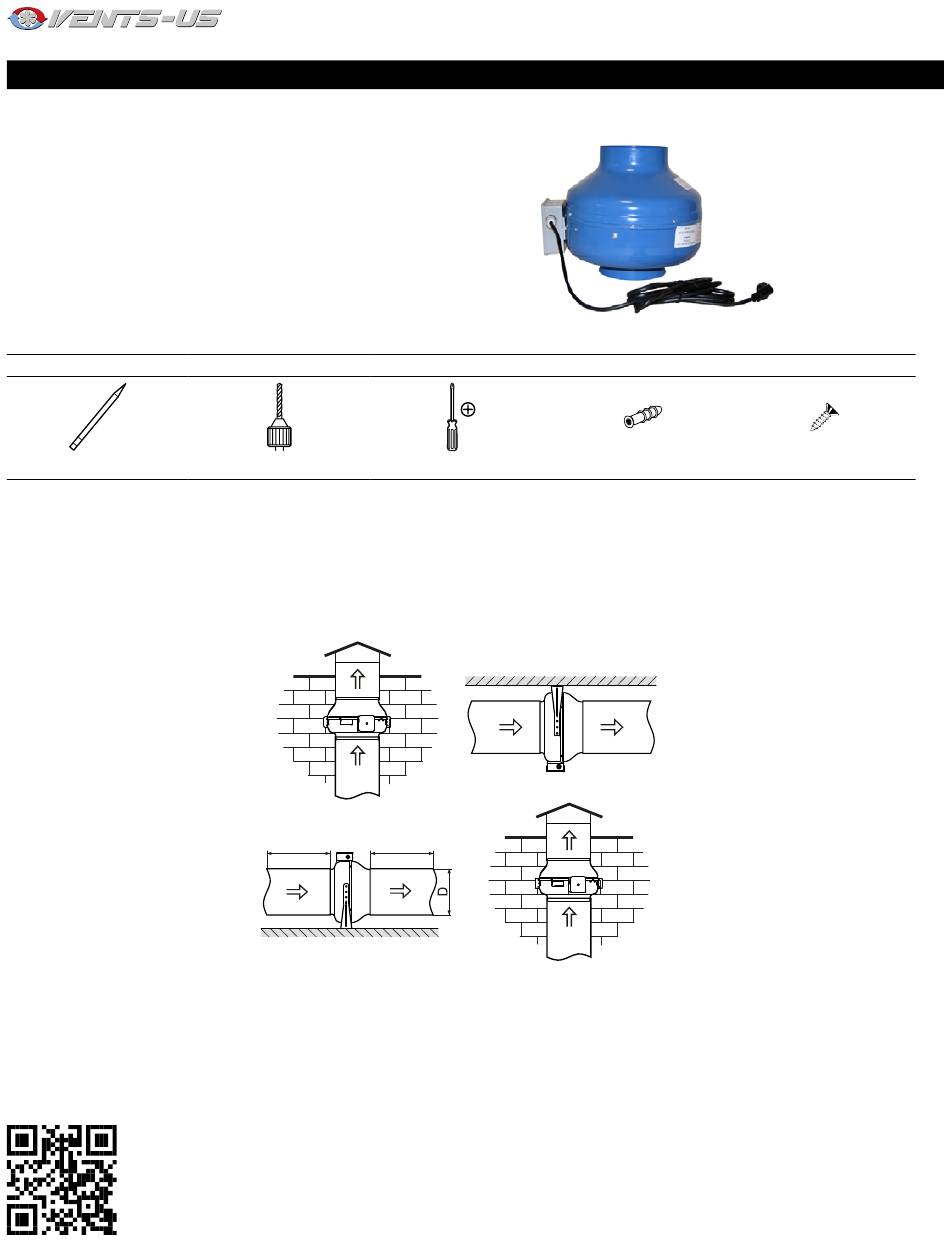

- Page 1 INSTALLATION GUIDE INDUSTRIAL ELECTRIC AXIAL FANS VKM 100/125/150/200/250/305 VKMS 200/305 VKM AR (Antiradon)100/125/150/200/250/305 Tools required Pencil Drill (Ø 8 mm)) Screwdriver Dowel NTW 8/45 (4 pcs.) Screws 5x45 mm (4 pcs.) MOUNTING The fans are designed for vertical or horizontal mounting.
