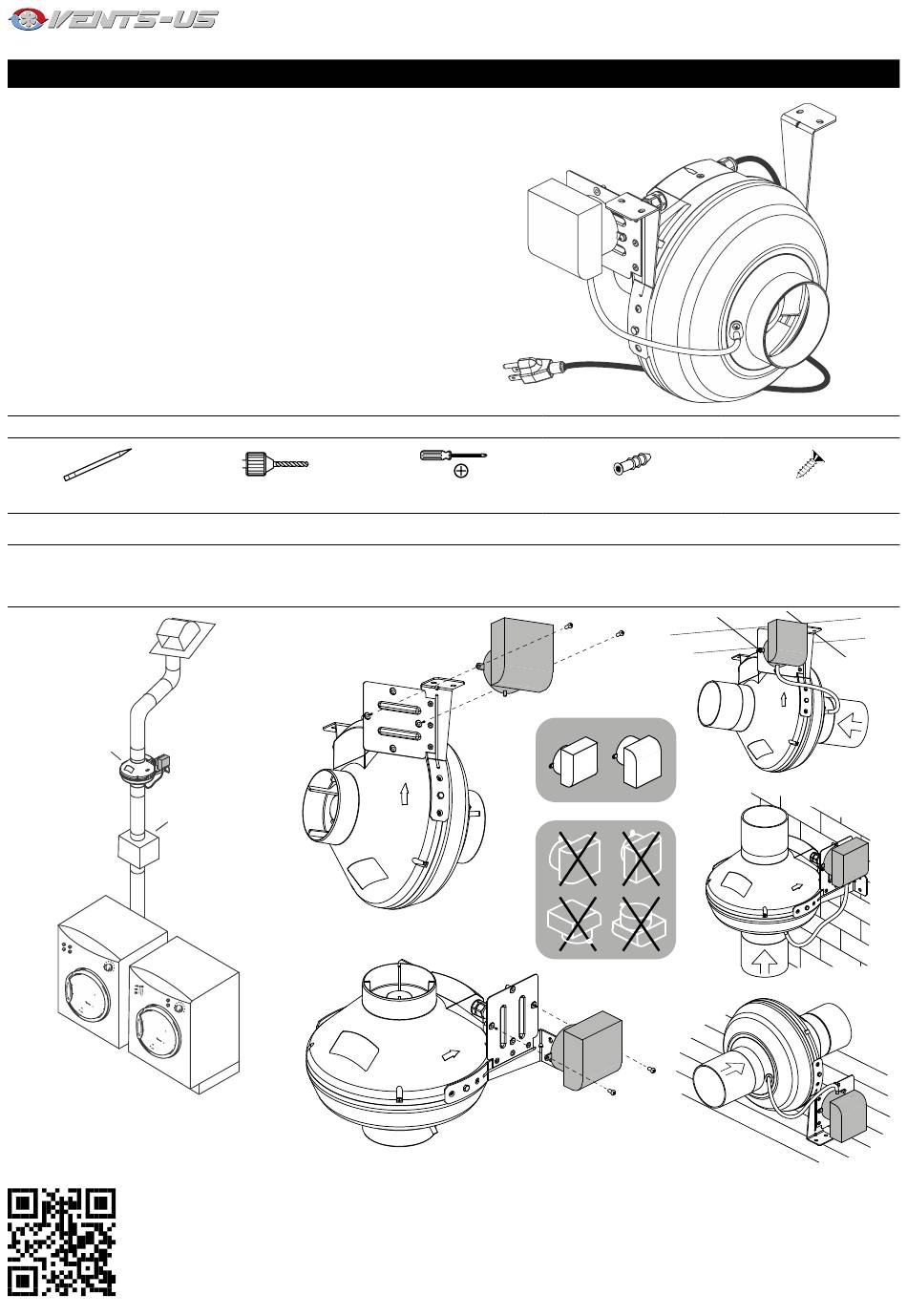

INSTALLATION GUIDE

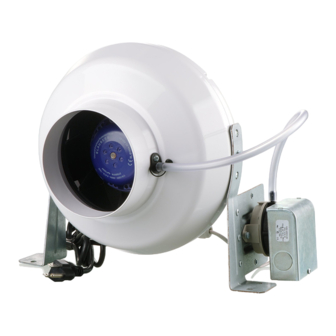

INLINE CENTRIFUGAL FAN
VK PS 100
VK PS 125
VK PS 150
Pencil
MOUNTING
Installation of the fan with direct air discharge to outside requires a device that prevents air backdraft: backdraft damper, a grille with shutters or a ventilation hood.
Otherwise the fan may be spontaneously turned on by the pressure created by blown in wind from outside.
VK PS
Lint Trap
Install a lint trap between the clothes dryer and the
fan to increase the service life and maintenance
periodicity of VK PS. Clean the lint trap as required.
Vents-US
400 Murray Road, Cincinnati, OH 45217, USA
Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597
e-mail: customerservice@vents-us.com
www.vents-us.com
Drill Ø 6 mm
Typical Fan installation
Tools required
Screwdriver
Dowel 4 pcs NTW 6/35
Screws 4 pcs 4/35
MIU_14_(VK_PS)EN-01
Advertisement
Table of Contents
Related Manuals for Vents-us VK PS 100
Summary of Contents for Vents-us VK PS 100
- Page 1 INSTALLATION GUIDE INLINE CENTRIFUGAL FAN VK PS 100 VK PS 125 VK PS 150 Tools required Pencil Drill Ø 6 mm Screwdriver Dowel 4 pcs NTW 6/35 Screws 4 pcs 4/35 MOUNTING Installation of the fan with direct air discharge to outside requires a device that prevents air backdraft: backdraft damper, a grille with shutters or a ventilation hood.
- Page 2 5. Connect air ducts and silicone tube 6. Connection of the fan BREAKER BOX GREEN GROUND BREAKER SCREW 120 VAC, 60 Hz EARTH WALL SOCKET Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 e-mail: customerservice@vents-us.com MIU_14_(VK_PS)EN-01 www.vents-us.com...
