Summary of Contents for Vents-us VKP 100

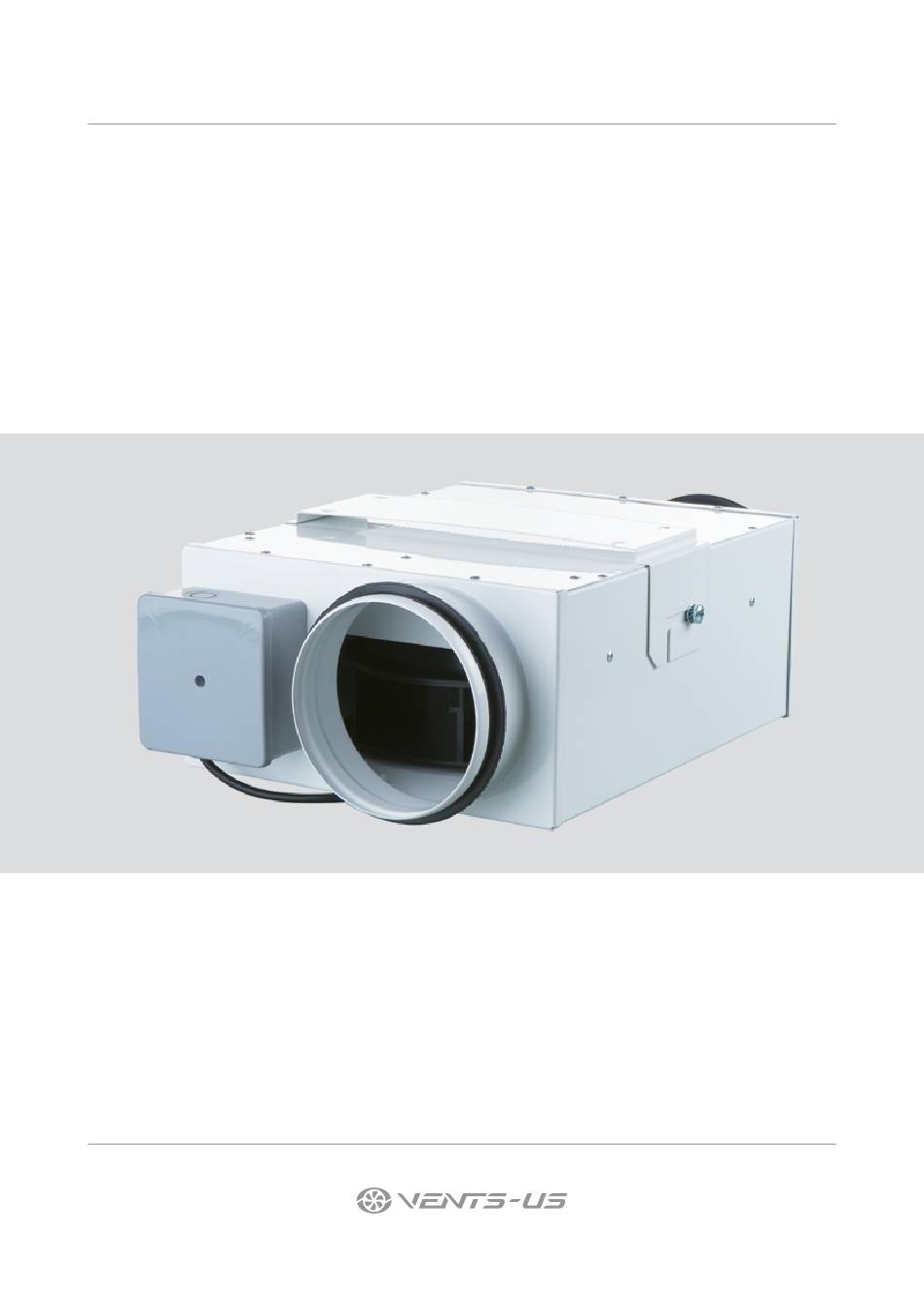

- Page 1 USER’S MANUAL VKP / VKPF Inline centrifugal fan...
-
Page 2: Table Of Contents
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country. vents-us.com... -
Page 3: Safety Requirements
The installation site of the fan must have protective elements that prevent foreign objects from entering the fan. When starting, setting up and operating the fan, the exhaust and supply spigots must be protected to prevent injury from the rotating parts of the fan. vents-us.com... - Page 4 The appliance is to be installed so that the blades are more than 2.3m above the floor. THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE. DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE vents-us.com...
-
Page 5: Purpose
DELIVERY SET NAME NUMBER 1 pc. Mounting bracket 1 pc. User’s manual 1 pc. Packing box 1 pc. DESIGNATION KEY VKP 150 / 150x2 Designation example: Fan type VKPF Outlet/inlet pipe diameter x number of inlet pipes 125/125x2 150/150x2 vents-us.com... -
Page 6: Technical Data
CFM vs. Staic Pressure [Ps] in.W.G. Model 0” 0.1” 0.2” 0.3” 0.4” 0.5” 0.6” 0.7” 0.8” 0.9” 1” VKP 100 4" 0.27 3.7 120/60 VKP 125 5" 0.54 4.2 120/60 VKP 125/125x2 5"/5" 74 0.61 4.2 120/60 VKP 150 6"... -
Page 7: Unit Design And Operating Principle
The terminal box with an operating capacitor and a terminal box inside is attached to the casing end face. The flange with the turbine and the fixing bracket with mounting slots is screwed to the back or front panel of the fan casing depending on its model. vents-us.com... -
Page 8: Installation And Set-Up
1 air duct diameter on intake side and to 3 air duct diameters on outlet side. No filters or any other similar devices are allowed to be installed in these sections. Dimensions, Model VKP 100 VKP 125 7 7/8” VKP 125/125x2 VKP 150 9 13/16”... - Page 9 Remove any insulation from the area where you will be mounting the fan. Insulation should never be installed over any part of an exhaust fan. Keep the insulation at least 3” away from the fan case. vents-us.com...
-
Page 10: Connection To Power Mains
- lay out the cables through the terminal box lug, remove the insulation from the cables ends for ¼ of an inch (6-7mm) length, connect them to proper terminals up to the stop of insulation and fix with screws (Pic.14); - place back the clamping bar, tighten up the lug and install the cover on the terminal box (Pic.15). blue yellow-green black brown vents-us.com... -
Page 11: Technical Maintenance
The fan surfaces need to be cleaned of dirt and dust regularly by using a soft, wet cloth and mild detergent (Pic. 21-24). Do not allow liquids to come in contact with the electric motor. Wipe surfaces dry after cleaning. Perform all the above operations in the reverse order after cleaning. vents-us.com... -
Page 12: Troubleshooting
Turn off the fan. Contact the Seller. the fan start. caused by a short circuit. The fan impeller is soiled. Clean the impellers. Noise, vibration. Check the screw connection and tighten the screws The screw connection is loose. if needed. vents-us.com... -
Page 13: Storage And Transportation Regulations
The unit must be transported only in the working position. • Avoid sharp blows, scratches, or rough handling during loading and unloading. • Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least 3-4 hours. vents-us.com... -
Page 14: Manufacturer's Warranty
If proof of sales date is absent, warranty period is calculated from the production date. The unit can be exchanged at the following address: Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 E-mail: support@ventsus.com... -
Page 15: Certificate Of Acceptance
The unit has been installed in accordance with the provisions of all the applicable local and national construction, electrical and technical codes and standards. The unit operates normally as intended by the manufacturer. Signature: WARRANTY CARD Unit Type Inline centrifugal fan Model Serial Number Manufacture Date Purchase Date Warranty Period Seller Seller’s Stamp vents-us.com... - Page 16 VUSA17EN-06...
