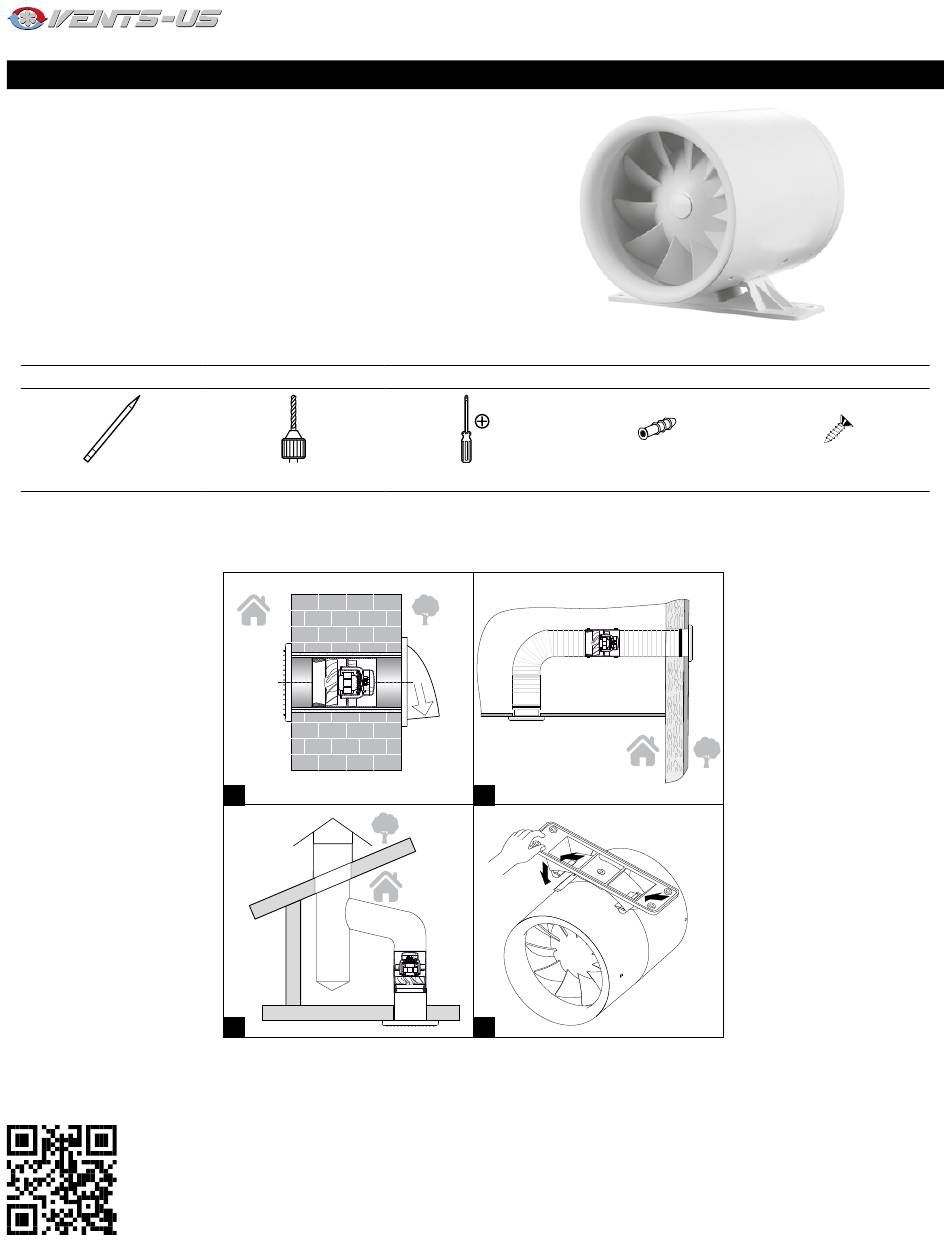

INSTALLATION GUIDE
AXIAL FANS
QUIETLINE 100/125/150
INSTALLATION
Pencil
MOUNTING
The fan is designed for vertical or horizontal installation and connection to a round air duct of a matching diameter, Fig. 1-3.
In case of vertical mounting the fan must be protected against ingress of rainfalls and condensate inside the fan.
Fan installation with direct air discharge upwards is not allowed, Fig. 3.
Use the supplied fixing bracket for mounting.
Attachment of the fixing bracket to the fan is shown in Fig. 4.
Vents-US
400 Murray Road, Cincinnati, OH 45217, USA
Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597
E-mail: support@ventsus.com
www.vents-us.com
Drill
1
3
Tools required
Screwdriver
Dowel (4 pcs.)
2
2
3
4
Screws(4 pcs.)
1
MIU_09EN-01
Advertisement
Table of Contents
Related Manuals for Vents-us QUIETLINE 100
Summary of Contents for Vents-us QUIETLINE 100
- Page 1 INSTALLATION GUIDE AXIAL FANS QUIETLINE 100/125/150 INSTALLATION Tools required Pencil Drill Screwdriver Dowel (4 pcs.) Screws(4 pcs.) MOUNTING The fan is designed for vertical or horizontal installation and connection to a round air duct of a matching diameter, Fig. 1-3.
- Page 2 8) Fix the fan. 9) Remove the cover from the terminal block. 10) Connect the cables according to the wiring diagram (13). Install the cable clamp. Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 MIU_09EN-01 E-mail: support@ventsus.com...
- Page 3 12) Connect air ducts. Wiring diagrams Connection of the fan and standard wall socket BREAKER BOX GREEN GROUND BREAKER SCREW 120VAC, 60Hz WALL SOCKET EARTH Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 MIU_09EN-01 E-mail: support@ventsus.com www.vents-us.com...
- Page 4 Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 MIU_09EN-01 E-mail: support@ventsus.com www.vents-us.com...
