Summary of Contents for Vents-us VK EC

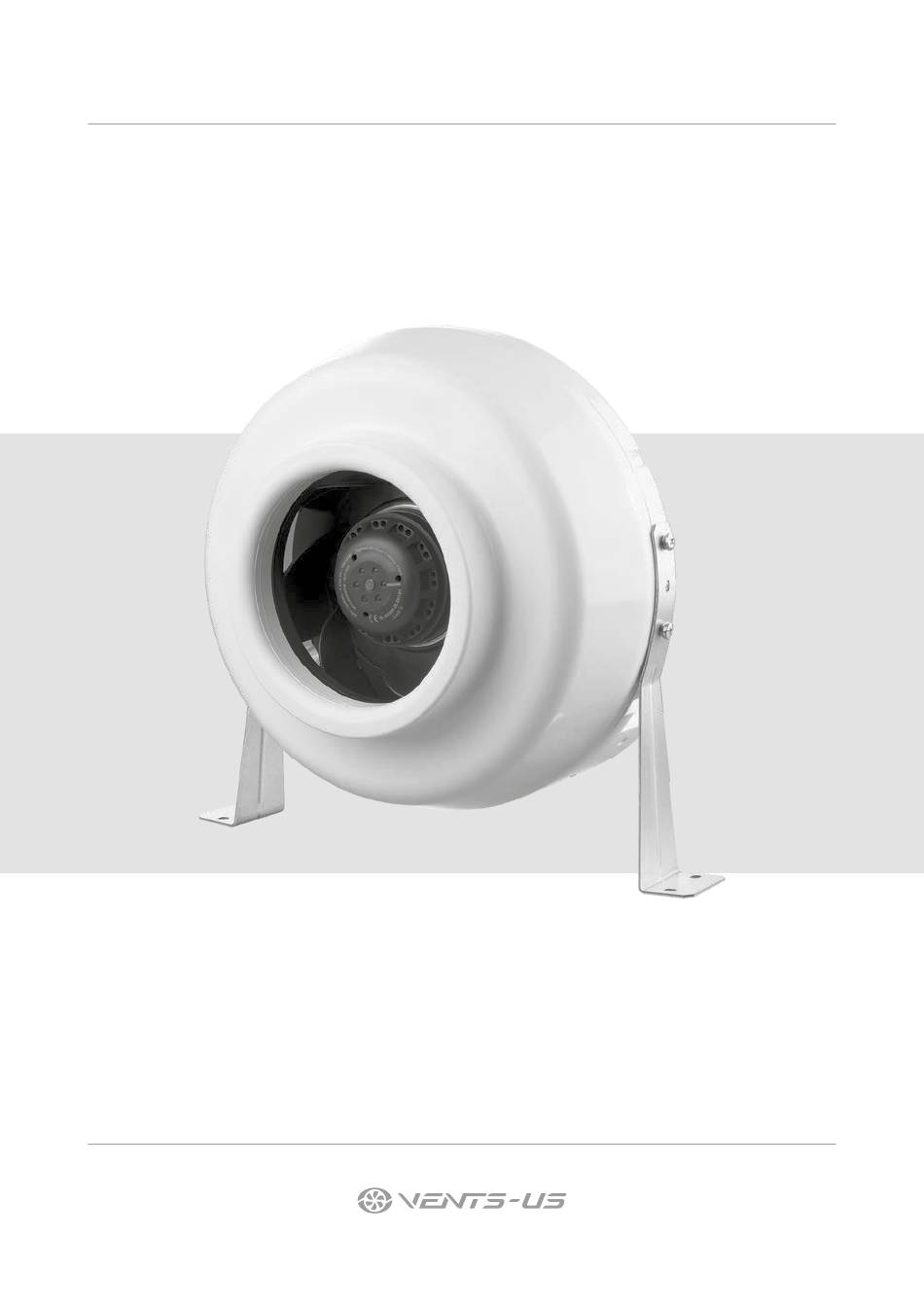

- Page 1 USER'S MANUAL VK EC Centrifugal fan...
-
Page 2: Table Of Contents
Warranty card ....................................15 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the VK EC unit and all its modifications. - Page 3 The casing internals must be free of any foreign objects that can damage the impeller blades. While mounting the unit, avoid compression of the casing! Deformation of the casing may result in motor jam and excessive noise. Misuse of the unit and any unauthorised modifications are not allowed. www.vents-us.com...
- Page 4 VK EC Do not expose the unit to adverse atmospheric agents (rain, sun, etc.). Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous materials. Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc.
-
Page 5: Purpose
4 pcs. Mounting bracket 2 pcs. User’s manual 1 pc. Packing box 1 pc. DESIGNATION KEY 100 EC Motor type EC: synchronous electronically commutated motor Air duct diameter [mm] 100; 125; 150; 200; 250; 315 Unit series Centrifugal fan www.vents-us.com... -
Page 6: Technical Data
VK EC TECHNICAL DATA The fan is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 80 %. Ingress protection rating against access to hazardous parts and water ingress is IPX4. -
Page 7: Design And Operating Principle
The fan is equipped with a single-phase electronically commutated (EC) motor with an external rotor equipped with a centrifugal impeller. The fan is rated for continuous operation. Temperature sensor failure Alarm code Alarm description Two short pulses Short circuit of the temperature sensor One pulse Breakdown of the temperature sensor The motor shuts down www.vents-us.com... -
Page 8: Mounting And Set-Up
VK EC MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. The fan is suitable both for horizontal or vertical mounting on the floor, on the wall or on the ceiling. Air motion in the system must be in compliance with the direction of the arrow on the fan casing. -
Page 9: Connection To Power Mains
The circuit breaker installation place must provide quick access for emergency shutdown of the unit. The trip current of the automatic circuit breaker must exceed the maximum current consumption of the unit (refer to the technical data table). The automatic circuit breaker is not included in the delivery set. www.vents-us.com... -
Page 10: Technical Maintenance
VK EC TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION Clean the product surfaces regularly (once in 6 months) from dust and dirt. To clean the fan, remove the self-tapping screws and remove the fan cover. -
Page 11: Storage And Transportation Regulations
The unit must be transported only in the working position. • Avoid sharp blows, scratches, or rough handling during loading and unloading. • Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least 3-4 hours. www.vents-us.com... -
Page 12: Manufacturer's Warranty
VK EC MANUFACTURER’S WARRANTY Production meets standard operating requirements in the USA and Canada. Vents US warrants to the original purchaser of the unit that it will be free from defects in materials or workmanship for a period of 24 months from the date of original purchase. The Vents US warrants to the original purchaser of the unit that the integrated control unit will be free from defects in materials and workmanship for a period of 24 months from the date of original purchase. - Page 13 www.vents-us.com...
- Page 14 VK EC www.vents-us.com...
-
Page 15: Certificate Of Acceptance
The unit has been installed in accordance with the provisions of all the applicable local and national construction, electrical and technical codes and standards. The unit operates normally as intended by the manufacturer. Signature: WARRANTY CARD Unit Type Centrifugal fan Model Serial Number Manufacture Date Purchase Date Warranty Period Seller Seller’s Stamp www.vents-us.com... - Page 16 VUSA02-1EN-02...
