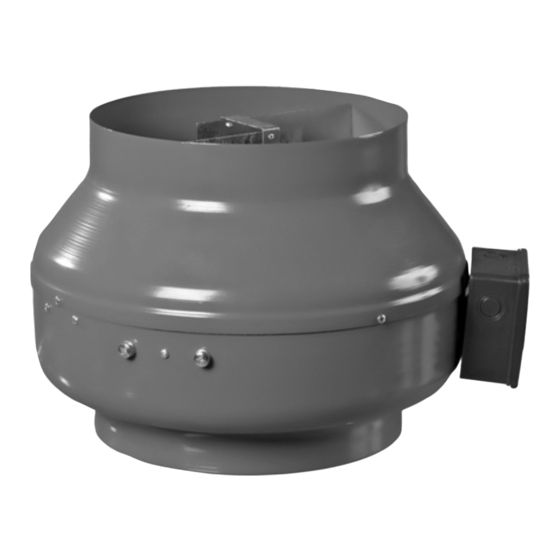

- Page 1 USER’S MANUAL VKM 100 E VKM 200 E VKM 305 VKM 100 VKM 200 VKMS 305 VKM 125 E VKMS 200 VKM 355 Q VKM 125 VKM 250 E VKM 400 VKM 150 E VKM 250 VKM 450 VKM 150...
-
Page 2: Table Of Contents
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances. Caution: mount with the lowest moving parts at least 8 ft (2.5 Meters) above floor or grade level www.vents-us.com... - Page 3 Never touch the unit with wet or damp hands. Never touch the unit when barefoot. THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE. DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE. www.vents-us.com...
-
Page 4: Purpose
(AntiRADON) – for extracting radon-containing air Additional options – equipped with a low-watt motor – equipped with an energy-saving motor Exhaust spigot diameter Fan series VKM – centrifugal inline fan VKMS – centrifugal duct fan with a high-powered motor www.vents-us.com... -
Page 5: Technical Data
To comply with the ErP 2018 regulation, a local demand controller and speed controller must be used. OVERALL AND CONNECTING DIMENSIONS VKM 100 - 315 VKM 355 - 450 Dimensions [mm] Model Duct dia VKM 100 E VKM 100 VKM 125 E VKM 125 VKM 150 E VKM 150 VKM 200 E... -
Page 6: Design And Operating Principle
Drill the holes in the mounting surface to match the fitment holes of the fixing brackets. • Fix the fan with the screws. • Connect the air ducts of the respective size to the fan and fix them with clamps. www.vents-us.com... -
Page 7: Connection To Power Mains
For the other fans The TW1, TW2 terminals are the electrical leads of the normally closed contact of the motor overheating protection. The QF circuit breaker is not included in the delivery and must be installed by the user. www.vents-us.com... -
Page 8: Technical Maintenance
The unit must be transported only in the working position. • Avoid sharp blows, scratches, or rough handling during loading and unloading. • Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least 3-4 hours. www.vents-us.com... -
Page 9: Manufacturer's Warranty
If proof of sales date is absent, warranty period is calculated from the production date. The unit can be exchanged at the following address: Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 E-mail: support@ventsus.com... -
Page 10: Certificate Of Acceptance
The unit has been installed in accordance with the provisions of all the applicable local and national construction, electrical and technical codes and standards. The unit operates normally as intended by the manufacturer. Signature: WARRANTY CARD Unit Type Centrifugal inline fan Model Serial Number Manufacture Date Purchase Date Warranty Period Seller Seller’s Stamp www.vents-us.com... - Page 11 www.vents-us.com...
