StarTech.com RK419WALVS Instruction Manual

Instruction Manual
4U/6U 19in Secure Horizontal Wall-Mountable Server Rack with Fans
RK419WALVS / RK419WALVSGB
RK619WALVS / RK619WALVSGB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Installation
1. To affix the wall-mountable rack to a wall, there are 4 anchor
points on the rear. Open up the enclosed rack by unlocking the
side lock with the provided key, then releasing the side latch.
For the most up-to-date information, please visit: www.startech.com

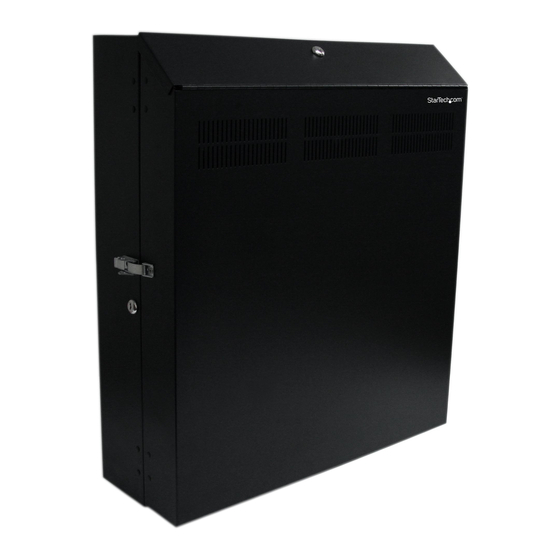

*RK419WALVS shown
Packaging Contents
• 1 x RKx19WALVS wall mount rack
• 16 x #10-32 Cage Nuts and Screws (RK419WALVS)
• 24 x #10-32 Cage Nuts and Screws (RK619WALVS)
• 1 x Set of keys
• 1 x Installation Guide
The two halves of the rack should now swing apart horizontally
via the side hinges. All four anchor points should now be easily
accessible.
2. Use the appropriate screws or bolts for mounting heavy
equipment to the specific type of wall/surface. Please observe
proper safety procedures and use the appropriate tools.
3. Once securely fastened to a wall/surface, equipment can be
mounted into the rack. Some cage nuts and screws are provided
for mounting equipment into the rack. Cables, including the
power cable for the cooling fans, can be routed through the
bottom/rear of the rack.
Additional cage nuts and screws can be purchased from
www.startech.com.
Manual Revision: 08/30/2011
