INSTALLATION GUIDE

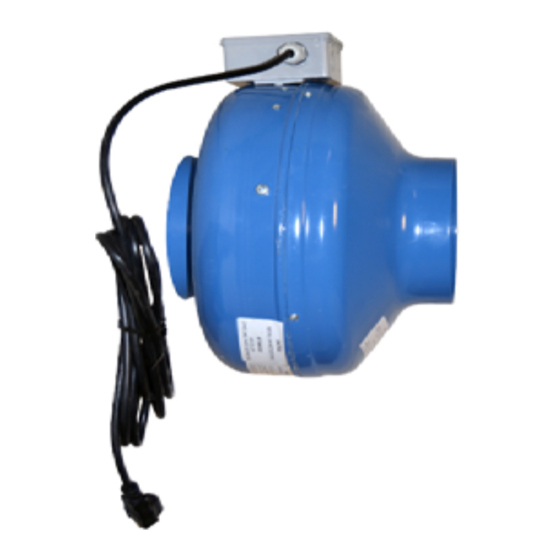

INDUSTRIAL ELECTRIC AXIAL FANS
VKM AR 100
VKM AR 125
VKM AR 150
VKM AR 200
VKM AR 250
VKM AR 305
Pencil
MOUNTING
The fans are designed for vertical or horizontal mounting.
Air motion in the system must be in compliance with the direction of the arrow on the fan casing.
Install a hood on the intake spigot side in case of the vertical fan installation.
Provide a straight air duct section at least 8 inch long on the intake spigot side in case of horizontal fan installation with maximum allowable humidity.
Vents-US
400 Murray Road, Cincinnati, OH 45217, USA
Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597
E-mail: support@ventsus.com
www.vents-us.com
Tools required
Drill
Screwdriver
40 inch
40 inch
Dowel
MIU_18_antiradon_EN-01
Screws
Advertisement
Table of Contents
Related Manuals for Vents-us VKM AR 100
Summary of Contents for Vents-us VKM AR 100
- Page 1 INSTALLATION GUIDE INDUSTRIAL ELECTRIC AXIAL FANS VKM AR 100 VKM AR 125 VKM AR 150 VKM AR 200 VKM AR 250 VKM AR 305 Tools required Pencil Drill Screwdriver Dowel Screws MOUNTING The fans are designed for vertical or horizontal mounting.
- Page 2 Align the holes in the fixing brackets and the holes in the casing. Drill the holes in the wall or in the ceiling for the dowels and fix the fan with the screws. Connect the air ducts of respective diameter to the fan. Vents-US 400 Murray Road, Cincinnati, OH 45217, USA...
