AM...VRF
series
INSTALLATION GUIDE
APPLICATION
•
For supply and exhaust ventilation, air conditioning and air heating.
•
Mounting in drop ceiling, dry walls and more.
DESIGN
•
Made of polymer-coated steel.
•

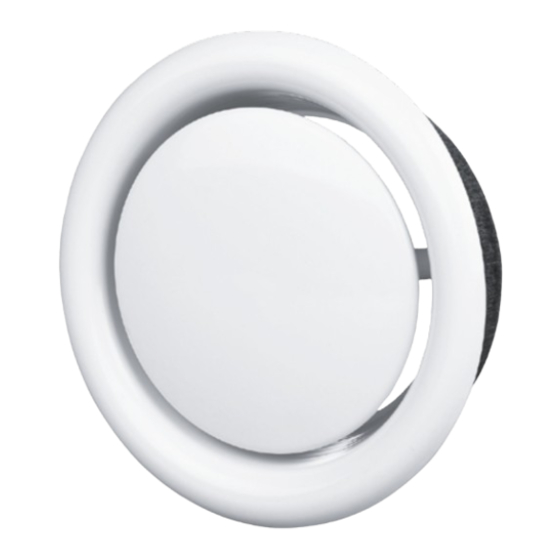

Special aerodynamic disk valve design ensures uniform air distribution.
•
Equipped with a mounting flange for easy connection to round 4-8 inch air ducts.
•
Mounting flange is fixed to false ceiling with screws.
•
The internal part has a sealing ring for more tight fit.
INSTALLATION
TOOLS REQUIRED
Utility Knife
1. TRACE THE HOLE.
www.ventsus.com
Phillips screwdriver
Bodor Vents, LLC DBA: VENTS-US
11013 Kenwood Road Cincinnati, Ohio 45242
Phone: (513)348-3853
e-mail: sales@ventsus.com
Pencil
2. CUT THE HOLE AND INSERT THE COLLAR.
Screws 4 pc for 3/16" openings
AM_VRF
