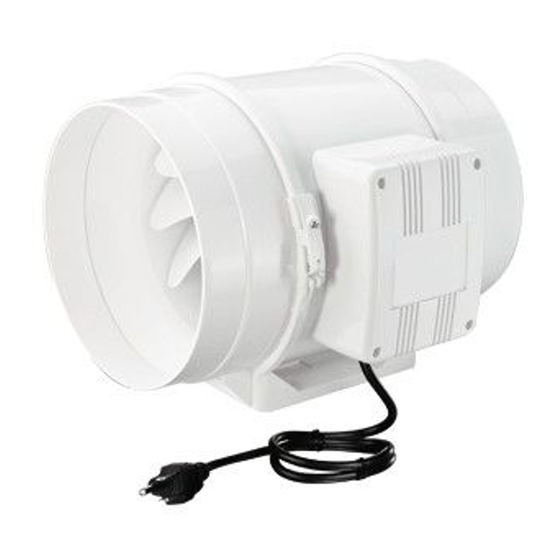

Vents-us TT 100 Installation Manual

Inline mixed-flow fans
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

INSTALLATION GUIDE
INLINE MIXED-FLOW FANS
TT 100/125/150/200/250/315
INSTALLATION
Pencil

MOUNTING

Fans may be mounted either vertically or horizontally. An air duct at least 40 inches long should be connected to an inlet flange in case of horizontal fan mounting; a canopy
should be installed on an inlet flange in case of vertical mounting. Outlet flange should always be connected to an air duct.
Vents-US
400 Murray Road, Cincinnati, OH 45217, USA
Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597
E-mail: support@ventsus.com
www.vents-us.com
Drill
Typical installation of the fan
min 40 inch
min 40 inch

Tools required

Screwdriver
Dowel (4 pcs.)
Screws (4 pcs.)
MIU_05EN-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Vents-us TT 100

Summary of Contents for Vents-us TT 100

  • Page 1 INSTALLATION GUIDE INLINE MIXED-FLOW FANS TT 100/125/150/200/250/315 INSTALLATION Tools required Pencil Drill Screwdriver Dowel (4 pcs.) Screws (4 pcs.) MOUNTING Fans may be mounted either vertically or horizontally. An air duct at least 40 inches long should be connected to an inlet flange in case of horizontal fan mounting; a canopy should be installed on an inlet flange in case of vertical mounting.
  • Page 2 5) Drill the holes and insert the expansion anschors. 6) Fix the fan. 7) Install the fan into the casing 8) Connect air ducts Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 MIU_05EN-01 E-mail: support@ventsus.com...
  • Page 3 HOUSE JUNCTION BOX GREEN GROUND AUT OMATIC SCREW SWITCH 120vAC, 60Hz HOUSE POWER ST ANDARD WALL SOCKET FA N EAR TH GROUND S TOP Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 MIU_05EN-01 E-mail: support@ventsus.com www.vents-us.com...
  • Page 4 3) Remove the cable clamp. 4) Connect the cables according, install the cable clamp. 5) Install the terminal block cover 6) Сonnect the fan from power supply. Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 MIU_05EN-01 E-mail: support@ventsus.com...

This manual is also suitable for:

Tt 125Tt 150Tt 200Tt 250Tt 315
