Vents-us BUCKET FAN Series Installation Manual

INSTALLATION GUIDE INSTALLATION GUIDE
BUCKET FAN SERIES
BUCKET FAN WHISPER SERIES
BUCKET FAN 420
BUCKET FAN 1055
BUCKET FAN 1460
BUCKET FAN WHISPER 420
BUCKET FAN WHISPER 1055
BUCKET FAN WHISPER 1460

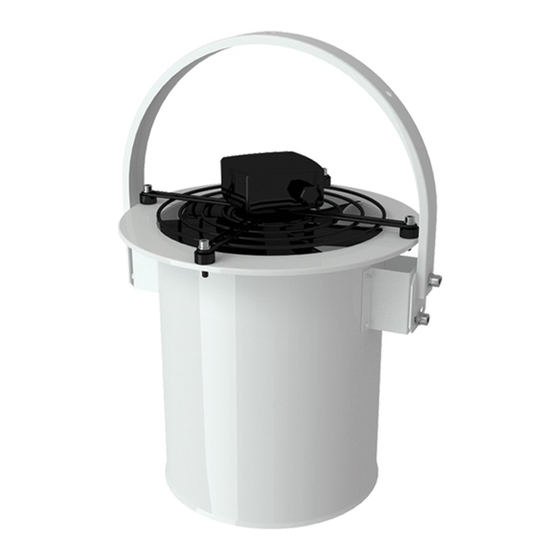

The destratificator consists of an axial fan attached to the casing via the vibration mounts. The destratificator has a polymer coated steel casing.
The destratificator is equipped with a single-phase asynchronous motor with an external rotor and an axial impeller. The motor is equipped with built-in thermal protection
enabling its automatic restarting and utilizes rolling-element bearings. The motor protection class is IP 44.
The Bucket Fan Whisper casing has special perforation and a sound-insulating layer of mineral wool to reduce the noise generated by the axial fan. The Bucket Fan Whisper
destratificator has a flow straightener at the discharge which ensures direct air flow and maximum air throw distance.
The destratificator is mounted by means of the bow bracket (Bucket Fan Whisper can be fixed with 15° steps) as well as the mounting and the safety cables with threaded joints.
1
Bucket Fan
2
3
Prior to Installation:
Read and understand this entire manual. Should you have any questions before, during, or after installation please call your seller or contact VENTS at 888-640-0925 or
service@VentsUS.com.
Check the product for any damage that may have occurred during shipping.
Rotate the impeller by hand to ensure it turns smoothly.
MOUNTING
The Bucket Fan comes with a set of Hanging/Safety Cables with Gripples. The set consists of two Gripples and two cables with a toggle on one end.
NOTE: The Hanging and Safety Cables are the exact same, so there is no need to worry about which one is which.
NOTE: The toggle ends are the ones that are inserted into the handle.
WARNING: Both the Hanging and Safety cables MUST be installed as directed.
Bodor Vents, LLC DBA: VENTS-US
11013 Kenwood Road Cincinnati, Ohio 45242
Phone: (513)348-3853
e-mail: sales@ventsus.com
www.ventsus.com
4
5
6
Bucket Fan Whisper
7
9
8

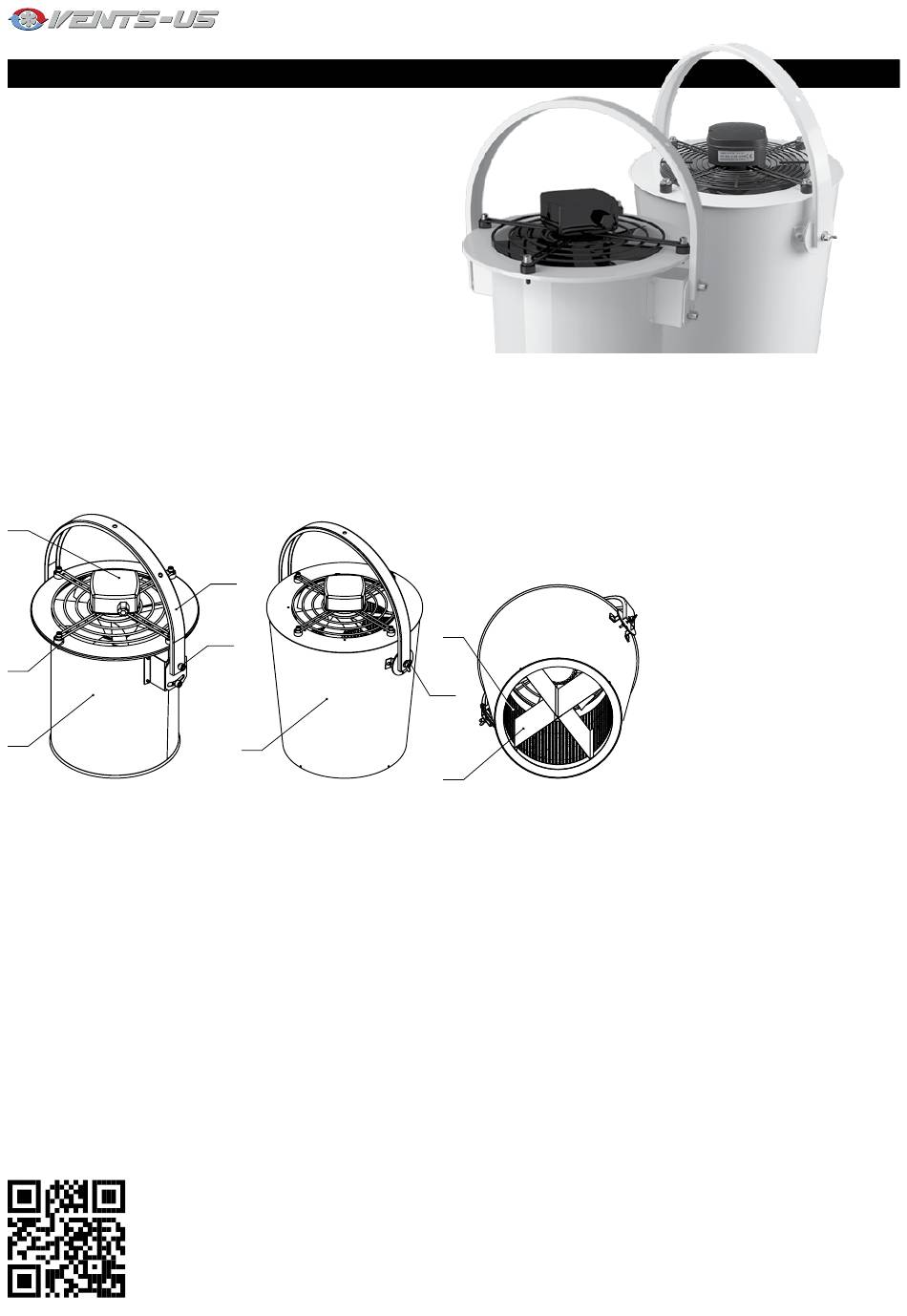

Bucket Fan Parts
1 Electrical junction box on protective grille
2 Vibration absorbing mount
3 Metal case
4 Handle
5 Handle bolts
6 Casing
7 Sound-Insulation Layer
8 Airflow Straightener
9 Wing Head bolt
