Skymsen PS-10 Instruction Manual

Stainless steel meat grinder mounth # 10
Hide thumbs Also See for PS-10:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual

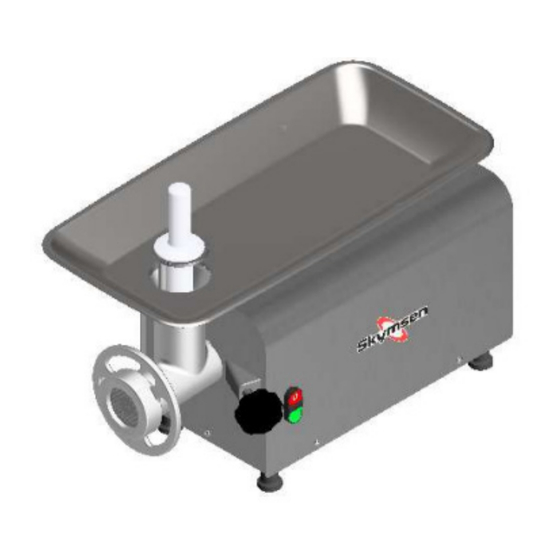

STAINLESS STEEL MEAT GRINDER MOUNTH # 10
MOLINO DE CARNE 10, INOXIDABLE
MODEL/MODELO
PS-10
695340 - ENGLISH / ESPAÑOL
Data de Revisão: 06/09/2023
Metalúrgica Skymsen Ltda
Rodovia Ivo Silveira 9525
Volta Grande
88355-202 Brusque/SC/Brasil
CNPJ: 82.983.032/0001-19
www.skymsen.com – Fone: +55 47 3211 6000
DEVIDO À CONSTANTE EVOLUÇÃO DOS NOSSOS PRODUTOS, AS INFORMAÇÕES AQUI CONTIDAS PODEM SER MODIFICADAS SEM AVISO PRÉVIO.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skymsen PS-10

Summary of Contents for Skymsen PS-10

  • Page 1 Data de Revisão: 06/09/2023 Metalúrgica Skymsen Ltda Rodovia Ivo Silveira 9525 Volta Grande 88355-202 Brusque/SC/Brasil CNPJ: 82.983.032/0001-19 www.skymsen.com – Fone: +55 47 3211 6000 DEVIDO À CONSTANTE EVOLUÇÃO DOS NOSSOS PRODUTOS, AS INFORMAÇÕES AQUI CONTIDAS PODEM SER MODIFICADAS SEM AVISO PRÉVIO.

  • Page 2: Installation And Pre-Operation

    SUMARY on the edge of the table/counter or touch hot surfaces. 1. INTRODUCTION ......2 1.1.6 When the equipment suffer a fall, is damaged in any way or does not work it is necessary to take it to 1.1 Safety ......... 2 an authorized service center for examination, repair, 2.
  • Page 3 Your equipment must be placed and leveled on a dry surface constructed with materials carefully selected for each role, and firm with preferably 850 mm high. within the standards of testing and experience Skymsen. The mouth Nº 02 (fig. 01) and the worm Screw N° 03 (fig. PICTURE 02 03), receive cursory treatment to isolate and make cleaning easier.

  • Page 4: Operation

    When mounting the full mouth, do not over tighten the PICTURE 03 wheel no. 03 (fig. 01), thus avoiding locking or breaking of the internal components. 4. OPERATION 4.1 Functioning Turn off the equipment at any time to remove the mouth.

  • Page 5: Problem Solving

    * Installation – check the installation of your equipment lifespan of your components. To do this, browse to the according to item 2.1, Installation of this manual. SKYMSEN authorized technical assistance (ATA), to make the correct sharpening. * Product life-2 years, to a nomal working turrno.
  • Page 6 TABLE 02 PROBLEMS CAUSES SOLUTIONS -Lack of electrical energy; -Check if there is Power; -Worn or broken Gears; Call authorized technical -The unit will not turn on. assistance (ATA); -Problem in the internal or external electrical circuit of the equipment. Call authorized technical assistance (ATA);...

  • Page 7: Electric Diagram

    8. ELECTRIC DIAGRAM...
  • Page 10 INDICE tipo de servicio. 1.1.5 No utilice el equipo si son con cable o enchufe. Asegúrese que el cable de alimentación no permanecen en el borde del mesa/contador o toque superficies calientes. 1. INTRODUCCIÓN......10 1.1.6 Cuando el equipo sufre una caída, está dañado 1.1 Seguridad ..........10 de alguna manera o no funciona es necesario llevarlo a un centro de servicio autorizado para la examinacióm,...

  • Page 11: Instalación Y Pre-Operación

    TABLA 01 El cable de alimentación tiene 3 (tres) pines, donde el pasador central es la tierra pin-la conexión a tierra (tierra). CARACTERÍSITCAS UNIDAD PS-10 PS-10 PS-10 Es obligatorio que los tres puntos están conectados Prod.Promedio kg/h correctamente antes de hacer el equipo.

  • Page 12: Operación

    2.2 Pre-Operación 3.3 Montaje de los componentes internos de la boca Antes de usar su equipo, debe lavar todas las piezas que Observar la posición de los componentes internos entran en contacto con el producto para ser procesado, con de la boca para no inversiones del mismo, porque si esto agua y jabón neutro (véase el artículo 3.4 Limpieza) sucede, se producirá...

  • Page 13: Mantenimiento

    No almacene la boca con el producto en su interior, donde puede congelar No utilice chorro de agua directamente en el equipo. Pase el lector de QR Code para obtener informaciones sobre cuidados con los aceros inoxidables. 6. MANTENIMIENTO El mantenimiento debe ser considerado un conjunto de procedimientos que tiene como objetivo mantener el equipo en óptimas condiciones de funcionamiento, dando como resultado mayor duración y seguridad.

  • Page 14: Resolución De Problemas

    7. RESOLUCIÓN DE PROBLEMAS TABLA 02 PROBLEMAS CAUSAS SOLUCIONES - Comprobar si hay alimentación; - Falta de energía eléctrica; - Llame a asistencia técnica - Engrenajes gastados o rotos; - La unidad no se enciende; autorizada; -Problema en el circuito eléctrico - Llame a asistencia técnica interno o externo del equipo;...

  • Page 15: Diagrama Electrico

    8. DIAGRAMA ELECTRICO...
