Skymsen RQ-150 Instruction Manual

Coconut and cheese grater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
COCONUT AND CHEESE GRATER
MODEL
RQ-150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RQ-150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skymsen RQ-150

Summary of Contents for Skymsen RQ-150

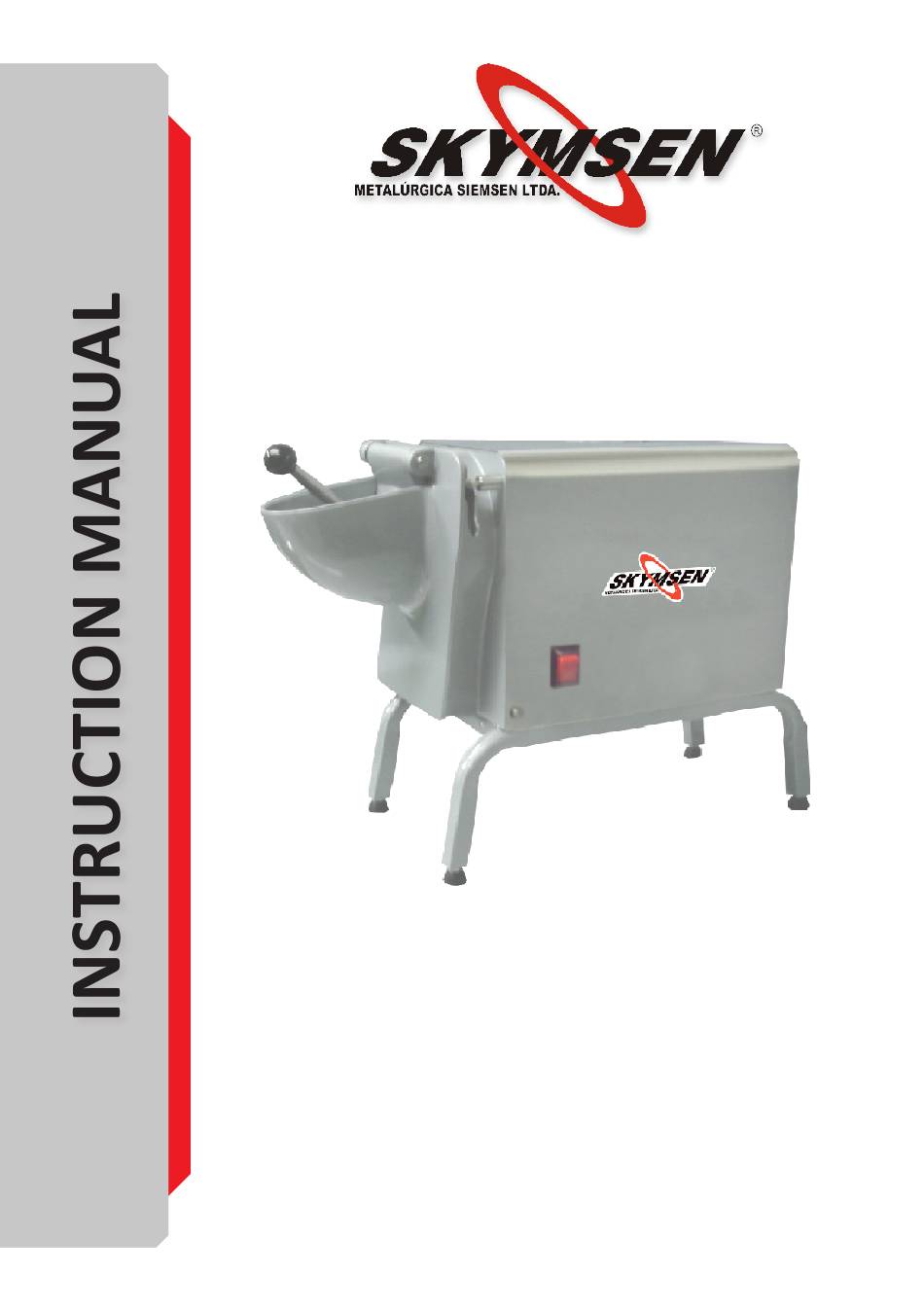

  • Page 1 COCONUT AND CHEESE GRATER MODEL RQ-150...

  • Page 2: Table Of Contents

    SUMMARY 1. Introduction ..................4 1.1 Safety ........................4 1. 2 Main Components ....................5 1.3 Technical Characteristics ..................6 1.4 - Available Blates ....................6 2. Installation and Pre Operation ............7 2.1 Installation ......................7 2.2 Pre Operation ......................7 3 .

  • Page 3: Introduction

    1. Introduction 1.1 Safety When not properly used the Cheese and Coconut Grater RQ-150 is a potentially dangerous machine. Servicing, cleaning or any other operation shall be made by trained people. Plug has to be off outlet during any of these operations.

  • Page 4: Main Components

    1. 2 Main Components All components of this machine were designed and made to its proper function according to pattern tests and experience of Siemsen. PICTURE 01 01-PUSHER 05-FOOT 02- COMPLETE HEAD 06- HOUSING 03-LEGS 07- VOLTAGE SELECTOR SWITCH 04-ON/OFF SWITCH PICTURE 02 01-DISC...

  • Page 5: Technical Characteristics

    1.3 Technical Characteristics TABLE 01 CHARACTERISTICS UNIT RQ-150 Average Production kg/h 25-30 Voltage 110/220 Frequency 50/60 Power Rating 0,25 Consumption kW/h 0,20 Height 15 3/4” Width 8 1/2” Depth 22 11/16” Net Weight Gross Weight Disc Speed Disc Diameter 6”...

  • Page 6: Installation And Pre Operation

    2. Installation and Pre Operation 2.1 Installation In order to have a good performance, the Cheese and Coconut Graver is to be installed onto a leveled surface approximately 850mm high. Check if the voltage to which it will be connected is 110V or 220V. In order to adjust the voltage, there is a voltage selector switch placed in the machine base rear side.

  • Page 7: Blades Placement

    Make sure the Plate is properly locked. The starting of the machine is made through the ON/OFF switch placed at the right side of the machine, as Nº 04 (Pic-01). 3.2 Blades Placement 3.2.1 - First off all choose the ideal Plate for your job as per Table Nº 2. 3.2.2 - Fit the Plate in the disc base according to Pic-03.

  • Page 8: Feeding Procedure

    3.3 Feeding Procedure IMPORTANT Under no circumstance use any kind of tools to push products to be processed inside the Head, especially do not your hands. Make sure to use the pusher Nº 01 (Pic-01) in order to proceed such operation. The Cheese and Coconut Grater is a relatively fast machine, therefore it needs to be equally fast fed.

  • Page 9: General Safety Practices

    PICTURE 07 3.4.4 - In order to remove the disc with the blade, turn the set clock-wise pulling it out. 3.4.5 - Wash all the parts with water and neutral soap and dry them. 3.4.6 - To assemble the removed parts, follow the above sequence inversely. IMPORTANT Be careful with the blades washing the disc.

  • Page 10: Safety Procedures And Notes Before Switching Machine On

    Never touch commands such as buttons, switches and knobs with wet hands, wet clothes and/or shoes. By not following these instructions operator could be exposed to severe electrical shocks or even to a FATAL situation. 4.1.2 Warnings The operator has to be well familiar with the position of ON/OFF Switch to make sure the Switch is easy to be reached when necessary.

  • Page 11: Routine Inspection

    4.2.1 Danger An electric cable or electric wire with damaged jacket or bad insulation could cause electrical shocks as well as electrical leak. Before use, check conditions of all wires and cables. 4.2.2 Advices Be sure ALL INSTRUCTIONS in this manual have been thoroughly understood. Every function and operational procedure have to be very clear to the operator.

  • Page 12: After Finishing The Work

    The operation performed by not trained or skilled personnel shall be forbidden. - Never touch turning parts with your hands or in any other way. - NEVER operate machine without all original safety devices under perfect conditions. 4.5 After Finishing The Work 4.5.1 Precautions Always TURN THE MACHINE OFF by removing the plug from the socket before cleaning the machine.

  • Page 13: Analysis And Problems Solving

    5. Analysis and Problems Solving 5.1 Problem, causes and solutions The Blenders were designed to operate with the need of minimum maintenance but the natural wearing caused by longer use of the equipment may occasionally cause some malfunctions. If such problem occurs with your Blender refer to Table 02 in which the most common situations are listed with recommended solutions.

  • Page 14: General Advices

    Roll up any loose sleeves. - SKYMSEN is not responsible for any harm or injury caused by the negligent or inappropriate use of this equipment by any operator. This equipment must be operated only by persons...

  • Page 15: Electric Diagram

    7. Electric Diagram...
  • Page 16 METALÚRGICA SIEMSEN LTDA. CNPJ: 82.983.032/0001-19 Rodovia Ivo Silveira - km 12, nº 9525, Galpão 1 - Bairro: Bateas - CEP: 88355-202 Brusque - Santa Catarina - Brasil Phone: +55 47 3211 6000 - Fax: +55 47 3211 6020 www.siemsen.com.br - comercial@siemsen.com.br 32549.0 - INGLÊS Data de Correção: 06/01/2014 BESIDES THIS EQUIPMENT, A COMPLETE RANGE OF OTHER PRODUCTS ARE MANUFACTURED, CONSULT OUR DEALERS.
