INSTALLATION MANUAL
FOLDER

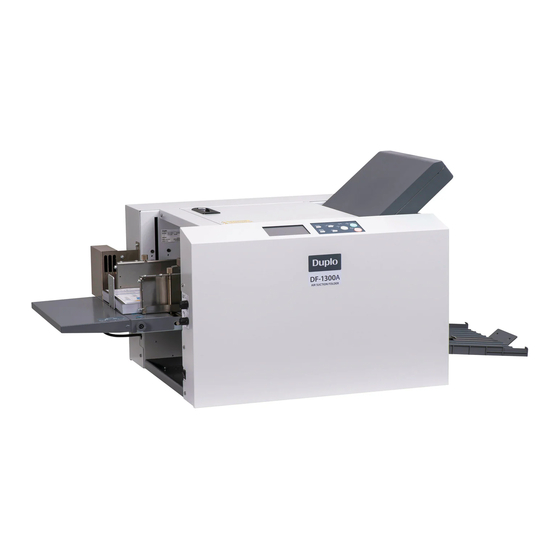

AIR SUCTION FOLDER
DF-1300/DF-1300A
Service Person Only
18J-90020-0
Reproduction or reprinting of this document in part or in whole without permission is prohibited.
19080000D
Copyright © 2019 Duplo Corporation All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Duplo DF-1300

  • Page 1 INSTALLATION MANUAL FOLDER AIR SUCTION FOLDER DF-1300/DF-1300A Service Person Only 18J-90020-0 Reproduction or reprinting of this document in part or in whole without permission is prohibited. 19080000D Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 2: Installation Precautions

    • The following power supply is required for ensuring stable use. Power supply : 100 to 240 V AC, 50/60 Hz • When using other electrical products on the same outlet, make sure the power capacity is not exceeded. Rated power of this machine is as follows: Rated power: 190 W Rated current: 1.9 to 0.8 A Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 3 Scale labels For users [m1] Instruction manual For users [m2] Safety Guide A For users [m3] DECLARATION OF CONFORMITY For EU [m4] WEEE Statement For EU [m5] Statement of Electromagnetic Compatibility (EMC) For NA [m6] Installation manual This manual Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 4 [A] Top cover ...............1 Remove the tapes that secure the press release lever. [B] Tape ................2 Remove the press release lever 1, push it inwards and pull it out. [C] Press release lever 1 ..........2 Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 5 The removed the press release lever will not be used later. Do not leave them behind. 3-2. Removing side air fan Remove the side air fan from under the paper feed tray. [A] Side air fan ..............1 Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 6: Installation Procedures

    Use the two screws removed in step 1 to attach the main cover B. Align the hole in the fan base[C] with the hole in the main cover B. [A] Screw ................2 [B] Side air fan ..............1 [C] Hole in the fan base ..........1 Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 7 Attach the folding plate 1 holding with both hands. Check that the gear on the reverse side of the folding plate 1 rotates in the front-back direction, if it is not easy to attach the folding plate 1. Attach the folding plate 1 to this machine after rotating the gear by 360 degrees in a rotating direction, when it does not rotate either in the front direction or in the back direction. Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 8 Loosen the knob screw of paper feed tray. Knob screw ..............1 Attach the auxiliary paper feed tray. [4] Auxiliary paper feed tray .........1 Secure the auxiliary paper feed tray in the knob screw. Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 9 [3] Auxiliary paper ejection guide ......1 4-3. Connecting power cord Install the power cord to the machine............1 Power cord (For EU) ............1 Power cord (For NA) Do not touch the power plug with wet hands. Otherwise electric hazards may occur. [5], [6] Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 10: Setting Control Panel

    Setting Control Panel 5. Setting Control Panel For the setting of the language to be displayed, refer to the instruction manual of this machine. Checking Operations • Use the paper to be used actually when checking operations. • The folding position may be subtly different when using the machine with the settings at the shipment unchanged under the influence of the thickness and stiffness of paper to be used. The folding position may also be subtly different as the characteristics of paper may vary depending on the purchase season even if the paper of the same size is purchased. Installation procedures for checking operations, refer to the instruction manual of this machine. Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 11 Memo 6. Checking Operations Copyright © 2019 Duplo Corporation All Rights Reserved...
  • Page 12 Copyright © 2019 Duplo Corporation All Rights Reserved...
