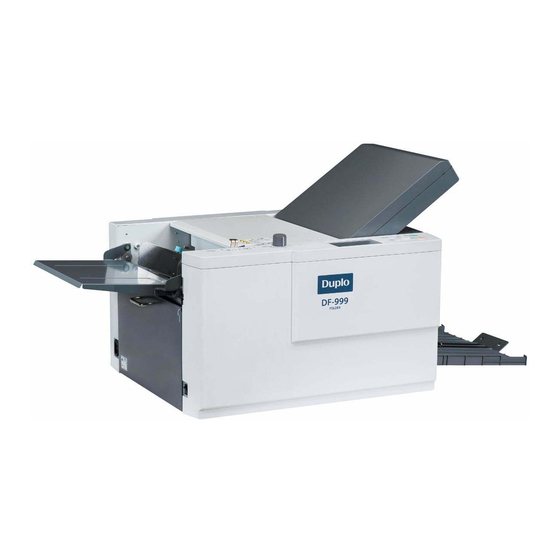

- Page 1 INSTALLATION MANUAL FOLDER DUPLO FOLDER DF-999/DF-999A DF-990/DF-990A Service Person Only 18H-90020-0 Reproduction or reprinting of this document in part or in whole without permission is prohibited. 19030000D Copyright © 2019 Duplo Corporation All Rights Reserved...
- Page 2 Power supply • Make sure the power supply used is always within the following range. Power supply: 100 to 240 V, 50/60 Hz • When you power other appliances from the same wall outlet, make sure that the combined power consumption does not exceed the power supply capacity. Rated power: 100 W Rated current: 1.0 A to 0.5 A Copyright © 2019 Duplo Corporation All Rights Reserved...
- Page 3 If the folding plate 1 is set before removing the press release lever, the folding plate 1 may become deformed or damaged. Be sure not to turn on the power before removing the press release lever. Open the top cover. [A] Top cover ...............1 Copyright © 2019 Duplo Corporation All Rights Reserved...
- Page 4 3. [D] Press release lever 2 ..........2 Close the top cover opened in step 1. [A] Top cover ...............1 Step 1 of “3. Preparation” (p.3) Installation Procedures Installation procedures of this machine, refer to the instruction manual of this machine. Setting Control Panel For the setting of the language to be displayed, refer to the service manual of this machine. Copyright © 2019 Duplo Corporation All Rights Reserved...
