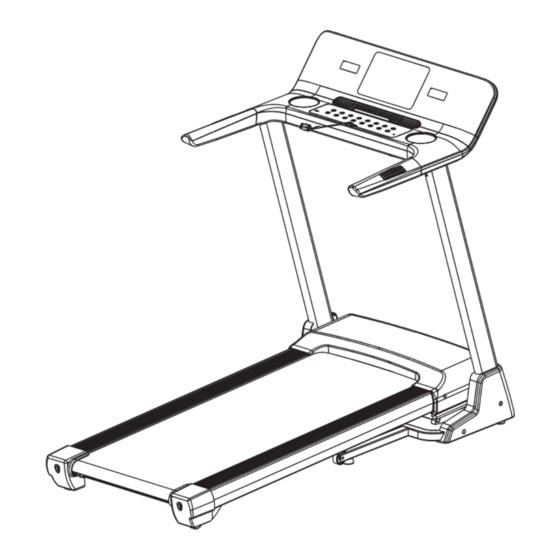

TR 1400 TREADMILL
AUTO
FITSHOW AND
CARDIO
INCLINE
BLUETOOTH ENABLED
USER MANUAL
AUDIO ENABLED
FitSHOW APP ENABLED
CAUTION
Visit facebook.com/trojanhealth
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
www.trojanhealth.co.za
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
www.instagram.com/trojanhealth
FUTURE REFERENCE.
#22M03T014.1 TR1400 Treadmill UM - Amendment.indd 1
2022/05/06 13:57
