INSTALLATION INSTRUCTIONS
11
C
11.1

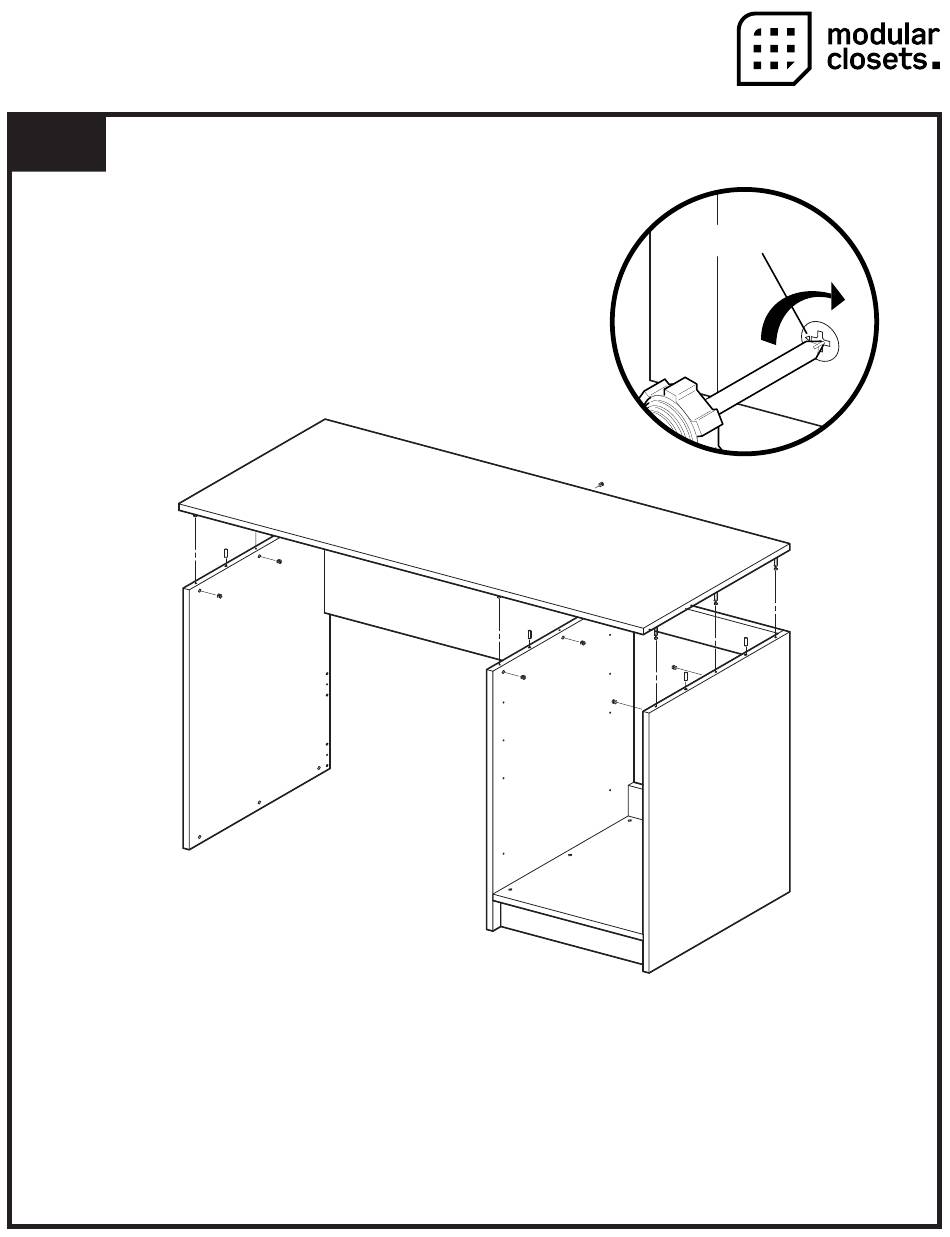

Insert eight Wood Dowels (K) into holes in edges of Left Side Panel (A), Right Side Panel (B) and Leg (C).
11.2
Install Top (D) onto assembled components. BE SURE dowel pins in Left Side Panel (A), Right Side Panel (B)
and Left Leg (C) engage drilled holes in Top and Top is pressed flush against Side Panels and Leg.
11.3
Insert Camlocks (J) in holes in Left Side Panel (A), Right Side Panel (B), Left Leg (C) and Stretcher (H). BE
SURE Camlocks engage Cam Posts, and are fully seated in Side Panels, Leg and Stretcher. Tighten Camlocks
(H) clockwise to lock.
ASSEMBLY AND
VANITY, 1936L
K
J
J
J
K
J
J
J
A
ARROW TOWARD
CAM POST OPENING
K
J
K
B
