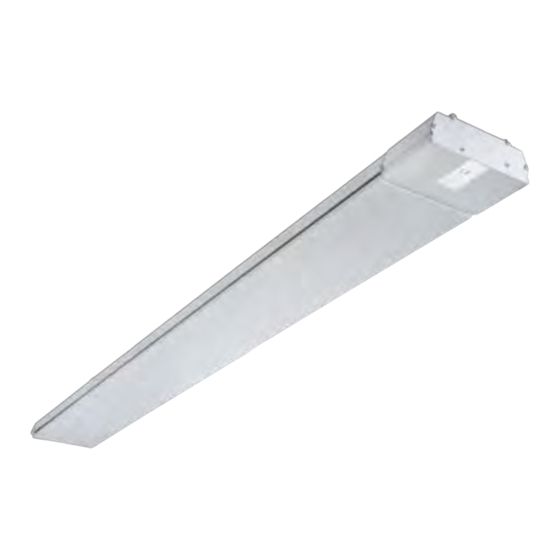

- Page 1 (THHAAW-UL) Product Manual HEATSTRIP® Classic with Remote and App White (THHAA-UL) www.heatstrip.com US & CANADA...
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before installing or using this heater. This heater is hot when in use . To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. -
Page 3: Installation
INSTALLATION 1. This equipment shall be installed only by qualified personal who are familiar with the construction and operation of the apparatus and hazard involved. 2. The heater is fitted with an electrical connection box and should be connected as a fixed installation by a licensed electrical professional in accordance with the relevant electrical code. - Page 4 Specifications - US & Canada VOLTAGE POWER CURRENT DIMENSIONS WEIGHT (kg / HEATING MODEL CONNECTION (Watts) (Amps) (mm / in) AREA (m2 x ft2) 1371 x 165 x 48mm 4-5m THH2400AAW-UL 2400 Gang Box 54” x 6.5” x 1.9”in 15lb 43-54ft 1780 x 165 x 48mm 5-6m...
- Page 5 HEATSTRIP , but you never have to worry about running out ® of gas, no refilling, no unattractive gas bottle to waste space; and HEATSTRIP actually improves the value of your property.
-
Page 6: Spot Heating Principle
Option 1 and 2 show a comparison between heating an entire area or spot heating over a table. ® The bottom layout shows the flexibility of using HEATSTRIP to provide a comfortable environment, even when the layout of the area is very unusual. -
Page 7: Radiant Footprint
(ie. people), are within the direct radiant footprint of the heater. The diagram to the left shows the radiant ® footprint of HEATSTRIP Classic with Remote and App control, and is an approximate guide based on a fully enclosed outdoor environment. -
Page 8: Selection Guide
For indoor spot heating, a minimum heating capacity of 400W/m is recommended. ® The table below outlines the coverage of each HEATSTRIP Classic with Remote and App White model based on 3 different scenarios with direct overhead mounting. For example, for an outdoor area that is protected from prevailing winds by walls, café... - Page 9 The diagrams below provide an easy selection guide for the approximate model and quantity of heaters required to heat common residential table settings. ® Selections are based on HEATSTRIP Classic being mounted at 8ft from the floor in a fully enclosed undercover outdoor area.
-
Page 10: Installation Requirements
Classic with Remote and App control (THHAA-UL) is on the ceiling ® directly above the area to be heated. If this is not possible, HEATSTRIP can be mounted on a wall and angled downwards. In this situation, ensure the mounting height is in the range of 2.1m/6.8ft to 2.7m/8.8ft and the table is within 2.5m/8.2ft of the wall. -
Page 11: Installation Location
Installation location — the diagrams below provide the minimum recommended clearances in mm. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. -
Page 12: Mounting Options
Mounting options ® Installing the HEATSTRIP Classic with Remote and App (THHAA-UL) is simple and easy using the standard mounting brackets supplied. For other irregular locations there are range of mounting options available - refer to diagrams below ® The HEATSTRIP... -
Page 13: Standard Mounting Brackets
Standard mounting brackets ® The HEATSTRIP Classic comes with a pair of standard mounting brackets. These adjustable brackets allow direct ceiling or wall mount, and come with preset angle options of parallel, 22.5° and 45°. “X” MODEL MINIMUM DISTANCE inches (“) THH2400AAW-UL 39”3... -
Page 14: Extension Mount Bracket
Extension Mount Bracket ® The Extension Mount bracket allows HEATSTRIP Classic with Remote and app units to be lowered from high ceilings using rigid connections. The brackets are designed to be used with 20mm x 20mm x 1mm tube (SHS), and can be supplied as brackets only for customising the length of the drop on site, or supplied as a complete kit with brackets, pre-cut poles and connections. -
Page 15: Flush Mount Enclosure
Flush mount enclosure ® The Flush Mount Enclosure is an ideal way to neatly install the HEATSTRIP into a ceiling. They are available for ® all HEATSTRIP Classic models, and are supplied as a one-piece unit suitable for mounting individual heaters. -
Page 16: Remote Control Operation
Remote Control Operation Receiver • Receiver is located on the heater. Signal Transmitter • To use the remote controller, aim the transmitter to the heater. A line of sight transmission is required for the unit to Temperature Control Button function. •... - Page 17 THHAAW-UL Setup Instructions Visit the Apple App Register and login store or Google Play into TuyaSmart and download App. TuyaSmart App (Make sure Wi-Fi is enabled) Connect the HEATSTRIP Heater Once the power is switched on, hold the + to Power. (Either Plug-In or Hard-...
- Page 18 3. Once paired, click on the Tuya Smart App 4. Select “Me” 5. Select “Google Assistant” 6. Select “Link with Google Assistant” 7. Select “Agree and link” 8. Choose device “Select HEATSTRIP Intense with Remote & App 9. Pairing completed HEATSTRIP Classic THHAA...
-
Page 19: Maintenance
Carrying out the cleaning process at least every three months will reduce the amount of build up and keep the Heatstrip in good condition. If the heater is in a corrosive environment eg. salt spray, we recommend that you clean your heater with a light spray of fresh water every week. - Page 20 CHECK END SYMPTOM REASON CHECK TECHNICIAN USER Take photos of Damaged during Inspect units for Return to factory for repair/ Freight damage packaging and unit and transport damage replacement return to factory Parts missing Contact factory for Missing brackets from box replacement brackets No power to unit Check that there...
-
Page 21: Warranty Terms And Conditions
The below Warranty Terms and Conditions apply for International Customers. ® Thermofilm warrants to the original owner that HEATSTRIP Classic with Remote and App (THHAA-UL) products will be free from defects in materials and workmanship for a period of 12 months from the date of purchase in accordance with the follow- ing warranty terms and conditions.
