HEATSTRIP THX 2400 Quick Reference Manual

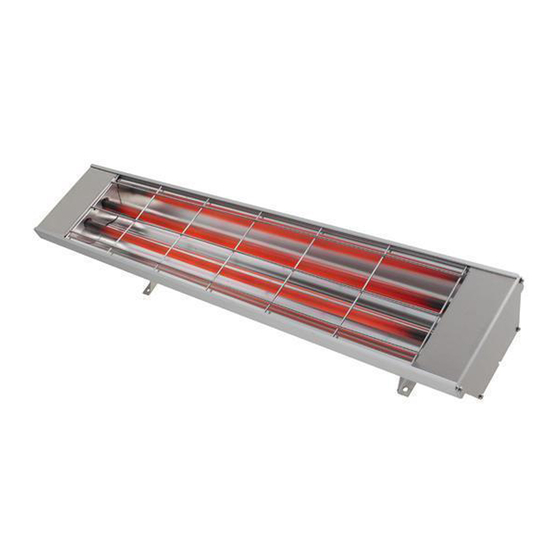

Heatstrip Max is a range of high intensity electric, infra-red radiant heaters for tough outdoor and in-
door heating applications.
Features:
High output radiant heat
•
Unique low-glow heating technology
•
Suitable for permanently exposed outdoor
•
mounting
Maintenance free and corrosion protected
•
High strength incoloy element
•
Commercial grade quality — 2 year warranty
•
Multiple mounting options and applications
•
Australian designed, engineered and assembled
•

Technical Specifications

MODEL POWER
(WATTS)
THX 2400 2400
THX 3600 3600
MODEL
HEATER TYPE
POWER
CONNECTION
APPROVALS
MOUNTING HEIGHT
MOUNTING OPTIONS
PROTECTION RATING
COUNTRY OF MANUFACTURE
QUICK REFERENCE GUIDE
CURRENT DIMENSIONS
(AMPS)
10 854 x 170 x 80
15 1184 x 170 x 80
High intensity electric radiant, infra-red overhead heater with Incoloy 840
element and anodized alloy casing
230-240 Volts Nominal at 50—60 Hertz, Single Phase
3 Core Cable 2.5mm
AUSTRALIA / NZ
MINIMUM
RECOMMENDED
MAXIMUM
Suitable for ceiling, wall, beam and chain/wire mounting. Also available for
extension mount using rigid fixing poles.
IPX5 Protection from water ingress from all directions
Australia
WEIGHT
(mm) (Kg)
6
8
2
2.1 m
2.4 m to 3.0 m
3.5 m (For higher ceiling heights, units can be
lowered using chains & wires or optional bracket
kits)
PLUG
LEAD
LENGTH
(mm)
1000 YES
1000 NO
