Mess Hut Assembly

Components are Labelled in Black

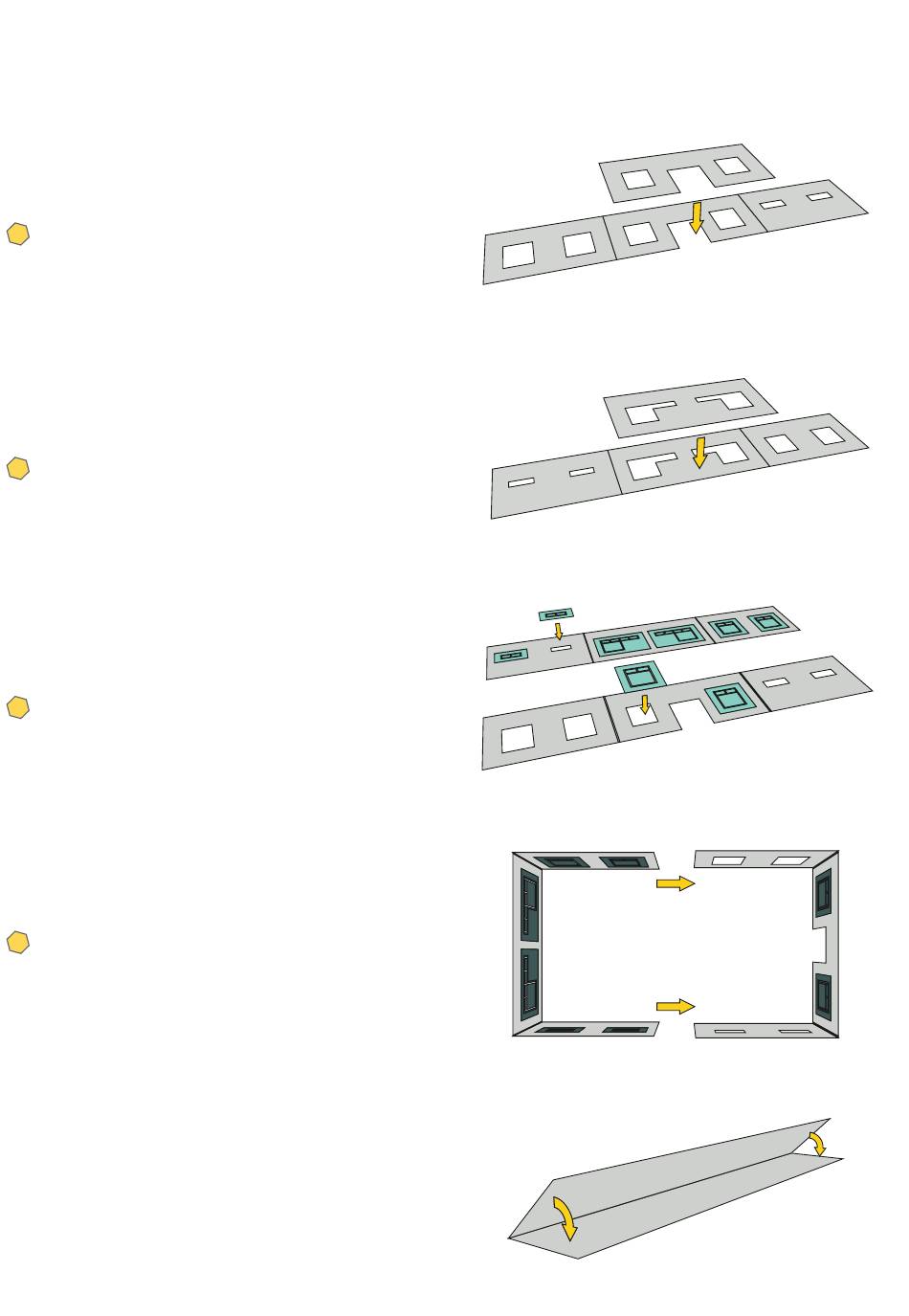

1. Detach Component A and fold the walls along
the crease lines. Next, detach Inner Wall A and
glue it to the inside of the Component A.
Ensure that there is even spacing around the
i
window openings and the bottom of the walls
are flush with one another.
2. Detach Component B and fold the walls along
the crease lines. Next, detach Inner Wall B and
glue it to the inside of the Component A.
Ensure that there is even spacing around the
i
window openings and the bottom of the walls
are flush with one another.
3. Locate the Glazing Sheet and cut out the windows
along the thin outer lines. Then, glue each one
into position.
Ensure that the side wall glazing is glued to
i
Component B (the window openings on
Component A are slightly bigger).
4. Glue the side walls of Component B to the inside
of Component A's side walls.
The window openings on the inner layer are
i
slightly smaller than the outer openings to give
the model depth. Try to ensure that these are
centrally aligned.
5. Detach Roof Packers A (x6), B (x6) and C (x3).
Fold each one along the score line and glue
together.
