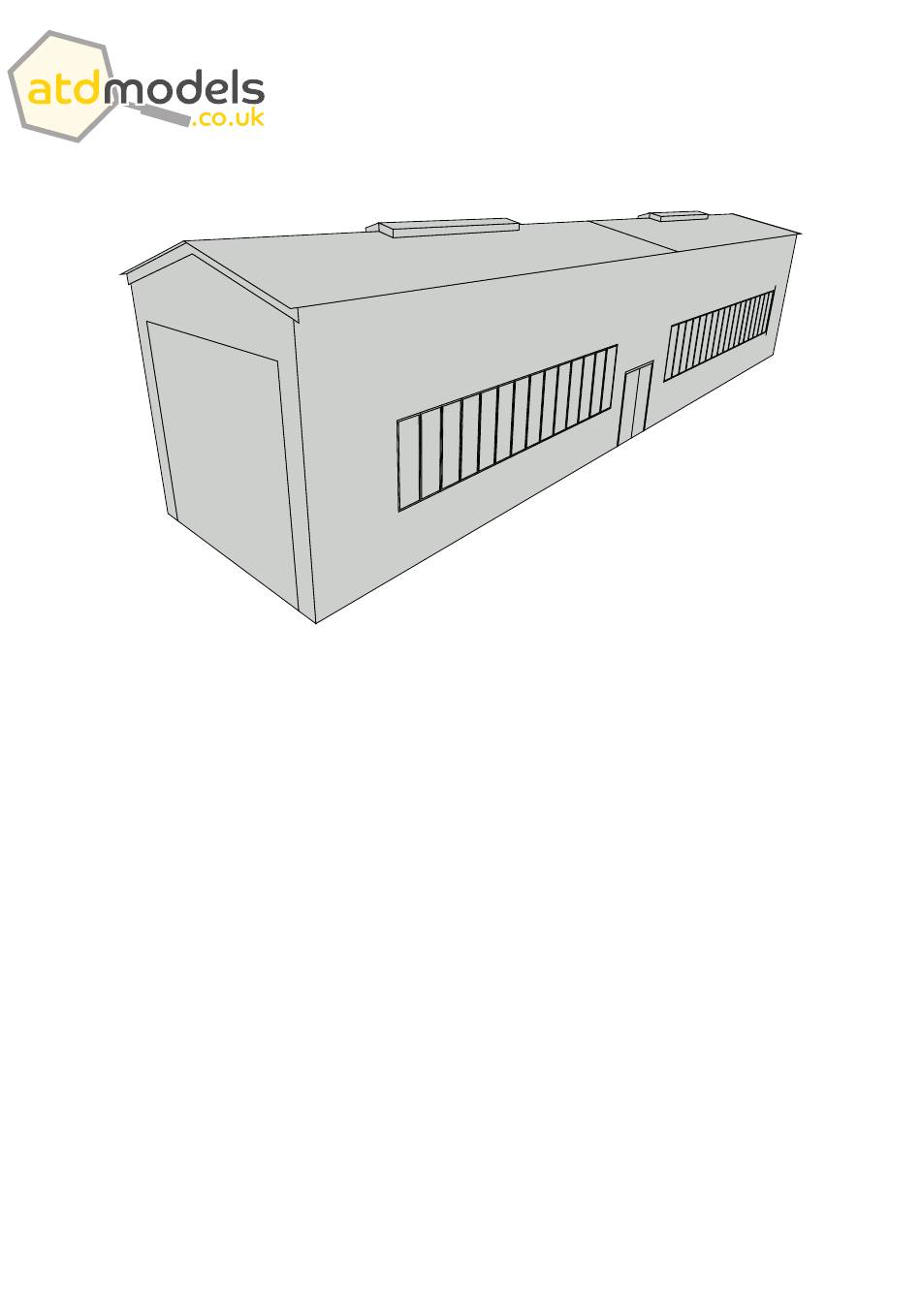

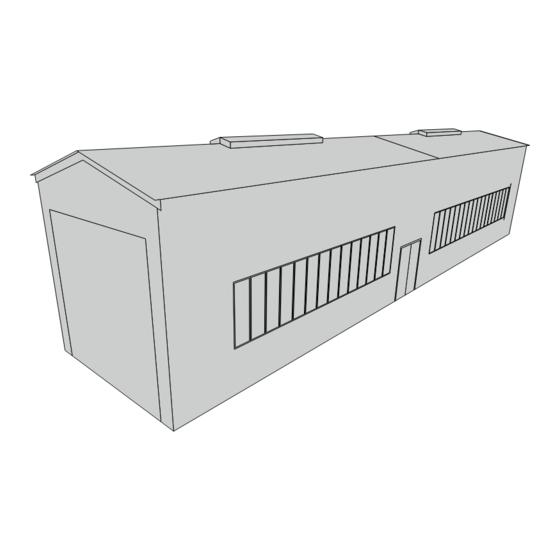

ATD022 Single Road Traction Maintenance Depot
Instruction Manual
Tools Required
Modellers Knife (with a fresh blade)
Cutting Mat
Modelling Glue (we recommend Deluxe Materials Roket Card Glue)
Fine Tip Applicator
Low-tac Masking Tape
Clips / Clamps
Tips
Prior to starting your build, we recommend reading through the instructions to familiarise
yourself with the build style of the kit.
We recommend painting any white edges as you remove the components from the sheet to
improve the finished look. We advise watercolour paints for the best finish.
Each component is held in the sheet using score lines, indicated by a scissor symbol. To remove
the component from the sheet, carefully run the tip of your modelling knife through the score line.
Remove each component as it is required to prevent losing or mixing it up with another component.
Ensure that glue is distributed evenly and not too close to the edge as it may ooze out when
pressure is applied.
Use low-tac masking tape, clamps and weights to aid the assembly process.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for atd models ATD022
Summary of Contents for atd models ATD022
- Page 1 ATD022 Single Road Traction Maintenance Depot Instruction Manual Tools Required Modellers Knife (with a fresh blade) Cutting Mat Modelling Glue (we recommend Deluxe Materials Roket Card Glue) Fine Tip Applicator Low-tac Masking Tape Clips / Clamps Tips Prior to starting your build, we recommend reading through the instructions to familiarise yourself with the build style of the kit.
- Page 2 Detach Outer Wall A and place it face down on your work surface. Then detach SF2 and glue it to Outer Wall A. SF2 should be positioned so that there is equal space around the window apertures and the door is aligned to its respective cutout.
- Page 3 6. Locate the Glazing Sheet and cut out the windows. Apply a small bead of glue in each window recess. Then, carefully position the windows, ensuring that they’re correctly aligned from the outside of the building. The cut line for the windows is the thin outer line. Detach Inner Wall A along with Inner Wall B and glue them into position.
- Page 4 10. Detach the Inner Roof. Then locate the tabs and pre- fold them along the score lines. Next, place the Inner Roof face down on your work surface so the black side is facing up. Then apply glue to the tabs on one side of the component. Carefully position the glued tabs so that they’re butt-up to the top of the Inner Wall, as per the diagram below.
- Page 5 12. (a) Locate the notches on either side of the wall at one end of the depot and apply glue inside them. Then take one of the end frames and glue it into position. The frames have micro tabs that slot into the notches.
- Page 6 We’d love to see photos of your finished models. Please send them to enquiries@atdmodels.co.uk for a chance to be featured on our social media pages. © Copyright ATD Models | All Rights Reserved © Copyright ATD Models | All Rights Reserved...
