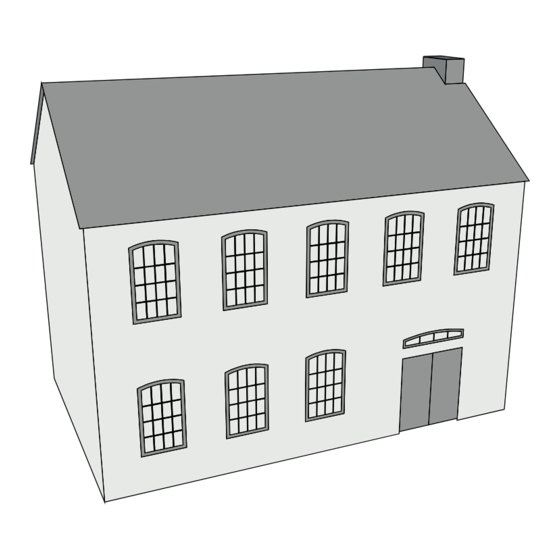

ATD010 - OO (1:76 Scale) Stone Workshop
- Instruction Manual
Tools Required
Modellers Knife (with a fresh blade)
Cutting Mat
Modelling Glue (we recommend Deluxe Materials Roket Card Glue)
Fine Tip Applicator
Low-tac Masking Tape
Clips / Clamps
Tips
Prior to starting your build, we recommend reading through the instructions to familiarise
yourself with the build style of the kit.
We recommend painting any white edges as you remove the components from the sheet to
improve the finished look. We advise watercolour paints for the best finish.
Each component is held in the sheet using score lines, indicated by a scissor symbol. To remove
the component from the sheet, carefully run the tip of your modelling knife through the score line.
Remove each component as it is required to prevent losing or mixing it up with another component.
Ensure that glue is distributed evenly and not too close to the edge as it may ooze out when
pressure is applied.
Use low-tac masking tape, clamps and weights to aid the assembly process.
Advertisement
Related Manuals for atd models Stone Workshop ATD010
Summary of Contents for atd models Stone Workshop ATD010
- Page 1 ATD010 - OO (1:76 Scale) Stone Workshop - Instruction Manual Tools Required Modellers Knife (with a fresh blade) Cutting Mat Modelling Glue (we recommend Deluxe Materials Roket Card Glue) Fine Tip Applicator Low-tac Masking Tape Clips / Clamps Tips Prior to starting your build, we recommend reading through the instructions to familiarise yourself with the build style of the kit.
- Page 2 1. Detach Wall A and place it face down on your work surface. Then fold the tabs over on themselves and glue. Repeat this step for Wall B. Apply firm pressure on the tabs until the glue is semi cured to stop them from lifting. 2a.
- Page 3 4. Fold the tabs on Wall C inwards by 90 degrees. Repeat this step for Wall D. 5a. Detach Wall G and glue it to Wall C. 5b. Detach Wall H and glue it to Wall D. Ensure there is an even gap between the Ensure there is an even gap between the crease lines on component C and the edge crease lines on component D and the edge...
- Page 4 8. Now turn the building on its side. Detach the Ground Floor and glue it into the building. You will notice that there are notches cut out in the wall that will align with the tabs on the floor like a jigsaw. There is no tab where the floor sits behind the door.
- Page 5 11c. Glue the infills into position, as per the 11d. Fold the lower tabs, wrapping them around illustration below. the infills and glueing together. 12. Glue the Chimney Breast into position, as 13. Detach the trussing (x2). Carefully glue them per the illustration below.
- Page 6 To view our other card kits, more products and find your local stockist, visit www.atdmodels.co.uk We’d love to see photos of your finished models. Please send them to enquiries@atdmodels.co.uk for a chance to be featured on our social media pages. © Copyright ATD Models | All Rights Reserved...
