atd models ATD009 Instruction Manual

Oo (1:76 scale) stone mill

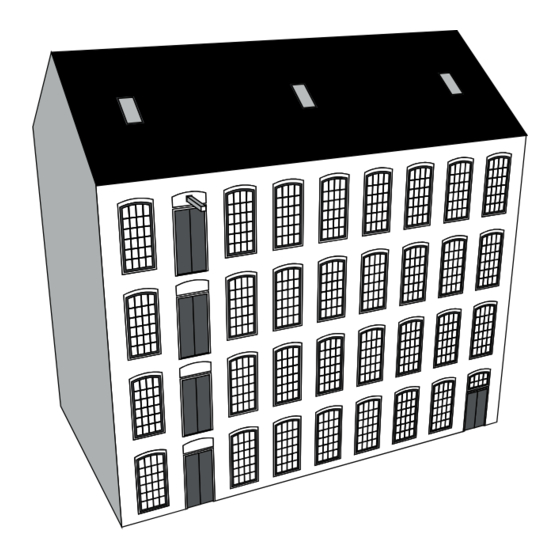

ATD009 - OO (1:76 Scale) Stone Mill

- Instruction Manual

Tools Required

Modellers Knife (with a fresh blade)

Cutting Mat

Modelling Glue (we recommend Deluxe Materials Roket Card Glue)

Fine Tip Applicator

Low-tac Masking Tape

Clips / Clamps

Prior to starting your build, we recommend reading through the instructions to familiarise

yourself with the build style of the kit.

We recommend painting any white edges as you remove the components from the sheet to

improve the finished look. We advise watercolour paints for the best finish.

Each component is held in the sheet using score lines, indicated by a scissor symbol. To remove

the component from the sheet, carefully run the tip of your modelling knife through the score line.

Remove each component as it is required to prevent losing or mixing it up with another component.

Ensure that glue is distributed evenly and not too close to the edge as it may ooze out when

pressure is applied.

Use low-tac masking tape, clamps and weights to aid the assembly process.

Table of Contents

Do you have a question about the ATD009 and is the answer not in the manual?

Page 1 ATD009 - OO (1:76 Scale) Stone Mill - Instruction Manual Tools Required Modellers Knife (with a fresh blade) Cutting Mat Modelling Glue (we recommend Deluxe Materials Roket Card Glue) Fine Tip Applicator Low-tac Masking Tape Clips / Clamps Tips Prior to starting your build, we recommend reading through the instructions to familiarise yourself with the build style of the kit.
Page 2 1. Detach Wall A and place it face down on your work surface. Then fold the tabs over on themselves and glue. Repeat this step for Wall B. Apply firm pressure on the tabs until the glue is semi cured to stop them from lifting. 2a.
Page 3 4. Fold the tabs on Wall C inwards by 90 5. Detach Wall G and glue it to Wall C. Repeat degrees. Repeat this step for Wall D. this step for Wall H and D. Ensure there is an even gap between the crease lines and the edge of the walls.
Page 4 8a. Now turn the building on its side. Detach the Ground Floor and glue it into the building. You will notice that there are notches cut out in the wall that will align with the tabs on the floor like a jigsaw. You may find it easier to apply glue inside the notches before positioning the tabs.
Page 5 10. Detach the roof. Next, locate the glazing sheet 11. Apply a bead of glue to the tops of each and cut out the sky lights (x6). Then, apply a wall. Then fold the roof along the crease small amount of glue to each window and line and position it on top of the building.
