Summary of Contents for Dwyer Instruments SN Series

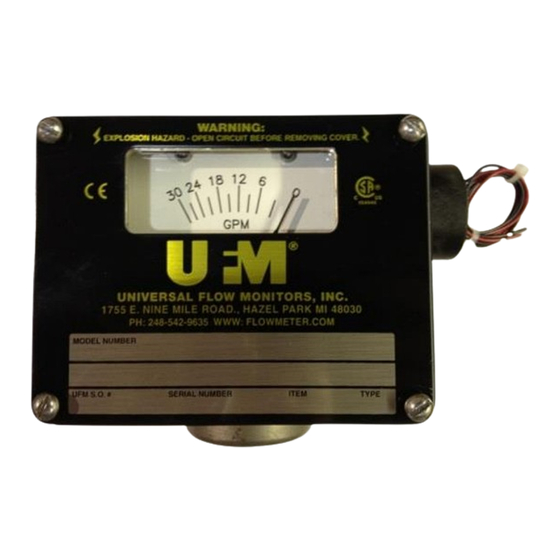

- Page 1 SERIES SN/SM/SH, MN/MM/MH, LN/LE, XHF STANDARD VANE IN-LINE VARIABLE AREA FLOWMETER CONTROL BOXES WITH TRANSMITTERS Installation and Operation Manual U F M UNRESTRICTED...
-
Page 2: Table Of Contents
Table of Contents General Vane Piston Switch Manual ....................5 NAMEPLATES AND PRODUCT ID .......................... 5 Installation ................................7 Vane/Piston AX/H ..........................8 Maximum Dimensions ............................8 Quick Set Up ............................... 9 3.2.1 Wiring Using Pre-Installed Wires: ............................... 9 3.2.2 Wiring Removing Pre-Installed Wires: ............................ - Page 3 Nameplates and Product ID ..........................17 Vane/Piston RX/H ..........................19 Maximum Dimensions ............................19 Installation ................................. 23 References ................................. 23 Device Identification ............................23 Product Overview .............................. 25 Process Interface ..............................25 5.6.1 Magnetic Sensors ..................................25 5.6.2 Host Interface: Process Flow ..............................25 Status Information .............................
- Page 4 Common-Practice Supported Commands ......................36 6.3.1 Burst Mode ....................................36 6.3.2 Catch Device Variable ................................36 Device-Specific Commands ..........................36 Command #129: Write Low Alarm Setpoint ......................37 6.5.1 Request Data Bytes ................................... 37 6.5.2 Response Data Bytes ................................37 6.5.3 Command-Specific Response Codes ............................
-
Page 5: General Vane Piston Switch Manual
1 General Vane Piston Switch Manual Installation and Operation Manual for series: LL, LP, LH, SN, SM, SH, MN, MM ,MH, SX and MX for A, L or Z control boxes with 0, 1 or 2 switches. NAMEPLATES AND PRODUCT ID This manual applies to all vane/piston meters that have one of the designators in the model codes shown in the table shown below. - Page 6 Wire directly to the switch terminal screws. Figure 2: Device overview In one switch units, the cam is easily adjusted by depressing the outer ring and turning it to the desired position Figure 3: Cam adjustment U F M UNRESTRICTED...
-
Page 7: Installation
WARNING: This instrument was made for the specific use stated at the time of order. Any other use may cause injury. Read instructions before using the device. Supply Connections—Wire Sizes: Wire used to connect any Switches included must be in accordance with all local and national codes. -
Page 8: Vane/Piston Ax/H
2 Vane/Piston AX/H Installation and Operation Manual Series: LL, LP, LH, SN, SM, SH, MN, MM, MH, SX and MX Used with control boxes: A, L, or Z with 4-20 mA Maximum Dimensions Figure 4: LL, LP, and LH dimensions Figure 5: SX, SN, SM, and SH dimensions U F M UNRESTRICTED... -
Page 9: Quick Set Up
Quick Set Up 2.2.1 Wiring Using Pre-Installed Wires: Complete the loop circuit using the 2 pre-installed 18”, 22AWG wires provided. IMPORTANT: Observe polarity—The red wire is positive (+), and the black wire is negative (-). 2.2.2 Wiring Removing Pre-Installed Wires: Open cover and remove pre-installed wires. -
Page 10: Abbreviations And Definitions
2.3.4 Abbreviations and Definitions Analog to Digital Converter Central Processing Unit (of microprocessor) Digital to Analog Converter EEPROM Electrically-Erasable Read-Only Memory Read-Only Memory Primary Variable Secondary Variable HART Communication Foundation Frequency Shift Keying Physical Layer Process Interface 2.4.1 Magnetic Sensors There are two built-in hall-effect sensors measuring the rotation of a permanent magnet that is mounted onto the flowmeter shaft. -
Page 11: Dynamic Variables
Dynamic Variables Two Dynamic Variables are implemented. Table 3: Dynamic Variables table Meaning Units Volumetric Flow Reading GPM, CMH, Totalizer Value based on Follows PV Units The PV is derived using a calibrated linearization table applied to A/D converter readings of hall-effect sensors. -
Page 12: Burst Mode
2.6.1 Burst Mode This Field Device does not support Burst Mode. 2.6.2 Catch Device Variable This Field Device does not support Catch Device Variable. Device-Specific Commands The following device-specific commands are implemented: Read Alarm Setpoints Write Low Alarm Setpoint Write High Alarm Setpoint Reset Totalizer Command #128: Read Alarm Setpoints Reads the High and Low Alarm Setpoints. -
Page 13: Command #129: Write Low Alarm Setpoint
Command #129: Write Low Alarm Setpoint Writes the setpoint for the Low Alarm. 2.9.1 Request Data Bytes Table 8: Request Data Bytes table Byte Format Description Float Low Alarm Setpoint 2.9.2 Response Data Bytes Table 9: Response Data Bytes table Byte Format Description... -
Page 14: Command-Specific Response Codes
2.10.3 Command-Specific Response Codes Table 13: Command-Specific Response Codes table Code Class Description Success No Command-Specific Errors 1-15 Undefined Error Access Restricted 17-31 Undefined Error Busy 33-127 Undefined 2.11 Performance 2.11.1 Sampling Rates Typical sampling rates are shown in the following table. Table 14: Sampling Rates table PV digital value calculation 10 per second... -
Page 15: Annex A: Capability Checklist
Annex A: Capability Checklist Table 16: Capability Checklist table Manufacturer, model and revision Universal Flow, ME Transmitter, Rev1 Device type Transmitter HART revision Device Description available Number and type of sensors 2 internal Number and type of actuators Number and type of host side signals 1: 4 - 20mA analog Number of Device Variables Number of Dynamic Variables... -
Page 16: Vane/Piston Axø
3 Vane/Piston AXØ Installation and Operation Manual Series: LL, LP, LH, SN, SM, SH, MN, MM ,MH, SX and MX for A, L or Z control boxes with transmitter. Maximum Dimensions Figure 8: Figure 9: LL, LP, and LH dimensions Figure 10: SX, SN, SM, and SH dimensions 16 | U F M... -
Page 17: Nameplates And Product Id
Figure 11: MN, MM, MH, and MX Nameplates and Product ID This manual applies to all vane/piston meters that have the designator “AX0”, “LX0” or “ZX0” in the model code. This can be seen on the name plate as shown below. Figure 12: Nameplate and Product ID 17 | U F M... - Page 18 18 | U F M UNRESTRICTED...
-
Page 19: Vane/Piston Rx/H
4 Vane/Piston RX/H Installation and Operation Manual Series: LL, LP, LH, SN, SM, SH, MN, MM, MH, SX, MX, LN, LE and XHF Used with R control boxes with 4-20 mA transmitter or HART and optional mechanical switches. Maximum Dimensions Figure 13: LL, LP, and LH Dimensions 19 | U F M... - Page 20 Figure 14: SX, SN, SM, and SH Dimensions Figure 15: XHF Dimensions 20 | U F M UNRESTRICTED...
- Page 21 Figure 16: R Box shown open with optional mechanical switch 21 | U F M UNRESTRICTED...
- Page 22 Figure 17: Transmitter Wiring with or without HART Figure 18: Mechanical (Optional) Switch Wiring 22 | U F M UNRESTRICTED...
-
Page 23: Installation
Installation For best results, the meters may be installed in any position as long as proper piping installation requirements are observed. This includes sufficient support of adjacent piping to minimize the system’s inherent vibration. Unions of the same pipe size and full port isolation ball valves may be installed for ease of removal and servicing of equipment, if necessary. - Page 24 Manufacturer Name: Universal Flow Model Name(s): ME Transmitter Manufacture ID Code: 24692 (6074 Hex) Device Type Code: (E1EF Hex) HART Protocol Revision Device Revision: Number of Device Variables Physical Layers Supported Physical Device Category Transmitter, Non-DC-isolated Bus Device Figure 20: Device Identification 24 | U F M UNRESTRICTED...
-
Page 25: Product Overview
Product Overview The ME Transmitter is a two-wire loop-powered flow transmitter, with a 4-to-20mA output. This transmitter uses a non-contact magnetic encoder for measuring the displacement of the shaft/pointer on standard UFM flowmeters. It is an add-on feature to SN/SM/SH,MN/MM/MH,LL/LP/LH,LN/LE and XHF model flow meters as manufactured by Universal Flow Monitors, Inc. -
Page 26: Status Information
A guaranteed linear over-range is provided. The up-scale current of 24mA can indicate device malfunction. Current values are shown in the table below. Table 17: Current Values table Direction Values (percent of range) Values (mA or V) 0% ± 0.5% Down 3.92 to 4.08 mA Linear over-range... -
Page 27: Universal Commands
Table 19: Command 48-Byte Data Byte Description Data Device Specific Status Only Byte 0 is used Extended Device Status Bit 1 will be set when an alarm condition is active. Device Operating Mode Standard Status 0 Not used "Not used" bits are always set to 0. Device does not support extended device status, all device status activity is included in the device status byte. -
Page 28: Command #130: Write High Alarm Setpoint
4.10 Command #130: Write High Alarm Setpoint Writes the setpoint for the High Alarm. 4.10.1 Request Data Bytes Table 21: Request Data Bytes table Byte Format Description Float High Alarm Setpoint 4.10.2 Response Data Bytes Table 22: Response Data Bytes table Byte Format Description... -
Page 29: Unit Conversion
4.11.2 Unit Conversion Internally, the transmitter uses Gallons per Minute. Conversions are made using a floating point factor. Values are directly converted from GPM when possible, however Alarm values changed between units are converted from stored unit value: Table 25: Unit Conversion table New Unit Previous Unit Factor... -
Page 30: Vane/Piston Tx/H
5 Vane/Piston TX/H Installation and Operation Manual Series: LL, LP, LH, SN, SM, SH, MN, MM, MH, SX, MX, LN, LE and XHF Used with T control boxes with 4-20 mA transmitter or HART and optional mechanical switches. Maximum Dimensions Figure 22: LL, LP, and LH dimensions Figure 23: SX, SN, SM, and SH dimensions 30 |... - Page 31 Figure 24: XHF dimensions Figure 25: T Box with Optional Switch and Transmitter 31 | U F M UNRESTRICTED...
- Page 32 Figure 26: Transmitter Wiring with or without HART Figure 27: Mechanical (Optional) Switch Wiring 32 | U F M UNRESTRICTED...
-
Page 33: Installation
Installation For best results, the meters may be installed in any position as long as proper piping installation requirements are observed. This includes sufficient support of adjacent piping to minimize the system’s inherent vibration. Unions of the same pipe size and full port isolation ball valves may be installed for ease of removal and servicing of equipment, if necessary. -
Page 34: Product Overview
Product Overview The ME Transmitter is a two-wire loop-powered flow transmitter, with a 4-to-20mA output. This transmitter uses a non-contact magnetic encoder for measuring the displacement of the shaft/pointer on standard UFM flowmeters. It is an add-on feature to SN/SM/SH,MN/MM/MH,LL/LP/LH,LN/LE and XHF model flow meters as manufactured by Universal Flow Monitors, Inc. -
Page 35: Status Information
A guaranteed linear over-range is provided. The up-scale current of 24mA can indicate device malfunction. Current values are shown in the table below. Table 26: Current Values table Direction Values (percent of range) Values (mA or V) 0% ± 0.5% Down 3.92 to 4.08 mA Linear over-range... -
Page 36: Universal Commands
Table 28: Command 48-Byte Data Byte Description Data Device Specific Status Only Byte 0 is used Extended Device Status Bit 1 will be set when an alarm condition is active. Device Operating Mode Standard Status 0 Not used "Not used" bits are always set to 0. Device does not support extended device status, all device status activity is included in the device status byte. -
Page 37: Command #129: Write Low Alarm Setpoint
Command #129: Write Low Alarm Setpoint Writes the Setpoint for the Low Alarm. 5.5.1 Request Data Bytes Table 29: Request Data Bytes table Byte Format Description Float Low Alarm Setpoint 5.5.2 Response Data Bytes Table 30: Response Data Bytes table Byte Format Description... -
Page 38: Command-Specific Response Codes
5.6.3 Command-Specific Response Codes Table 34: Command-Specific Response Codes table Code Class Description Success No Command-Specific Errors 1-15 Undefined Error Access Restricted 17-31 Undefined Error Busy 33-127 Undefined Performance 5.7.1 Sampling Rates Typical sampling rates are shown in the following table. Table 35: Sampling Rates table PV digital value calculation 10 per second... -
Page 39: Annex A: Capability Checklist
Annex A: Capability Checklist Table 37: Capability Checklist table Manufacturer, model and revision Universal Flow, ME Transmitter, Rev1 Device type Transmitter HART revision Device Description available Number and type of sensors 2 internal Number and type of actuators Number and type of host side signals 1: 4 - 20mA analog Number of Device Variables Number of Dynamic Variables... -
Page 40: Vane/Piston Tx/Txl
6 Vane/Piston TX/TXL Installation and Operation Manual Series: LL, LP, LH, PI, SN, SM, SH, MN, MM, MH, SX and MX Nameplates and Product ID This manual applies to all vane/piston meters that have the designator “TX0,1,2,3,4 or 61” or “TXL0,1,3, 61”... - Page 41 Screw pipe into meter with flow going into port marked “IN”. Teflon tape or pipe dope PIPING: discouraged. Connect switch wires (for TX1,3 and 61 units) and/or open collector alarm and transmitter wires to the terminal strip as shown. Wire must be in accordance with all local and national codes. Wire size and insulation ratings should support actual loads.
- Page 42 A typical 4-20mA wiring diagram is shown below: Load Resistor vs. Power Supply Figure 33: 4-20 mA Wiring Diagram and Load Resistor vs. Power Supply diagram A guaranteed linear over-range is provided. Device malfunction can be indicated by the up-scale current of 24mA. Current values are shown in the table below.
-
Page 43: Set Low Flow Alarm
1. After the last digit is set, continue holding A2 until “SEt” is displayed. If you want to change the first digit again, do not hold A2. Momentarily press and release A2 and the first digit starts blinking again. 2. When finished recording the new setpoint (“SEt” is displayed), release A2. Release Figure 34: press and release A2 Note 1: Valid setpoint range is 0-100% of full-scale flow.
